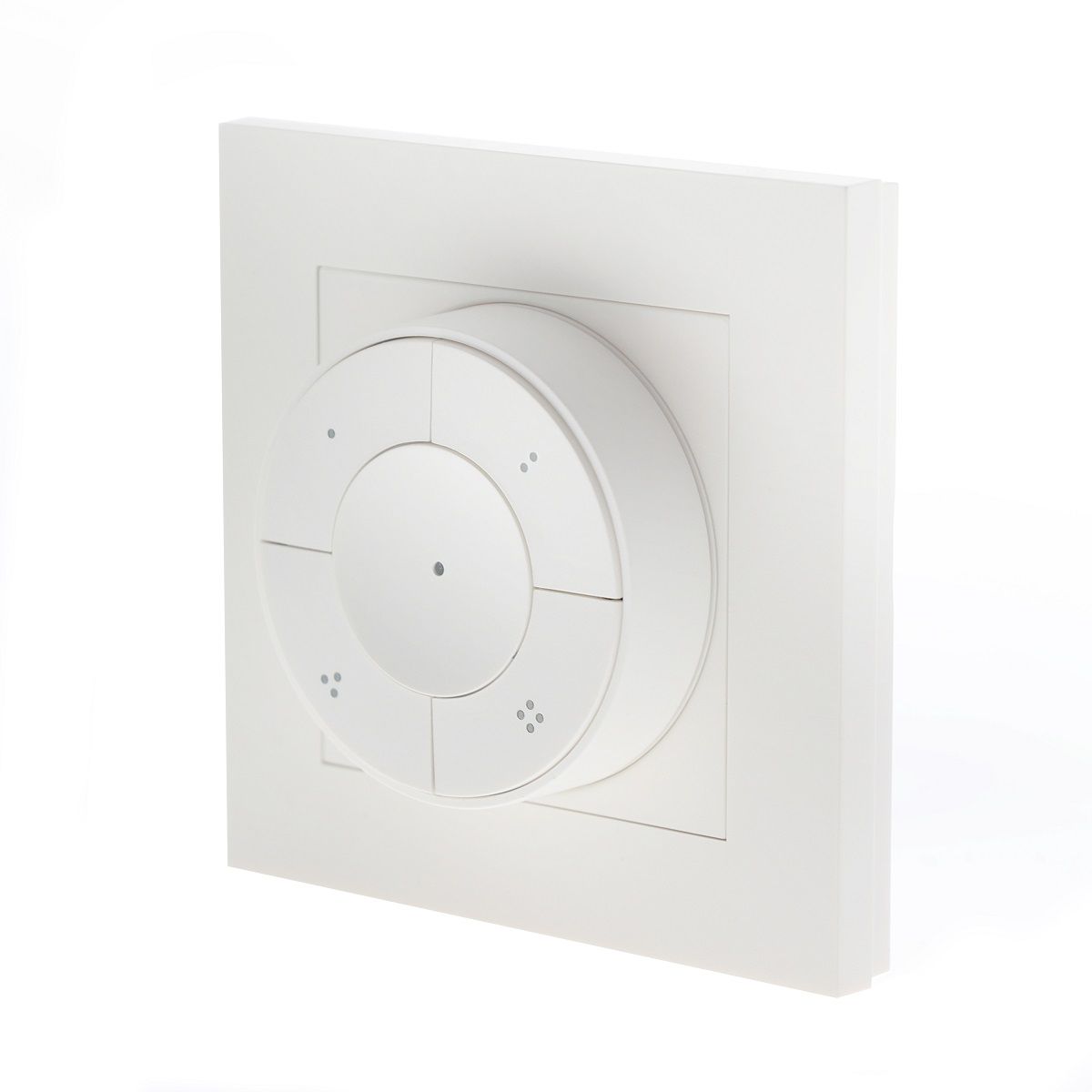

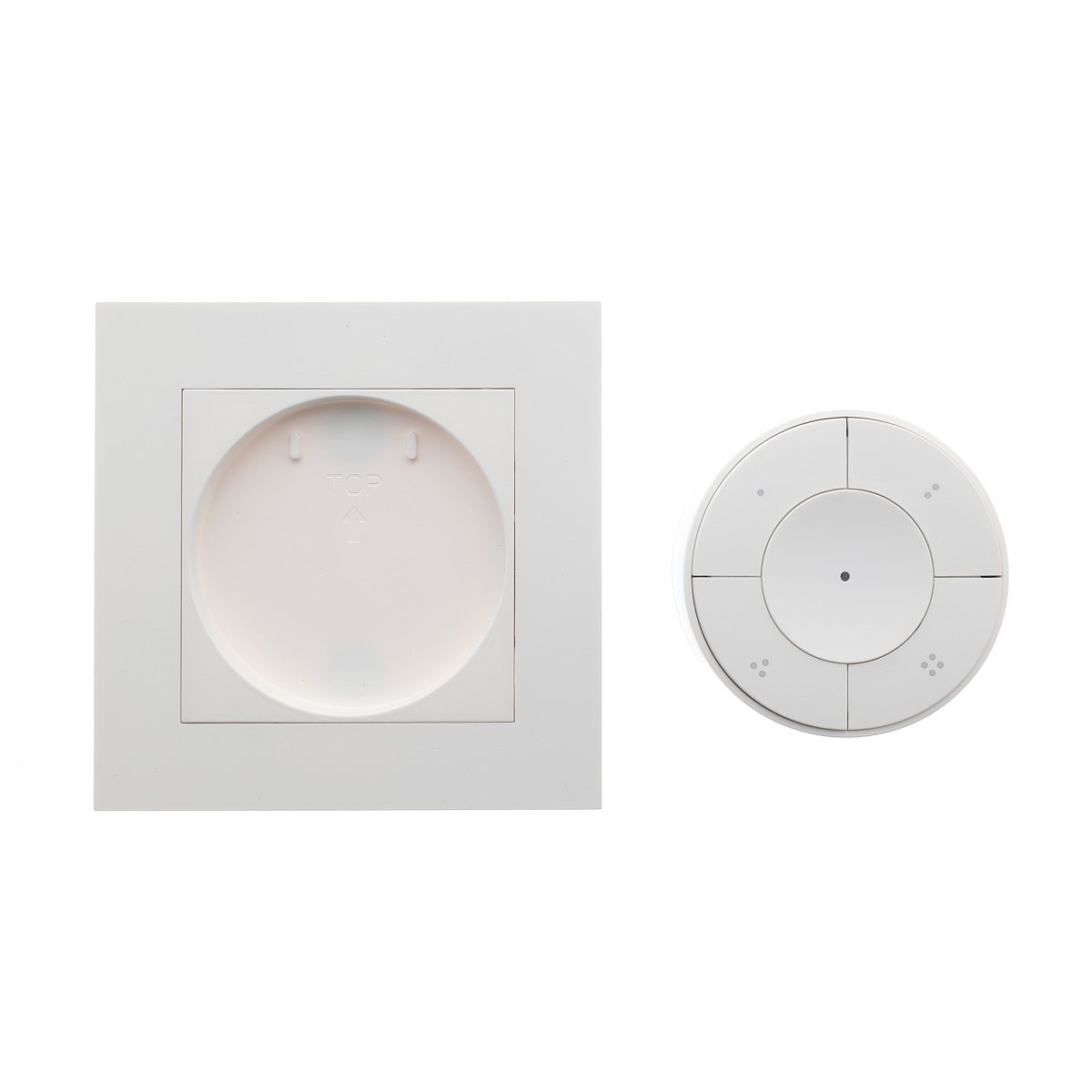

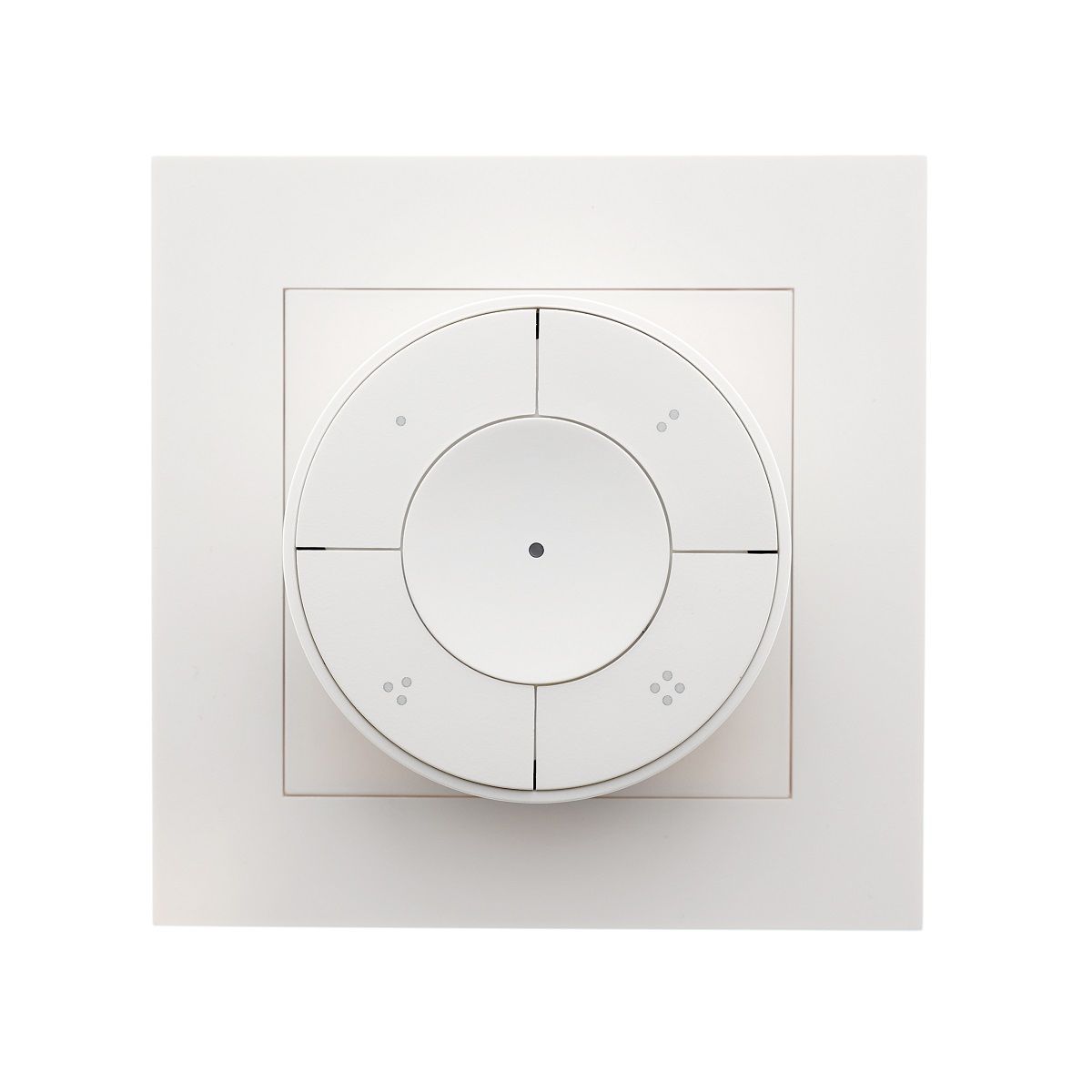

VaLO Zigbee series wireless button for controlling CCT lamps, i.e. dimming and stepless color temperature control with curtain controls. The button is battery operated (3V coin cell battery included). It can be installed in the desired location with the help of the 3M tape that comes in the package or by screwing. Remove the plastic protection from the battery before use.
You also need at least one receiver that the button controls. The button supports 4 different receivers!
As a receiver for 24V color temperature adjustable led strips, led spots and panels, e.g. https://ledstore.fi/24v-zigbee-himmennetava-cct-led-muuntaja-50w. Receiver-transformers are available with different powers from 30-200W, as well as just a CCT receiver for controlling a larger group up to 20A.
Contact us or come visit us if you need help choosing a product. We are happy to help with questions related to the control and dimming of LED lighting.
Are LedStore's VaLO Zigbee devices compatible with Zigbee devices from other brands?
Yes! In addition to LedStore's VaLO Zigbee hub, e.g. Devices compatible with the Philips Hue bridge work, you can use this button e.g.:
On Apple Home, IKEA TRÅDFRI, Samsung Smart Things, Google Home, Alexa and of course any other Zigbee product.
Zigbee pairings between devices?
We have gone through the pairings in blog articles that can be found on LedStore's blog under the names:
zigbee-lighting-control-take-over-part-1, which goes through pairing without a hub / bridge
zigbee-lighting-control-take-over-part-2, which goes through pairing to the hub / bridge (Philips Hue and Samsung Smart Things)
zigbee lighting control-takeover-part-3, where the application options are supplemented, and several types of lighting and sensors are taken into account.
cct-zigbee-sublighting-from the installer's point of view, where Zigbee and CCT lighting are reviewed from the installer's point of view
zigbee-part-5-pairing-tehdaan-nain, which has comprehensive different usage options with or without a hub.
the series gets new parts
>What the hell Zigbee?
Zigbee is a wireless RF system that utilizes mesh technology, where each device is both a receiver and a transmitter, thus ensuring the passage of commands even in larger objects. Zigbee devices can be freely connected between different manufacturers. This device supports the latest ZIGBEE 3.0 protocol.
With LedStore's VaLO Zigbee - wireless lighting control, you can control your lighting either with wall-mounted, wireless buttons or with your Android/iOS device, such as a tablet or phone. You can manage the lighting control of your entire home wirelessly if you want, but individual lamps can also be controlled perfectly.
Zigbee is the only complete LoT (Internet of Things) solution — from a mesh network to a common standard that allows smart devices to talk to each other. Thanks to the own mesh network created by the devices, the message always gets there, because each device is a receiver and a transmitter.
Zigbee is a standardized system to which you can connect any device belonging to the Zigbee alliance, and the certified product communicates seamlessly with other devices connected to the network. The alliance includes e.g. Google, Apple, IKEA, Amazon, Panasonic and Somfy.
Zigbee products are already in millions of homes around the world. Our devices support the latest Zigbee 3.0 standard and are backward compatible.

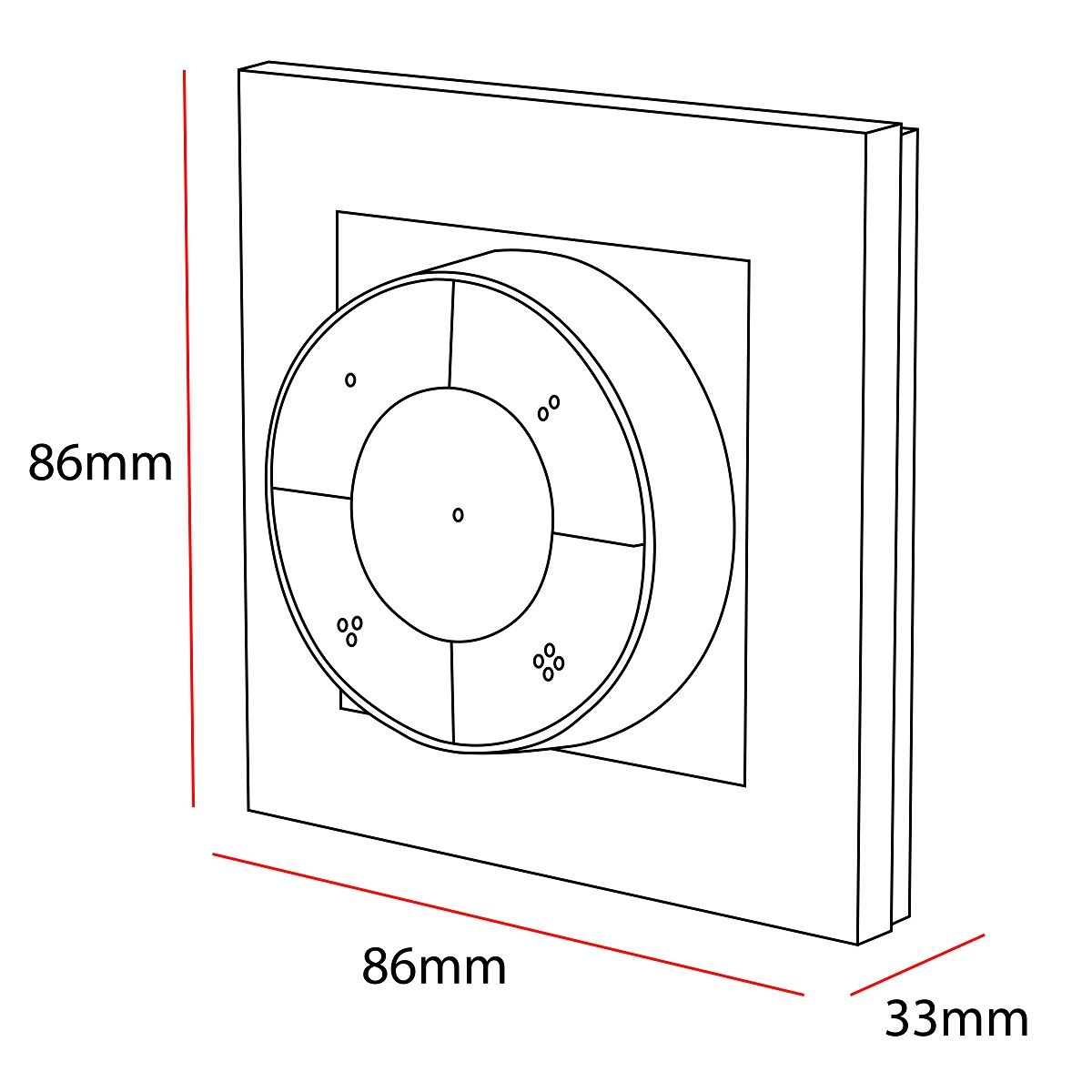

Dimensions
Length: 86mm
Width: 86mm
Depth: 33mm
CE, RoHS, SELV, IP21
