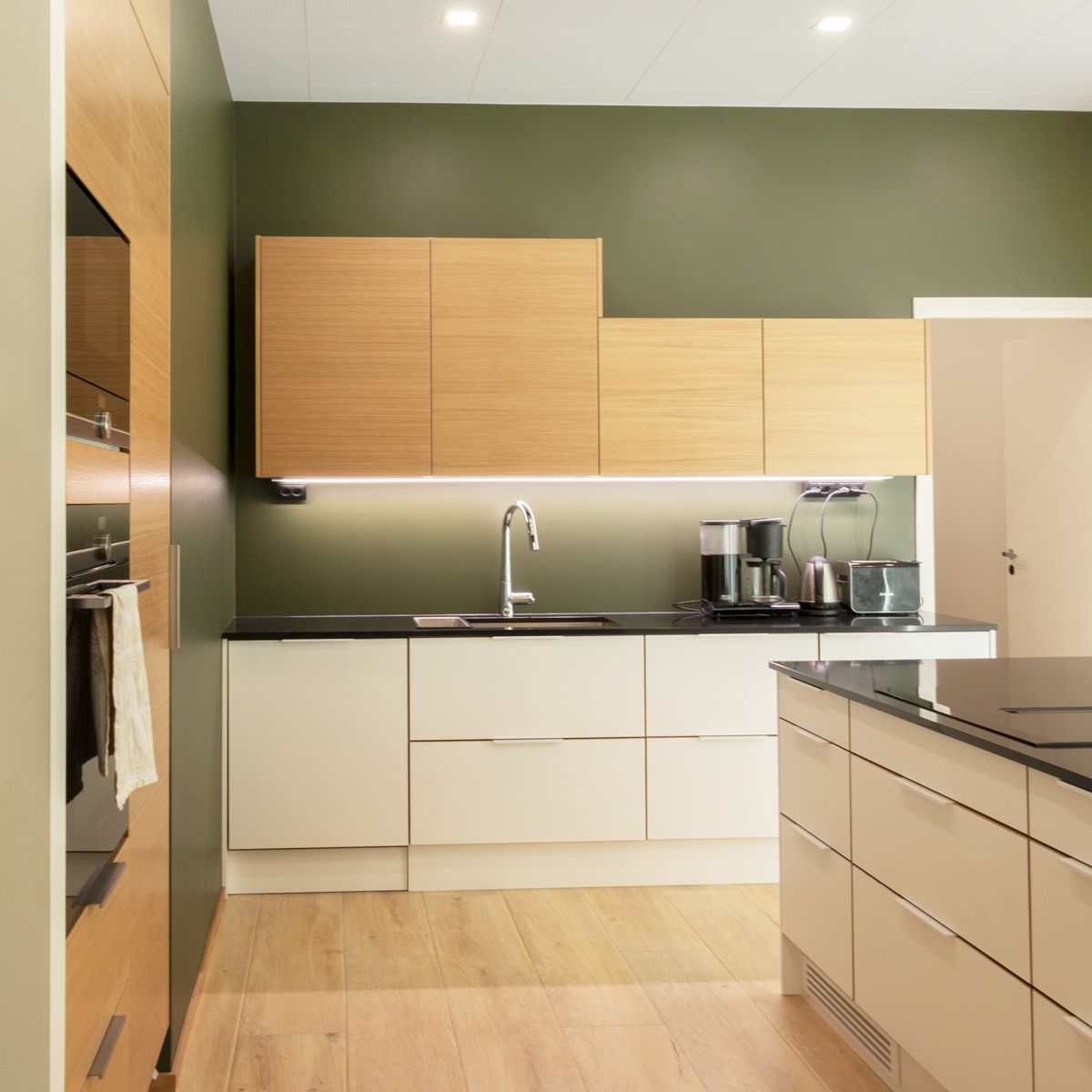

Kitchen with green walls, light wood-coloured upper cabinets, white lower drawers and black worktop. The intermediate space is illuminated by an LED strip light and two downlights in the ceiling. loading loading loading loading loading

LED SET for kitchen cabinet lighting - HELMI 3500K 17W/m

In stock at
SKU#: KITCHEN17-SET-3500-SMD

The LED strip for kitchen partitioning kit includes 5 meters of 17W/m LED strip (3500K), a suitable power supply, a VaLO series wireless push button (the button can be placed on the wall or kept detached), and a receiver to communicate between the power supply and the strip. The system is dimmable, making it easy to set the mood. This set also includes two surface-mounted aluminium profiles (length 2.5m per profile). The ribbon is not dotted, but the light comes in a steady stream, as there are a whopping 240 LED circuits per metre in this ribbon.

  • 2x2,5m aluminium profile
  • power supply included
  • RF wireless control
  • the most efficient 5 metre set for task lighting
  • Warm refractive white light 3500K
Read more
from € 287.55
Add a comment to the order

I subscribe at the same time

compatible products

Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
  • Product description

    LED SETTI for kitchen partition - HELMI 3500K 17W/m

    LED strip set for installation in the kitchen as a task light or on top of cabinets. Also suitable for the utility room! With the wireless dimmer you can easily control the LED strip.

    Includes

    The LED Ribbon for kitchen area set includes 5 meters of 17W/m LED ribbon (3500K), a suitable power supply, a VaLO series wireless push button (the button can be placed on the wall or kept detached), and a receiver to communicate between the power supply and the ribbon. The system is dimmable, making it easy to set the mood. This set also includes two surface-mounted aluminium profiles (length 2.5m per profile). The ribbon is not point-like, but the light comes in a steady stream, as there are a whopping 240 LED circuits per metre in this ribbon.

    About

    The luminous intensity of the 17/m ribbon is 1200 lumens per metre, i.e. efficient. The base colour of the strip is white and the 3M special adhesive tape ensures good adhesion. The LED strip is 3mm thick, i.e. very unobtrusive. With this set you can replace 2 58W fluorescent tubes!

    The HELMI 17W/m -led strip can be cut at 25mm intervals and joined by soldering. The HELMI 17W/m 3500K ribbon has a top colour rendering index of 96! With this ribbon, colours are reproduced as they should be.

    When dimmed, there may be some buzzing from the transformer. If the transformer is installed in a cabinet, for example, the buzzing is less likely to be a distraction. However, please bear this in mind when purchasing the product.

    Installation

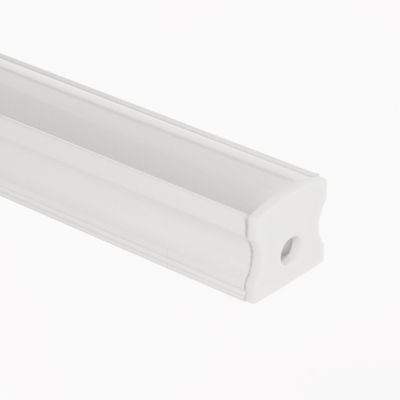

    The tape should be bonded to metal, such as an aluminium profile (included in the kit), to allow heat to dissipate away from the LED circuit. Proper cooling will prolong the life of the LED.

    With this led set you illuminate for example a 2,5m kitchen partition and install an indirect light on top of the cabinetry (2x2,5m). If you cut the strip and install it in a damp area, be sure to patch the open end with silicone. When you run two strips to the same transformer, you cannot use quick connectors, you have to cut the strip and connect it as wires (a basic thing for an electrician). With this setup, both pieces of ribbon light up at the same time.

    For installations longer than 10 meters, a supply from both ends prevents light fading and the tape burns equally brightly the whole way. A single transformer can be used for both ends if a thin wire is run alongside the profile. An electrician can do this kind of work.

    The receiver is mounted between the LED strip and the power supply. More detailed instructions on how to install the VaLO dimmer are included in the package.

    We are also happy to help with any questions you may have about the installation.

  • Further information
  • Reviews
  • FAQ
  • CRI

LED SETTI for kitchen partition - HELMI 3500K 17W/m

LED strip set for installation in the kitchen as a task light or on top of cabinets. Also suitable for the utility room! With the wireless dimmer you can easily control the LED strip.

Includes

The LED Ribbon for kitchen area set includes 5 meters of 17W/m LED ribbon (3500K), a suitable power supply, a VaLO series wireless push button (the button can be placed on the wall or kept detached), and a receiver to communicate between the power supply and the ribbon. The system is dimmable, making it easy to set the mood. This set also includes two surface-mounted aluminium profiles (length 2.5m per profile). The ribbon is not point-like, but the light comes in a steady stream, as there are a whopping 240 LED circuits per metre in this ribbon.

About

The luminous intensity of the 17/m ribbon is 1200 lumens per metre, i.e. efficient. The base colour of the strip is white and the 3M special adhesive tape ensures good adhesion. The LED strip is 3mm thick, i.e. very unobtrusive. With this set you can replace 2 58W fluorescent tubes!

The HELMI 17W/m -led strip can be cut at 25mm intervals and joined by soldering. The HELMI 17W/m 3500K ribbon has a top colour rendering index of 96! With this ribbon, colours are reproduced as they should be.

When dimmed, there may be some buzzing from the transformer. If the transformer is installed in a cabinet, for example, the buzzing is less likely to be a distraction. However, please bear this in mind when purchasing the product.

Installation

The tape should be bonded to metal, such as an aluminium profile (included in the kit), to allow heat to dissipate away from the LED circuit. Proper cooling will prolong the life of the LED.

With this led set you illuminate for example a 2,5m kitchen partition and install an indirect light on top of the cabinetry (2x2,5m). If you cut the strip and install it in a damp area, be sure to patch the open end with silicone. When you run two strips to the same transformer, you cannot use quick connectors, you have to cut the strip and connect it as wires (a basic thing for an electrician). With this setup, both pieces of ribbon light up at the same time.

For installations longer than 10 meters, a supply from both ends prevents light fading and the tape burns equally brightly the whole way. A single transformer can be used for both ends if a thin wire is run alongside the profile. An electrician can do this kind of work.

The receiver is mounted between the LED strip and the power supply. More detailed instructions on how to install the VaLO dimmer are included in the package.

We are also happy to help with any questions you may have about the installation.

  • Delivery status In stock at
  • Brand Ledstore
  • Breadcrumbs Home LED lights by areaInterior LED lightingKitchenLighting for kitchen under kitchen cabinet LED SET for kitchen cabinet lighting - HELMI 3500K 17W/m
  • Category Lighting for kitchen under kitchen cabinet
  • SKU KITCHEN17-SET-3500-SMD
  • Lumen 5000
  • Change Wireless dimmer included in the package
  • Size 6x17mm, set is 5m long, can be easily used as 2x2,5m
  • Wattage 85
  • Colour temperature (K) 3500
  • Light control One colour
  • Colour rendering (CRI ±3) 92
  • IP class IP21
  • Immennys Dimmable
  • Guarantee (year) 3 years
  • Life span 35000
  • Approval CE, RoHS
  • Designed in Finland No
New product review

Be the first to write a review!

By rating you will be entered into a prize draw for a €50 gift voucher.

Customer questions
  • Is the Led strip easy to cut?
  • Why do I need an aluminium mounting profile for LED strip?
  • Is it true that if I install an LED strip without a profile, its lifetime is easily only 1-2 years?
  • How do I make corners on an aluminium profile?
  • How to make long installations, up to 5 metres?
  • How are the led strips attached?
  • Does the led strip have the connecting wires ready?
  • What if I split the tape into several parts and some of the parts have no connectors? How do I connect the tapes to the transformer?
  • I am installing a led strip under the sink/shower/carport. Do I need an IP65 profile?
  • Can I install a profiled led strip under a drying cabinet?
  • What is the difference between 12V and 24V led strip?
  • What happens if I connect a 12V led strip to a 24V transformer or vice versa?
  • I only have old plug-in fluorescent tubes in my kitchen. How can I replace them with LED strip?
  • Can I install the led strips myself? Is it electrical work?
  • Does this strip accept a PWM dimmer?

WHAT IS CRI, THE COLOUR RENDERING INDEX

High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.

CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.


Colour rendering index

The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.

RA value

The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.



The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.

Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.


This measurement is from a 9W CCT Led spot

Read more on this topic:

Colour rendering of LEDs - What is the difference between CRI and Ra-value?
