5m LED strip HELMI, 4000K, 24V, 14,4W/m, IP65, CRI94

5m LED strip light HELMI, 4000K, 24V, 14,4W/m, IP65, CRI94

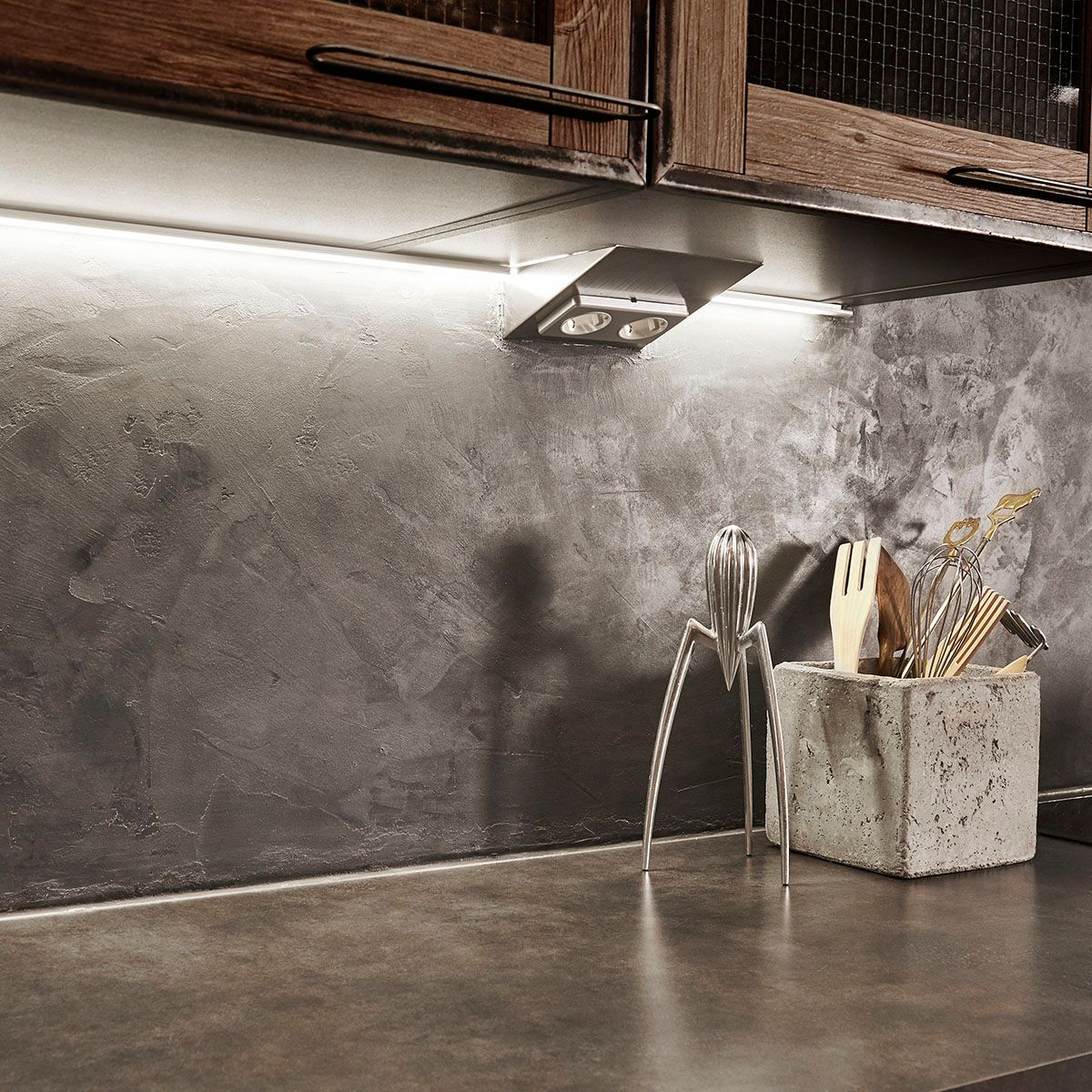

Our pearl LED strip has a luminous intensity of 15.4W/m and 120 LED circuits per metre. The reel contains 5 meters of LED strip 120 LED circuits per meter make the light uniform enough for indirect lighting and countertop lighting, for example. When mounted on a low profile (7mm) aluminium profile, the pointiness is only slightly noticeable. When indirectly illuminated through a wall, the light is uniform. This LED strip light 24V version is more resistant to long feeds without light loss than its sister product 12V 14,4 W/m.

Information

This led strip light is dimmable and waterproof to IP65 (non-yellowing, thin silicone surface). Our LED strip is easy to attach with the included 3M adhesive tape. This 15.4W/m LED strip is equivalent to the light output of a 120cm fluorescent tube, so you'll save a lot of electricity with this solution!

If you want an LED strip where the colour temperature of the light can be changed infinitely variable from the same strip, then choose the colour temperature adjustable CCT strip from our TUNNELMA series.

Excellent colour rendering

The CRI is a measure of how well an LED light reproduces colours as they should be. A high CRI value indicates that the luminaire reproduces a wide range of colours. The closer you get to 100, the more naturally colours are reproduced. This LED strip light has a CRI of up to 94, which ensures excellent colour rendering.

Installation

In addition to the LED strip, installation requires a power supply, an aluminium profile and operating switches.

The LED strip comes in a 5m roll and can be cut to size in increments of 5cm. The tape has clear markings to make cutting easier. We recommend soldering the strips together, as we have found that the quick connectors loosen over time and loosening causes the lights to flash. Both ends of the tape have pre-soldered connectors with DC plugs that can be used depending on the destination.

We recommend powering from both ends if the ribbon is more than 10 metres in a continuous length. This prevents light loss and provides an equally bright light from both ends. The LED strip should always be attached to an aluminium strip to allow excess heat to be conducted away from the LED circuitry. This extends the life of the LED strip and keeps the warranty valid. Aluminium profiles can be ordered from our online shop, where they are available in several different types.

LED strip 24V works well with solar power and boats that use 24VDC, then a separate power supply is not needed. In other cases, please order a suitable 24V power supply for the strip. The actual power of this ribbon is 15,4W/m, take into account when choosing the transformer.

Connecting plugless transformers is electrical work and requires adequate qualifications. We are happy to help with any installation questions.

Dimming

To dim the LED strip you can use either a traditional rotary wired dimmer or our VaLO RF series wireless dimmer. When using a conventional rotary dimmer, the transformer of the LED strip must be TRIAC dimmable. The strips can also be controlled by DALI systems. Wireless dimming is perfect for applications where there is no wall switch for the luminaire, but the luminaire is powered by a constant current.

In the case of a smart home, a Zigbee transformer and controllers for wireless control are chosen. In Zigbee transformers, the receiver is already built-in.

With the VaLO RF wireless solution, you simply install the receiver between the LED strip and the power supply. You can then control the strip with wireless switches from wherever you want. The wireless switch is powered by batteries, which are easily replaceable. You can also mount the switch on the wall if you wish, but it does not need a separate power supply.

Tested dimmers and test results can be found here.
