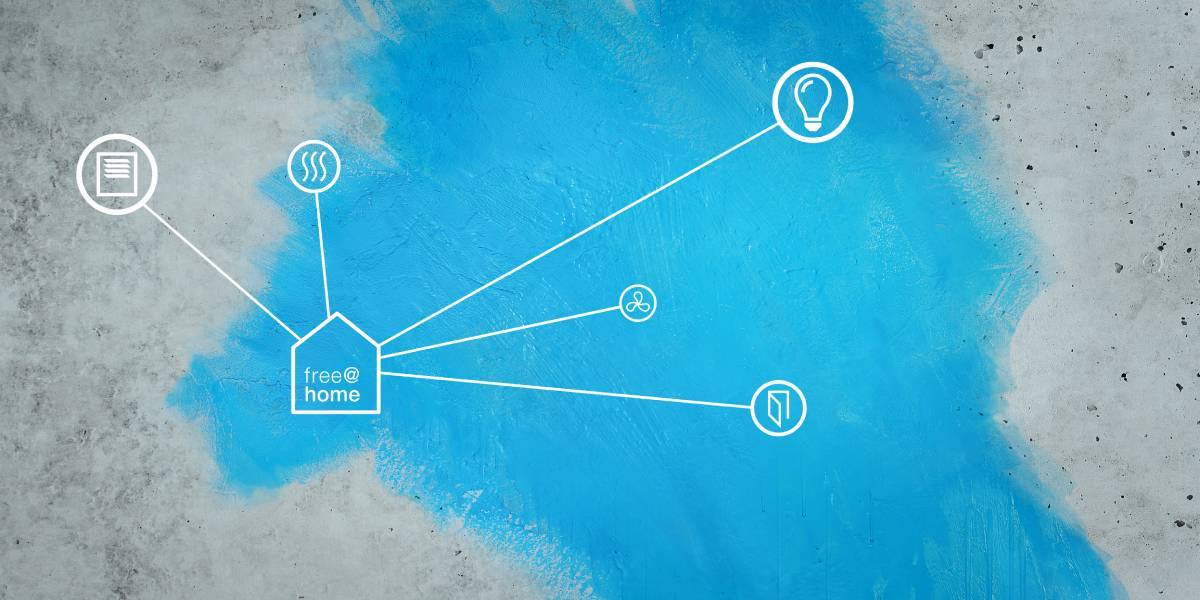

LedStore lights and ABB-free@home home automation system

Lighting is an essential part of a smart home. The timable and programmable lighting conditions in a smart home make daily life easier, and also play a big role in the comfort of the home. So are smart lights their own species? And what can home automation do to control lighting? These questions are answered in this article, which looks at LedStore lights and ABB free@home home automation.

How to choose the lights in your smart home?

Colour temperature adjustable and dimmable lights contribute to the experience of active and relaxation time. RGB colour changing programmes can be used to get a party going, or to create a specific mood for a movie night. Timers can also be used, for example, to make your home feel safer. In holiday mode, the lights can be set to work as if the occupants were at home. This way, an empty and dark house doesn't attract too much attention from outsiders. A very useful feature of free@home is the adjustment of indoor and outdoor lighting according to the length of the day, all year round.

Are LedStore lights compatible with free@home home automation?

Yes. True intelligence is provided by DALI transformers, and Zigbee transformers. All the lights connected to them are free@home compatible. The concept of smart lighting at LedStore covers (almost) all products in the range. In the simplest terms, the same lights can be selected for smart lighting as would be selected in a situation where there are no smart controls. In ABB-free@home home automation, the core of the intelligence of the lighting is in the ballast/driver or relay of the light. In simple terms, the drivers of the lights are connected to a programmable interface port, the System Access Point. This allows, for example, to program specific switch-on and switch-off times for the light using a computer or mobile device in the free@home interface. In addition to programming, the lights can also be operated using the wall-mounted buttons. The lighting is selected so that the type of light and the light driver/transformer are suitable for the desired application. For example, dimming and/or colour temperature (white light Kelvin) adjustment is available on a large number of LedStore lights. In addition, RGB or colour adjustable LED strips can be programmed in the smart home.

  The quality, style and usability of LedStore's lights have been carefully considered to ensure that every lighting need and situation can be realised according to the customer's needs. The smart lighting product range therefore includes, among others, versatile and multifunctional

• downlights, or spotlights
• led strip lighting
• led panels for surface or flush mounting, and
• E27 and E14 spiral bulbs.

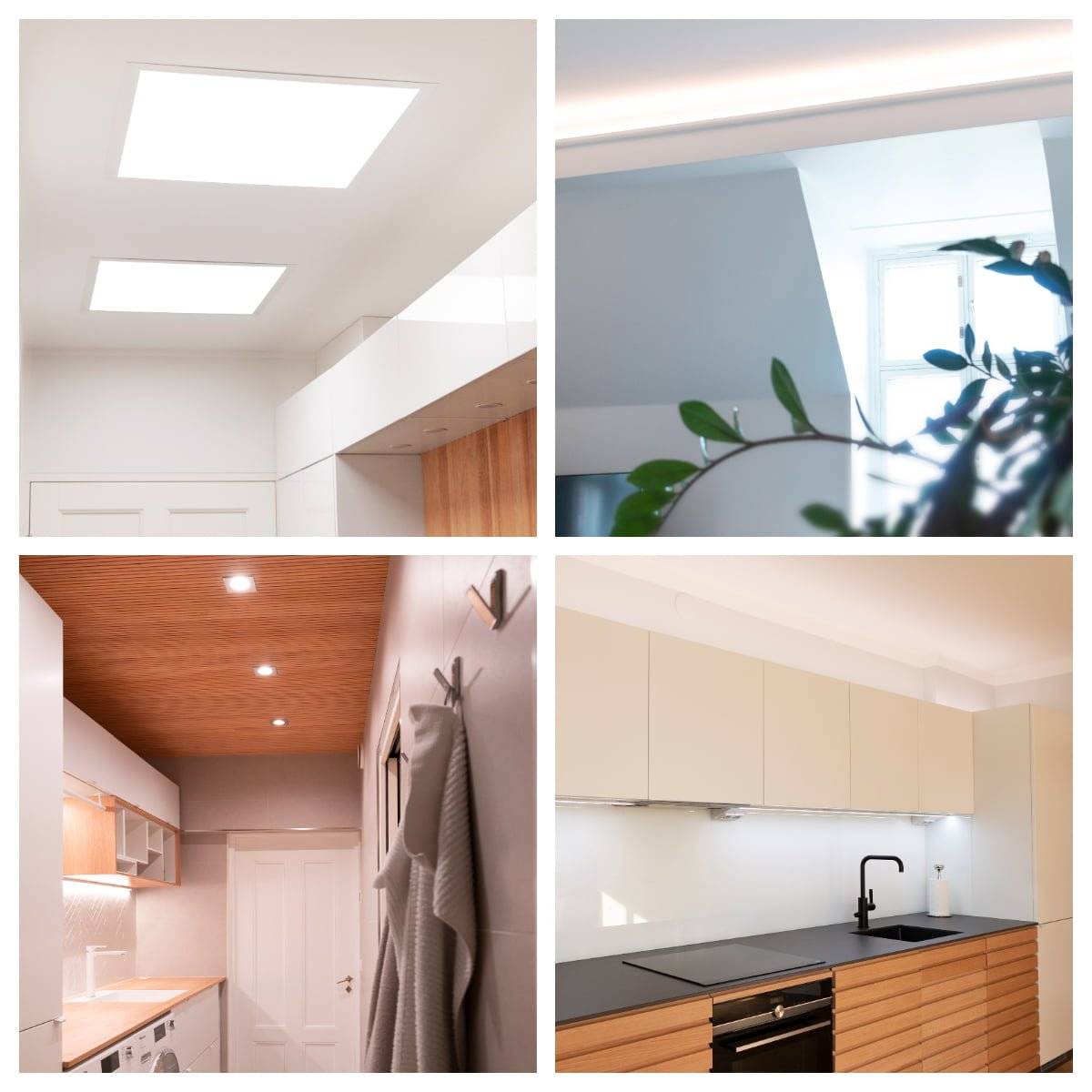

They are suitable for all areas of the home: hallways, bathrooms, living rooms, bedrooms, kitchens, storage rooms, garages and terraces.

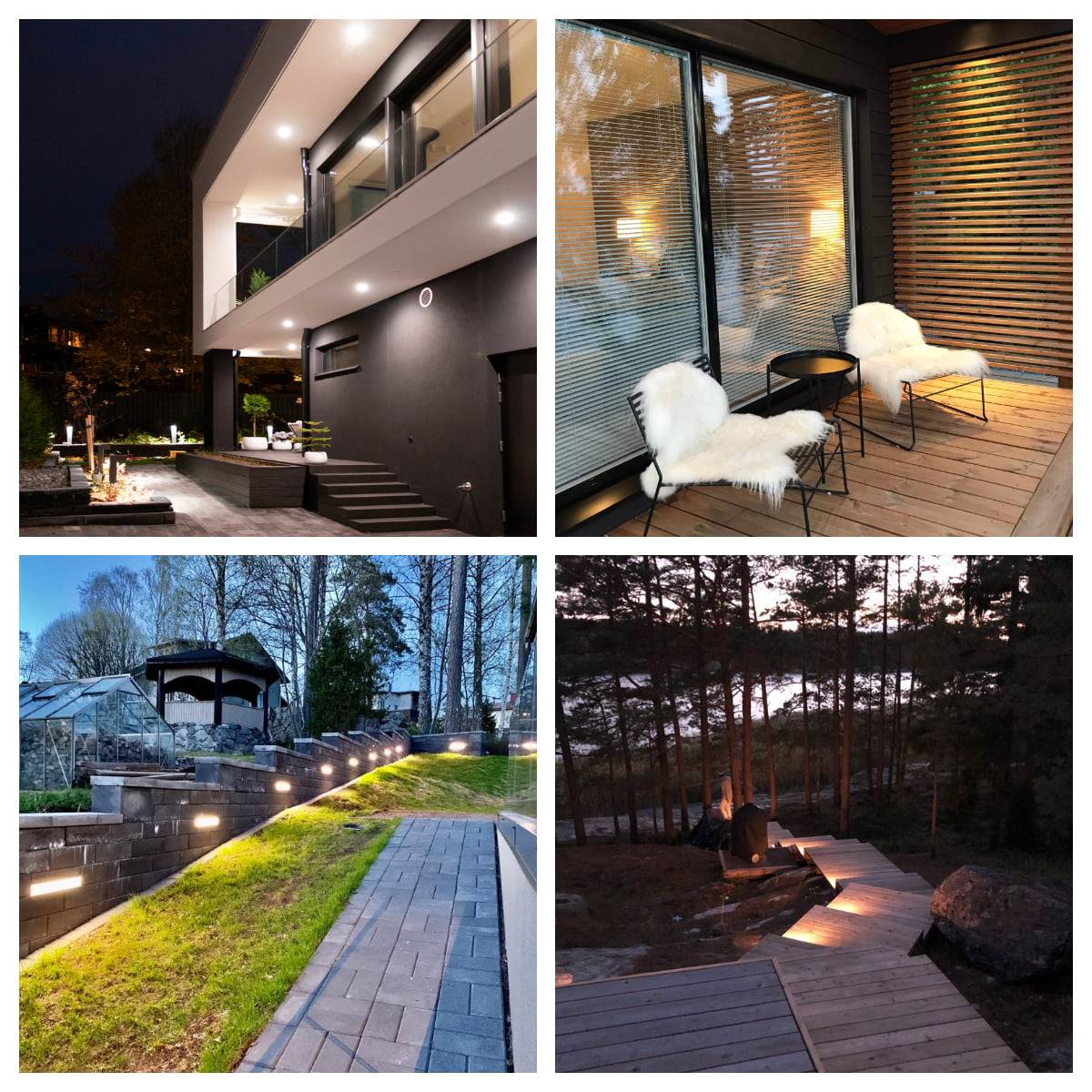

There are also many options for outdoor lighting, especially using LED strip and a wide range of aluminium profiles, to make outdoor lighting part of the smart home. Yard bollards and wall lights can also be integrated into a smart home.

What does ABB-free@home home automation require from lighting design?

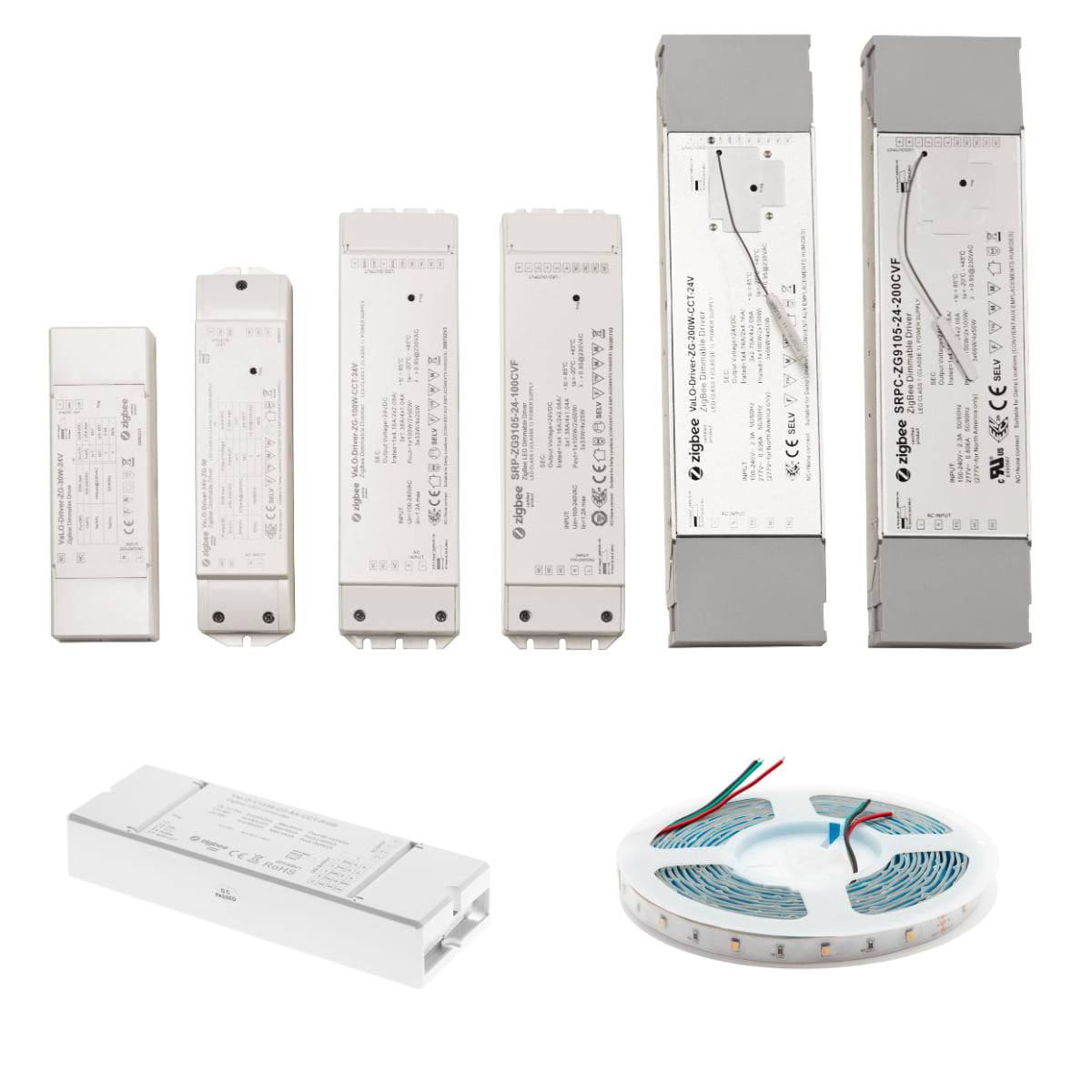

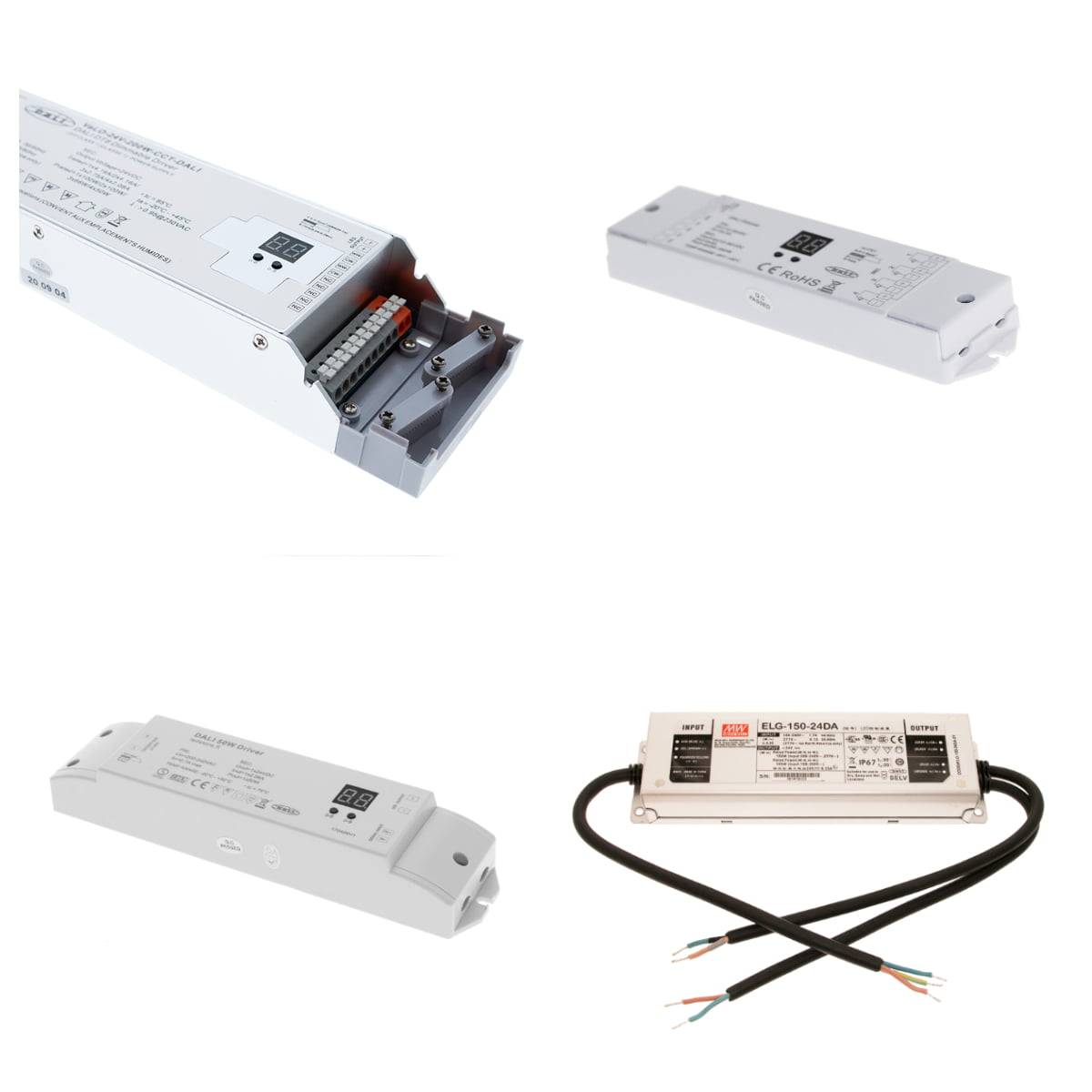

Led lights offer a wide range of options for home and garden lighting. When home automation is introduced, there are numerous benefits to lighting control. LedStore's lighting design takes into account the type of control or automation system the lights will be used in. The purpose and use of the lights is then considered in advance. For example, the need for dimming and colour temperature control is considered together with the customer and the designer specifies the appropriate lights and control devices. The most versatile control options are provided by DALI2 and Zigbee protocol compatible ballasts/drivers for free@home. Zigbee compatible wireless controllers are also available from LedStore, if required. DALI2, as well as Zigbee allow CCT, RGBW and RGB+CCT options. With DALI2 ballast /drivers installations are made by wiring from the ballast to the system access point, the System Access Point. Ledstore's DT8 transformers are ABB tested and functional! Bus cabling to be taken into account during installation, i.e. 2-pole low-current cabling is carried from the System Access Point to the transformers along with the mains power. Often the cable is 5 x 1,5mm2 MMJ In the Zigbee option, the control of the lights is integrated via the Philips HUE bridge to free@home. In this option, the HUE bridge talks to the free@home System Access Point and the lights appear in the application for direct programming. The drivers only need mains power, as control commands go through the Zigbee wireless Mesh network. During the lighting design phase, we also discuss with the client which method is better to use.





What are the benefits of home automation and connected lights?

free@home and LedStore lights are a good match for home automation for four reasons.   Both are:

1. user-friendly
2. secure
3. energy efficient and
4. make everyday life easier.

User-friendliness makes the system and the lights connected to it pleasant and simple to use. The high quality and adaptable light makes it easy to access different lighting situations and create sensory-friendly spaces. The high quality design takes safety into account, including the communication and electrical systems, so that the equipment can be operated reliably and without disturbance. Neither home automation nor LED lighting is a waste of natural resources, as the energy consumption of the equipment has been minimised and taken into account from different perspectives. In addition, the energy consumption of the whole home can be reduced by adjusting, for example, the amount and level of lighting according to usage needs. Overall, everyday life is made easier when automation ensures the right levels and amounts of lighting. Using lighting is effortless and simple. Here is also an older article on home automation: dimming Led lights in automation systems
