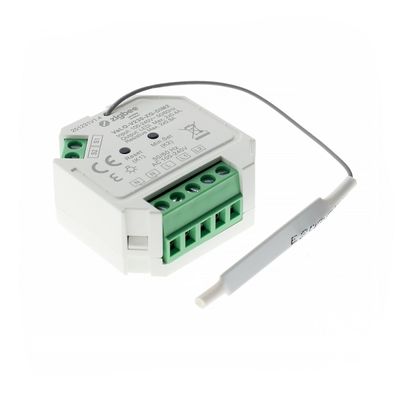

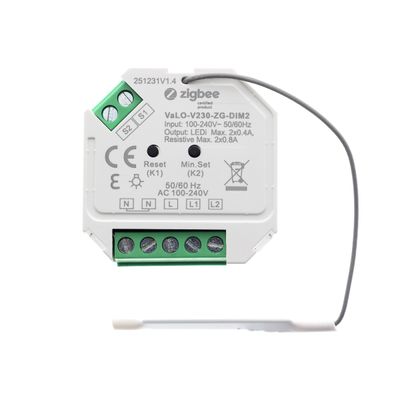

ZigBee Dual-Channel Phase Dimmer

ZigBee 2 channel AC phase dimmer based on the latest ZigBee 3.0 protocol. 100-240VAC wide input and output voltage. Supports resistive, capacitive or inductive loads.

Power handling

2-channel output, 2 x 100 W. Allows on/off control of switched light source and brightness control

Pairing and Touchlink

Supports Touchlink commissioning. Can be connected directly to a compatible ZigBee remote control via Touchlink without a coordinator.

Touchlink enabled always pairs 2-4 groups in the controller to 1 group! When pairing to the first group, it automatically allocates also 2 groups on the remote control/pushbutton. If the pairing is done for the 2,3,4 positions of the controller, it will pair ONLY from the receiver of the first channel.

Compatible with common ZigBee gateways (HUB).

Installation

The receiver is installed before the transformer, i.e. control is done from the primary side. All our Zigbee devices have an internal memory in case of power failures. The light returns to the last used state. Requires zero and phase (L+N)

Small size, easy to install in a standard 86x86 mm junction box.

PUSHDIM

The receiver also has connectors for PUSHDIM control, so with this receiver you can also turn your standard 2 part push button (add return springs to the button) into a PUSHDIM button
