Wireless LED dimmer - VaLO Zigbee, RGBW control button user manual LedStore.fi Black and white LED lighting controller with multiple slots and apertures, ideal for effective control of advanced lighting settings. loading loading
Product information Product information

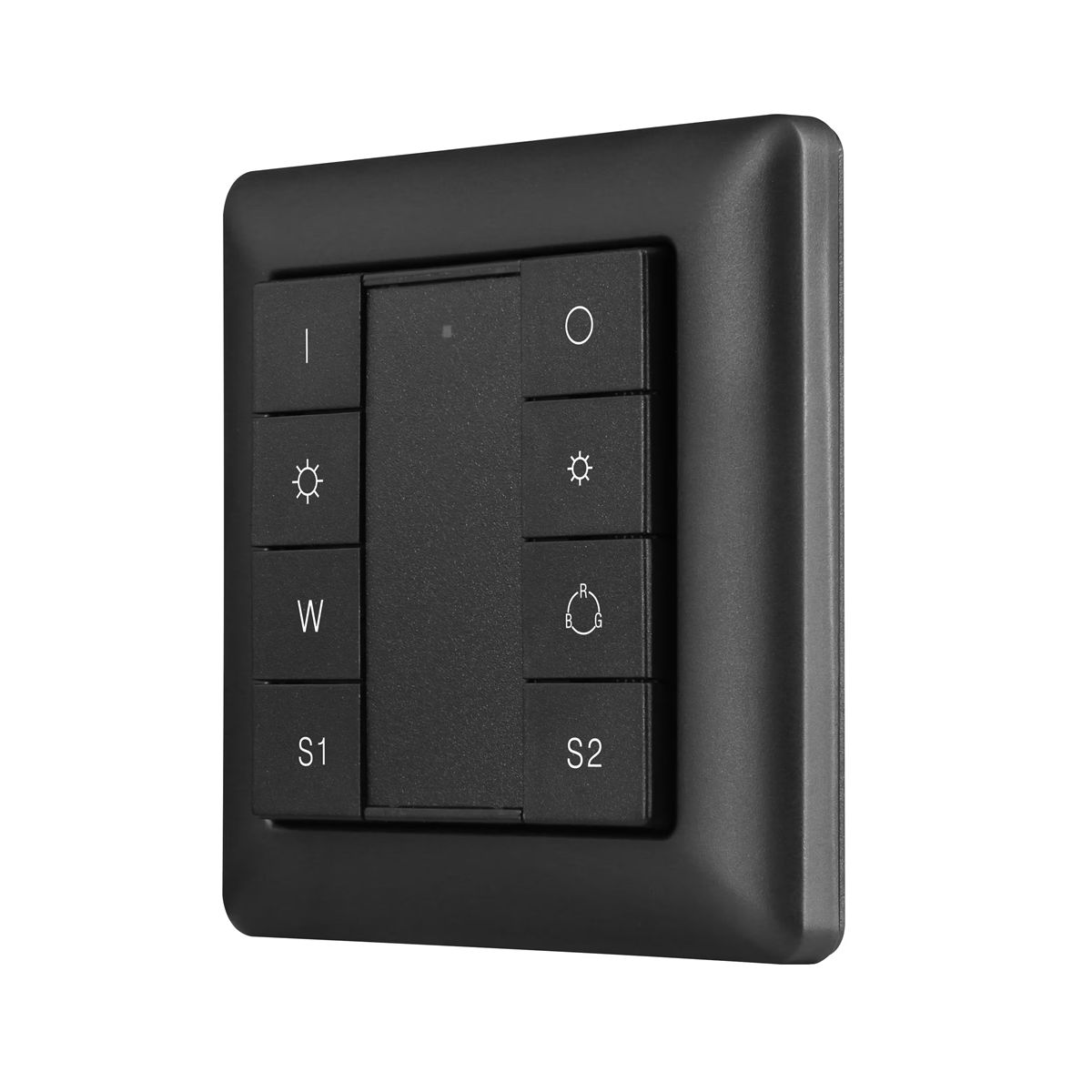

VaLO Zigbee — LED dimmer, RGBW-button, wireless black

In stock at 69 pcs
SKU#: VaLO-P1RGB-ZG-B

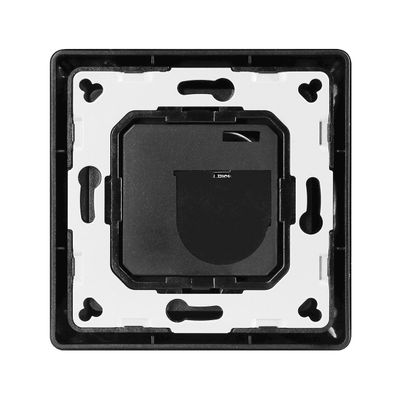

Black VaLO Zigbee series wireless button for dimming a group of RGBW luminaires. The button is battery operated (3V button battery included). It can be mounted in the desired location using the 3M tape included in the package or by screwing. Remove the plastic cover from the battery before use.

You will also need at least one RGB receiver controlled by the button. In the default situation (without intelligent control), one receiver is connected to one button. Control of the desired group of luminaires can be connected to the smart controller, allowing programming and timing of the group of luminaires. In smart control mode, a hub/bridge connected to the router is also required to which the pushbutton is paired.

  • 2 memory slots
  • battery CR2450&lt
  • RGBW adjustment and dimming
  • Sticker or screw fixing
  • suitable for EXXACT, Gira, JUNG, frames
€ 90.10
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days

  • Black VaLO Zigbee series wireless button for dimming a group of RGBW luminaires. The button is battery operated (3V button battery included). It can be mounted in the desired location using the 3M adhesive tape included in the package or by screwing. Remove the plastic cover from the battery before use.

    You will also need at least one receiver controlled by a button. By default, one receiver is connected to one button.

    When controlled by a Zigbee hub and mobile app, multiple receivers can be connected to the button, e.g. receivers controlling three different colour temperature adjustable LED strips. Connected to a single button, all three are controlled at the same time. Similarly, several buttons can be connected to control a single group of lights. LedStore's Zigbee hub and the Azoula Smart app are the most straightforward interfaces for this button, as the button appears as a device in the app under Switches

    a 100W RGBW converter is suitable as a receiver for 24V RGB led strips. Receiver transformers are available in different power ratings from 50 to 200W, as well as a simple receiver for controlling a larger group up to 20A, which is connected between the led strip and the transformer.

    Button functions:

    • On/Off
    • on/Off, dimming up/down
    • up/down, colour change, white light adjustment
    • 2 memory slots for favourite settings

    Contact us or drop by if you need help with your product selection. We are happy to help with any questions you may have about LED lighting control and dimming.

    The button has a black bezel, but the 55 mm centre also fits the following bezel:

    BERKER: S1, B1, B3, B7 Glass
    GIRA: Standard55, E2, Event, Espirit
    JUNG: A500, APlus
    MERTEN: M-Smart, M-Arc, M-Plan
    SCHNEIDER: EXXACT

    Are LedStore's VaLO Zigbee devices compatible with other brands of Zigbee devices?

    Yes! In addition to the LedStore VaLO Zigbee hub, devices such as the Philips Hue bridge will work, you can use this button for example:

    Apple Home, IKEA TRÅDFRI, Samsung Smart Things, Google Home, Alexa and of course any other Zigbee product.

    Zigbee pairing between devices?

    We've gone through the pairings in blog articles that can be found on the LedStore blog under the names:

    • zigbee-lighting-control-haltuun-part-1, where we go through how to pair without a hub/bridge
    • zigbee-lighting-control-haltuun-part-2, which walks through pairing with a hub/bridge (Philips Hue and Samsung Smart Things)
    • zigbee-lighting-control-haltuun-part-3, which completes the application options, taking into account multiple types of luminaires and sensors.
    • cct-zigbee-under-lighting-from-the-installer's-eye-view, discussing Zigbee and CCT lighting from an installer's perspective
    • zigbee-part-5-pairing-with-connectivity-only, with a comprehensive overview of the different deployment options with or without a hub.
    • series gets new parts

    What the heck is Zigbee?

    Zigbee is a wireless RF system using mesh technology, where each device is both a receiver and a transmitter, ensuring that commands get through to larger sites. Zigbee devices can be freely interconnected between different manufacturers. This device supports the latest ZIGBEE 3.0 protocol.

    With LedStore's VaLO Zigbee wireless lighting control, you can control your lighting either with wall-mounted wireless buttons or with your Android/iOS device such as a tablet or phone. You can control the lighting of your entire home wirelessly if you wish, but you can also control individual lights.
    Zigbee is the only complete IoT (Internet of Things) solution - from a mesh network to a universal standard that allows smart devices to talk to each other. Thanks to the dedicated mesh network created by the devices, the message always reaches its destination, as each device is a receiver and a transmitter.

    Zigbee is a standardised system to which you can connect any device in the Zigbee alliance and the certified product will seamlessly communicate with other devices connected to the network. The alliance includes Google, Apple, IKEA, Amazon, Panasonic and Somfy.
    Zigbee products are already in millions of homes around the world. Our devices support the latest Zigbee 3.0 standard and are backwards compatible.

    Dimensions

    Length: 86mm
    Width: 86mm
    Height: 18mm

    CE, RoHS, SELV, IP21

    Our services

    Please contact us if you need ready-to-install LED strip assemblies with controls. We serve custom-made orders at LedStore's LedShop.

Black VaLO Zigbee series wireless button for dimming a group of RGBW luminaires. The button is battery operated (3V button battery included). It can be mounted in the desired location using the 3M adhesive tape included in the package or by screwing. Remove the plastic cover from the battery before use.

You will also need at least one receiver controlled by a button. By default, one receiver is connected to one button.

When controlled by a Zigbee hub and mobile app, multiple receivers can be connected to the button, e.g. receivers controlling three different colour temperature adjustable LED strips. Connected to a single button, all three are controlled at the same time. Similarly, several buttons can be connected to control a single group of lights. LedStore's Zigbee hub and the Azoula Smart app are the most straightforward interfaces for this button, as the button appears as a device in the app under Switches

a 100W RGBW converter is suitable as a receiver for 24V RGB led strips. Receiver transformers are available in different power ratings from 50 to 200W, as well as a simple receiver for controlling a larger group up to 20A, which is connected between the led strip and the transformer.

Button functions:

  • On/Off
  • on/Off, dimming up/down
  • up/down, colour change, white light adjustment
  • 2 memory slots for favourite settings

Contact us or drop by if you need help with your product selection. We are happy to help with any questions you may have about LED lighting control and dimming.

The button has a black bezel, but the 55 mm centre also fits the following bezel:

BERKER: S1, B1, B3, B7 Glass
GIRA: Standard55, E2, Event, Espirit
JUNG: A500, APlus
MERTEN: M-Smart, M-Arc, M-Plan
SCHNEIDER: EXXACT

Are LedStore's VaLO Zigbee devices compatible with other brands of Zigbee devices?

Yes! In addition to the LedStore VaLO Zigbee hub, devices such as the Philips Hue bridge will work, you can use this button for example:

Apple Home, IKEA TRÅDFRI, Samsung Smart Things, Google Home, Alexa and of course any other Zigbee product.

Zigbee pairing between devices?

We've gone through the pairings in blog articles that can be found on the LedStore blog under the names:

  • zigbee-lighting-control-haltuun-part-1, where we go through how to pair without a hub/bridge
  • zigbee-lighting-control-haltuun-part-2, which walks through pairing with a hub/bridge (Philips Hue and Samsung Smart Things)
  • zigbee-lighting-control-haltuun-part-3, which completes the application options, taking into account multiple types of luminaires and sensors.
  • cct-zigbee-under-lighting-from-the-installer's-eye-view, discussing Zigbee and CCT lighting from an installer's perspective
  • zigbee-part-5-pairing-with-connectivity-only, with a comprehensive overview of the different deployment options with or without a hub.
  • series gets new parts

What the heck is Zigbee?

Zigbee is a wireless RF system using mesh technology, where each device is both a receiver and a transmitter, ensuring that commands get through to larger sites. Zigbee devices can be freely interconnected between different manufacturers. This device supports the latest ZIGBEE 3.0 protocol.

With LedStore's VaLO Zigbee wireless lighting control, you can control your lighting either with wall-mounted wireless buttons or with your Android/iOS device such as a tablet or phone. You can control the lighting of your entire home wirelessly if you wish, but you can also control individual lights.
Zigbee is the only complete IoT (Internet of Things) solution - from a mesh network to a universal standard that allows smart devices to talk to each other. Thanks to the dedicated mesh network created by the devices, the message always reaches its destination, as each device is a receiver and a transmitter.

Zigbee is a standardised system to which you can connect any device in the Zigbee alliance and the certified product will seamlessly communicate with other devices connected to the network. The alliance includes Google, Apple, IKEA, Amazon, Panasonic and Somfy.
Zigbee products are already in millions of homes around the world. Our devices support the latest Zigbee 3.0 standard and are backwards compatible.

Dimensions

Length: 86mm
Width: 86mm
Height: 18mm

CE, RoHS, SELV, IP21

Our services

Please contact us if you need ready-to-install LED strip assemblies with controls. We serve custom-made orders at LedStore's LedShop.

  • Delivery status In Stock
  • Brand Ledstore
  • Breadcrumbs Home Lighting controlZigbee wireless systemVaLO Zigbee dimmers VaLO Zigbee — LED dimmer, RGBW-button, wireless black
  • Category VaLO Zigbee dimmers
  • SKU VaLO-P1RGB-ZG-B
  • Wireless VaLO Zigbee
  • Direction Yhteen suuntaan
  • Size 86x86x27mm
  • Light control 175
  • IP class IP21
  • Colour Black
  • Guarantee (year) 5 years
  • Approval CE, RoHS
New product review

Be the first to write a review!

By rating you will be entered into a prize draw for a €50 gift voucher.

Customer questions
No questions yet.

WHAT IS CRI, THE COLOUR RENDERING INDEX

High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.

CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.


Colour rendering index

The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.

RA value

The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.



The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.

Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.


This measurement is from a 9W CCT Led spot
