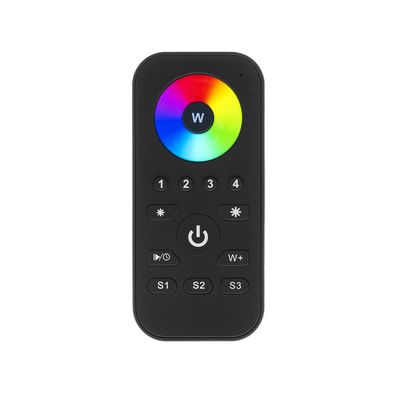

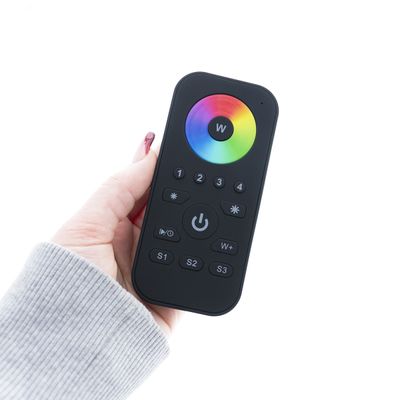

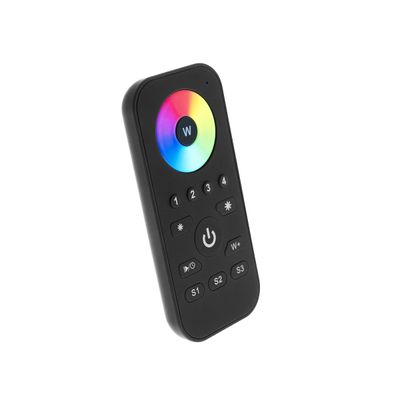

VaLO Zigbee — LED dimmer for 4 groups of RGBW lights, remote controller

Zigbee remote control for controlling four RGBW (Red, Green, Blue, White) LED luminaire groups. Suitable for controlling LED strip lights, for example. Functions include on/off and continuous dimming, as well as colour temperature control. The remote control is battery operated (3xAAA finger battery not included). The remote control comes with a bracket that can be mounted on the wall, for example. Supplied with double-sided tape and screws. The remote control attaches magnetically to the stand. To get the remote to control your lighting, you will also need RGBW receivers, or receivers containing Zigbee transformers for groups of luminaires.

• All groups turn on and off at once with an ON/OFF button.
• Stepless colour wheel to adjust the colours
• Use buttons 1-4 to select the desired group.
• 3 storage locations for your favourite settings (S1, S2, S3)
• Press and hold S to save specific colour and brightness settings. To use, press once briefly.
• Separate buttons for dimming and brightness.
• Press Play/Pause I> to start the pre-programmed modes.
• Dedicated button for white light (W+) on/off. When white light is on, it deepens or lightens the colour tone.

Example of use: a bedroom with three RGBW LED strips: on two walls at the ceiling and under the bed. If you want to control all of them so that they can be switched on and off separately, you will need to buy separate receivers for each group, i.e. 3 RGB receivers/transformers (i.e. separate for each LED strip). After installation, the receivers are paired to the desired button (buttons 1-3). You can also add an RGB strip to the group afterwards in slot 4.

If you want to add intelligence, e.g. to program and schedule lights, you need to have a Zigbee hub and an app, such as LedStore's Zigbee hub and Azoula Smart app, which are the most straightforward interfaces for this button, as the button will appear as a device in the app under Switches.

If you have colour temperature adjustable (white light hue, Kelvin, warm white to cool white) led strips, led spots or led panels, the CCT controller is suitable as a remote control: https://ledstore.fi/langaton-led-himmennin-valo-zigbee-4-ryhman-cct-ohjaussaadin. The transformer (with built-in receiver) is then suitable e.g. https://ledstore.fi/24v-zigbee-himmennettava-cct-led-muuntaja-50w.

Please contact us or drop by if you need help with product selection. We will be happy to help you with any questions you may have about LED lighting control and dimming.

Are LedStore's VaLO Zigbee devices compatible with other brands of Zigbee devices?

Yes! In addition to the LedStore VaLO Zigbee hub, devices such as Philips Hue bridge will work, you can use this button to:

Apple Home, IKEA TRÅDFRI, Samsung Smart Things, Google Home, Alexa and of course any other Zigbee product.

Zigbee pairing between devices?

We've gone through the pairings in blog articles that can be found on the LedStore blog under the names:

• zigbee-lighting-control-haltuun-part-1, where we go through how to pair without a hub/bridge
• zigbee-lighting-control-haltuun-part-2, which walks through pairing with a hub/bridge (Philips Hue and Samsung Smart Things)
• zigbee-lighting-control-haltuun-part-3, which completes the application options, taking into account multiple types of luminaires and sensors.
• cct-zigbee-under-lighting-from-the-installer's-eye-view, discussing Zigbee and CCT lighting from an installer's perspective
• zigbee-part-5-pairing-with-connectivity-only, with a comprehensive overview of the different deployment options with or without a hub.
• series gets new parts

What the heck is Zigbee?

Zigbee is a wireless RF system using mesh technology, where each device is both a receiver and a transmitter, ensuring that commands get through to larger sites. Zigbee devices can be freely interconnected between different manufacturers. This device supports the latest ZIGBEE 3.0 protocol.

With LedStore's VaLO Zigbee wireless lighting control, you can control your lighting either with wall-mounted wireless buttons or with your Android/iOS device such as a tablet or phone. You can control the lighting of your entire home wirelessly if you wish, but you can also control individual lights.
Zigbee is the only complete IoT (Internet of Things) solution - from a mesh network to a universal standard that allows smart devices to talk to each other. Thanks to the dedicated mesh network created by the devices, the message always reaches its destination, as each device is a receiver and a transmitter.

Zigbee is a standardised system to which you can connect any device in the Zigbee alliance and the certified product will seamlessly communicate with other devices connected to the network. The alliance includes Google, Apple, IKEA, Amazon, Panasonic and Somfy.
Zigbee products are already in millions of homes around the world. Our devices support the latest Zigbee 3.0 standard and are backwards compatible.
