VaLO Zigbee — LED dimmer for 4 groups of CCT lights, remote controller, black

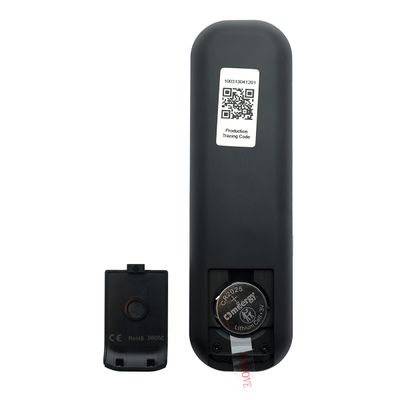

Zigbee remote control for controlling four groups of CCT-led luminaires. Suitable for controlling LED strips, spots, panels, etc. Functions include on/off and stepless dimming as well as colour temperature control. The remote control is battery operated (1 x CR2025, included). The remote control comes with a bracket that can be mounted on the wall, for example. Supplied with double-sided tape and screws. The remote control attaches magnetically to the stand. To get the remote to control your lighting, you will also need CCT receivers, or receivers containing Zigbee transformers for groups of luminaires.

• All groups turn on and off at once with an ON/OFF button
• Stepless colour temperature knobs to adjust the colour temperature of the white colour
• Stepless brightness control knobs
• Use buttons 1-4 to select the desired group, and turn them on and off
• 2 storage locations for your favourite settings (S1, S2)
• By pressing S, you can store specific colour temperature and brightness settings by pressing and holding and then retrieve the settings by pressing once briefly.
• 4 easy presets for brightness control (25%, 50%, 75%, 100%)

Example of four application groups: in the kitchen, there are CCT-led strips above the cabinet and on two worktops, plus CCT-led panels on the ceiling. If you want to control all of them so that they can be switched on and off separately, you will need to purchase separate receivers for each group, i.e. 4 CCT/RGB receivers or transformers with a receiver (i.e. separate for each led strip and separate for each group of panels). After installation, the receivers are paired to the desired button (group numbers 1-4). You can also change the pairing afterwards.

If you want to add intelligence, e.g. to program and schedule lights, you need to have a Zigbee hub and an app, such as LedStore's Zigbee hub and Azoula Smart app, which are the most straightforward interfaces for this button, as the button will appear as a device in the app under Switches.

for 24V colour temperature adjustable led strips, led spots and panels, https://ledstore.fi/24v-zigbee-himmennettava-cct-led-muuntaja-50w is a suitable receiver. Receiver transformers are available in different power ratings from 30 to 200 W, as well as a single receiver for controlling a larger group up to 20 A.

Please contact us or drop by if you need help with product selection. We are happy to help with any questions you may have about LED lighting control and dimming.

Are LedStore's VaLO Zigbee devices compatible with other brands of Zigbee devices?

Yes! In addition to the LedStore VaLO Zigbee hub, devices such as Philips Hue bridge will work, you can use this button to:

Apple Home, IKEA TRÅDFRI, Samsung Smart Things, Google Home, Alexa and of course any other Zigbee product.

Zigbee pairing between devices?

We've gone through the pairings in blog articles that can be found on the LedStore blog under the names:

• zigbee-lighting-control-haltuun-part-1, where we go through how to pair without a hub/bridge
• zigbee-lighting-control-haltuun-part-2, which walks through pairing with a hub/bridge (Philips Hue and Samsung Smart Things)
• zigbee-lighting-control-haltuun-part-3, which completes the application options, taking into account multiple types of luminaires and sensors.
• cct-zigbee-under-lighting-from-the-installer's-eye-view, discussing Zigbee and CCT lighting from an installer's perspective
• zigbee-part-5-pairing-with-connectivity-only, with a comprehensive overview of the different deployment options with or without a hub.
• series gets new parts

What the heck is Zigbee?

Zigbee is a wireless RF system using mesh technology, where each device is both a receiver and a transmitter, ensuring that commands get through to larger sites. Zigbee devices can be freely interconnected between different manufacturers. This device supports the latest ZIGBEE 3.0 protocol.

With LedStore's VaLO Zigbee wireless lighting control, you can control your lighting either with wall-mounted wireless buttons or with your Android/iOS device such as a tablet or phone. You can control the lighting of your entire home wirelessly if you wish, but you can also control individual lights.
Zigbee is the only complete IoT (Internet of Things) solution - from a mesh network to a universal standard that allows smart devices to talk to each other. Thanks to the dedicated mesh network created by the devices, the message always reaches its destination, as each device is a receiver and a transmitter.

Zigbee is a standardised system to which you can connect any device in the Zigbee alliance and the certified product will seamlessly communicate with other devices connected to the network. The alliance includes Google, Apple, IKEA, Amazon, Panasonic and Somfy.
Zigbee products are already in millions of homes around the world. Our devices support the latest Zigbee 3.0 standard and are backwards compatible.
