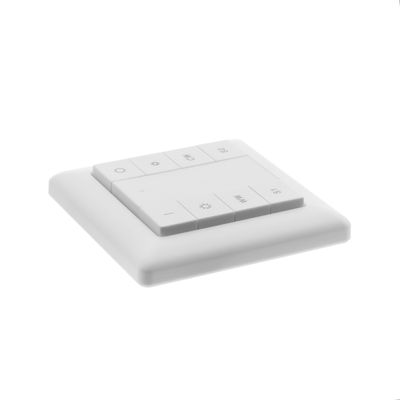

VaLO Zigbee — LED dimmer, CCT-button, wireless white
In stock at 17 pcs
SKU#: VaLO-P1CCT-ZG-W
0 / 5 (0)
VaLO Zigbee series wireless button for controlling CCT luminaires with colour temperature control. Functions include on/off and stepless dimming and colour temperature control. Plus two memory slots for your preferred settings. The button works with a Zigbee receiver, or a transformer with a CCT feature. The dimmer is battery operated (3V) and can be mounted in the desired location by gluing or screwing.
Control of the desired group of luminaires can be implemented wirelessly or connected to a smart controller, enabling programming and timing of the group of luminaires. In smart control applications, a hub/bridge is also required to be connected to the router to which the button is paired.
Read more
€ 79.00
VAT 0% | 24%
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
VaLO Zigbee series wireless pushbutton for controlling CCT luminaires, i.e. dimming and infinitely variable colour temperature control. The button is battery operated (3V button battery included). It can be mounted in the desired location using the 3M adhesive tape supplied in the package or by screwing it in. Remove the plastic cover from the battery before use.
You will also need at least one receiver controlled by a button. By default, one receiver is connected to one button.
When controlled by a Zigbee hub and mobile app, multiple receivers can be connected to the button, e.g. receivers controlling three different colour temperature adjustable LED strips. Connected to a single button, all three are controlled at the same time. Similarly, several buttons can be connected to control a single group of lights. LedStore's Zigbee hub and the Azoula Smart app are the most straightforward interfaces for this button, as the button appears as a device in the app under Switches
for 24V colour temperature adjustable LED strips, LED spots and panels, https://ledstore.fi/24v-zigbee-himmennettava-cct-led-muuntaja-50w is a suitable receiver. Receiver-transformers are available in different power ratings from 30 to 200W, as well as a simple CCT receiver for controlling a larger group up to 20A.
Please contact us or drop by if you need help with product selection. We are happy to help with any questions you may have about LED lighting control and dimming.
The button has a white bezel, but the 55 mm centre section will also fit the following bezel:
| BERKER: | S1, B1, B3, B7 Glass |
| GIRA: | Standard55, E2, Event, Espirit |
| JUNG: | A500, APlus |
| MERTEN: | M-Smart, M-Arc, M-Plan |
| SCHNEIDER: | EXXACT |
Are LedStore's VaLO Zigbee devices compatible with other brands of Zigbee devices?
Yes! In addition to the LedStore VaLO ZIgbee hub, devices compatible with e.g. Philips Hue bridge will work, you can use this button for example:
Apple Home, IKEA TRÅDFRI, Samsung Smart Things, Google Home, Alexa and of course any other Zigbee product.
Zigbee pairing between devices?
We've gone through the pairings in blog articles that can be found on the LedStore blog under the names:
- zigbee-lighting-control-haltuun-part-1, where we go through how to pair without a hub/bridge
- zigbee-lighting-control-haltuun-part-2, which walks through pairing with a hub/bridge (Philips Hue and Samsung Smart Things)
- zigbee-lighting-control-haltuun-part-3, which completes the application options, taking into account multiple types of luminaires and sensors.
- cct-zigbee-under-lighting-from-the-installer's-eye-view, discussing Zigbee and CCT lighting from an installer's perspective
- zigbee-part-5-pairing-with-connectivity-only, with a comprehensive overview of the different deployment options with or without a hub.
- series gets new parts
What the heck is Zigbee?
Zigbee is a wireless RF system using mesh technology, where each device is both a receiver and a transmitter, ensuring that commands get through to larger sites. Zigbee devices can be freely interconnected between different manufacturers. This device supports the latest ZIGBEE 3.0 protocol.
With LedStore's VaLO Zigbee wireless lighting control, you can control your lighting either with wall-mounted wireless buttons or with your Android/iOS device such as a tablet or phone. You can control the lighting of your entire home wirelessly if you wish, but you can also control individual lights.
Zigbee is the only complete IoT (Internet of Things) solution - from a mesh network to a universal standard that allows smart devices to talk to each other. Thanks to the dedicated mesh network created by the devices, the message always reaches its destination, as each device is a receiver and a transmitter.
Zigbee is a standardised system to which you can connect any device in the Zigbee alliance and the certified product will seamlessly communicate with other devices connected to the network. The alliance includes Google, Apple, IKEA, Amazon, Panasonic and Somfy.
Zigbee products are already in millions of homes around the world. Our devices support the latest Zigbee 3.0 standard and are backwards compatible.
Dimensions
Length: 86mm
Width: 86mm
Height: 18mm
CE, RoHS, SELV, IP21
- Delivery status In Stock
- Brand Ledstore
- Breadcrumbs Home ZIGBEE CCT VaLO Zigbee — LED dimmer, CCT-button, wireless white
- Category ZIGBEE CCT
- SKU VaLO-P1CCT-ZG-W
- White
- 176
- 71x71x13mm
- CE, RoHS, IP21
- PDF valo-p1cct-zginstruction.pdf
- PDF valo-p1cct-zginstruction.pdf
New product review
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
Customer questions
- What is CCT?
- What is the difference between stepwise or freely adjustable CCT lighting?
- How do CCT adjustable luminaires work?
- How to connect continuously variable CCT lighting?
- Can I use the VaLO-INWALL-CCT-400W hardwired controller at the same time as an RF wireless controller?
- Can I control CCT lights from multiple locations?
- I want to time the startup for bright daylight in the morning and warm and slightly dimmed light in the evening. Is it possible to control the light according to the season or time of day?
- What are the brands of CCT LED lamps sold on LedStore?
- How does VaLO wireless control work?
- Does VaLO wireless control work reliably?
- Are the VaLO buttons (wall model) made of glass?
- Which furniture series are VaLO wall buttons suitable for?
- How is the button taught to the receiver?
- How to reset the receiver (forget the pairing)?
- How many buttons can be taught to one receiver?
- How many receivers can be taught on one button?
- Hello!Can I hide a "traditional" electromechanical light switch under this wireless dimmer? For example, just the body of an ABB Jussi/Impressivo or Schneider EXXACT circuit breaker.Or do I always have to remove the electromechanical light switch completely if I install this wireless dimmer in its junction box?So I would like to implement the control and dimming of a total of 5 Zigbee lighting sets in the kitchen and living room with these Zigbee buttons, but I would still like to be able to disconnect the power supply (phase wire) of the transformers/Zigbee receivers of the luminaires also mechanically. Such a need is estimated to occur a couple of times a year: a Zigbee luminaire/receiver goes crazy and needs to be woken up by a power cut, or I want to de-energize the luminaire transformers for a holiday trip but I can't turn the wire protection on the control panel to the off position, because there is also a refrigerator socket in the same group.Regards Ville Mattila
- Moi. How close to other transmitters can transmitters be placed. For example in a warehouse on the same disk tray next to each other? Which placement do you recommend?
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
Read more on this topic:
Colour rendering of LEDs - What is the difference between CRI and Ra-value?
CCT CONTROLLABLE PRODUCT has won gold and bronze medals in two international design competitions in 2023!
Janne Halttu has been developing his own product family since the beginning of the company. Throughout the product development process, his own experience in building houses and installing lighting has been at the top of the list of requirements. The requirement list for CCT spotlights with colour temperature control included the following features:
- High quality - All parts of the luminaire are finished down to the connectors.
- High light quality - The LED circuitry of the luminaires has a very high colour rendering, CRI98!
- Smart home capability - Connectable to smart lighting management systems such as Zigbee, DALI2 without the need for a dedicated base transformer
- Quick to install - The luminaire has a quick connector for a Basic transformer, a pre-terminated connecting cable or a harness
- Minimum 600 Lumens - The luminaire has a removable opal which has the function of reducing the glare of the luminaire. By removing the lens, the light output can be increased by 10-15%
- Up to 55 mm high luminaire - The luminaire must fit into a standard Finnish ceiling structure consisting of 49x49 mm batten + 13 mm plasterboard.
- Small size transformer - The standard transformer of the luminaire can fit through the mounting hole of the luminaire.
- TRIAC dimmable - The basic transformer of the luminaire is TRIAC dimmable.
- Chainable - The standard transformer of the luminaire is chainable
- Long life - The luminaire has a burn time of +50,000 hours and a 7 year warranty
- Modular body - The luminaire's heat sink is a standard size spiral LED module which is interchangeable. We always use the same LED module in as many products as possible to make it environmentally friendly.
- Sustainability - The components of the luminaires must be able to be bought later.
LedStore's innovative CCT led family of luminaires has been entered in both the International Architecture & Design Awards 2023 and the A'Design Award 2023!
The results were gold and bronze in the lighting design category!
WINNING INNOVATION IN PARTS
All of the above are features of CCT spots. For example, we still have in stock LED circuits from products manufactured 10 years ago. This way, the customer is assured of a long availability of spare parts. The CCT led luminaire product family was initially launched with 10 luminaires, but since then the family has expanded and evolved. Today, the family consists of 55 products:
- 35 different CCT led spots, the development of which started in 2018 and the family has been launched in 2019
- 10 different CCT Led panels, development started in 2019 and the family has been launched in 2020
- 10 different CCT Led strip lights, which started development in 2019 and will be released in 2020
All-in-one system. Choose your CCT adjustable led luminaire of your choice. All products have high quality: colour rendering CRI 98 and a 5-7 year warranty.
WHAT IS THE REAL INNOVATION HERE?
There have been CCT lights on the market for a few years now, but all of them have used only pre-fixed switches, with a CRI of around 80. These products have also often been made of plastic, or thin sheet metal, with poor colour rendering. It's okay for customers to be free to choose the shade of light during installation, but why stop there?
"I wanted to make sure that when the interior changes, when new art is added to the wall or the carpet changes colour, the luminaires always bring out the best in the objects. So I designed a whole range of down lights that are beautiful, long-lasting, freely usable in any smart lighting system and with the highest possible lighting quality, CRI98. The luminaires are easy to install, and because they are low-voltage and have plug n play connectors, so no compromises!"
- Janne Halttu
TWO INSTALLATION METHODS
Basic:
Standard, where the luminaire comes with a transformer with a 3-position switch. The switch allows you to select a light temperature of 2900K/4000/5500K at the installation stage. The luminaire is TRIAC dimmable. The Led luminaires can be installed in chains.
Customizable:
Freely selectable from 2900-5500K. Selection is done by the desired lighting control system such as ZIgbee, DALI2, Z-Wave, etc. All lights are 24VDC parallel connected. Easy to add/remove Led lights. That is, the luminaire is purchased "Without its own transformer" and the luminaires are connected in parallel to one group transformer. This way all the luminaires behind the transformer are controlled by one single group and the CCT colour temperature of the luminaires can be freely adjusted and dimmed.
ACCESSORIES FOR THE PRODUCT FAMILY
The CCT product family also includes a complete IP54, pull-protected cabling kit with a 3 metre intermediate cable, and a choice of 3-piece or 6-piece splitter.
You can also use your own 3 pole cable for installation.
WHAT IS A COLOUR TEMPERATURE ADJUSTABLE LUMINAIRE?
A CCT-led light is a luminaire that allows you to change the colour temperature of white light. The range depends on the led luminaire, but can be as low as 2500K - 6500K.
The changes in colour temperature, which are clearly visible to the eye, range from yellowish light to bluish light. A temperature-controlled LED light changes the hue of the light so that the luminaire itself always has two LED circuits in parallel; cold and warm.
When the mixing ratio of the two is changed with a control, the colour temperature of the light changes. In addition to the possibility of changing the colour temperature of the light, the luminaires are dimmable.
Different materials and colours react differently to different light spectrums. It is very important to find the right colour temperature to suit your needs.
Read more on this topic:
Adjusting the colour temperature of spotlights, even according to the seasons
CCT adjustable led strip light
Janne Halttu
LedStore.fi entrepreneur who has built 4 detached houses for his family and renovated several properties. With 20 years of experience in construction, I have gained a lot of knowledge about structures and electrical work for several houses. I have been working with Led lighting for over 10 years. I am an expert in Led lighting, I write articles and I am a lighting designer. I often help clients with electrical and structural issues related to lighting and house construction.
