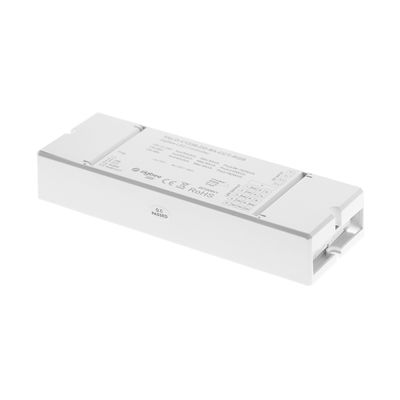

VaLO Zigbee 5 channel LED receiver 12V-36V - for Single colour, CCT, RGBW or RGB+CCT led lights 30-40A
In stock at 28 pcs
SKU#: Valo-v1236-ZG-40A-CCT-RGB
0 / 5 (0)
VaLO Zigbee dimmable receiver 5 channel
LedStore wireless Zigbee dimming receiver for 12-48V led luminaires.
Max. load per channel 12-24V 96-192W (8A), total 40A
Max. load per channel 36V 216W (6A), total 30A
Max. load per channel 192W (4A), total 20A
The controller is mounted between the transformer and the luminaire and the controller passes through the voltage that is applied to it, e.g. voltage 24V from the transformer in and 24V to the RGBW strip out, i.e. control is from the secondary side. So the transformer does not have to be dimmable!
A single receiver (a luminaire or group of luminaires connected to it) can be controlled by more than one button (e.g. when control is needed from the top and bottom of a staircase) when used via a Zigbee box. If a receiver (luminaire/group of luminaires) is paired directly to a push-button, only one receiver (luminaire/group of luminaires) can be controlled by one push-button.
This receiver allows one of the following (selected by a DIP switch on the receiver):
- Dimming of monochrome LED strips
- Red/Green/Blue/Whitestrip and panel colour adjustment in addition to dimming of single LED strips
- CCT (warm and cold in one) temperature control and dimming of spots and panels
- Red/Green/Blue/White+ CCT (warm and cold in one)
What do I need to go with this receiver?
Zigbee smart control can be enabled by selecting LedStore's Zigbee hub and downloading the Azoula Smart app for Android or iOS as an interface. LedStore's Zigbee devices also work with other hubs and their interfaces.
If you need wireless control of your luminaires without timers or smart controls, or if you need to add other sensing devices or mobile control (mobile phone or tablet), a Zigbee receiver and a button controller/regulator are sufficient. Ask us for more information!
Read more
€ 99.00
VAT 0% | 24%
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
VaLO Zigbee dimmable receiver 5 channel
LedStore wireless Zigbee dimming receiver for 12-48V led luminaires.
Max. load per channel 12-24V 96-192W (8A), total 40A
Max. load per channel 36V 216W (6A), total 30A
Max. load per channel 192W (4A), total 20A
The controller is mounted between the transformer and the luminaire and the controller passes through the voltage that is applied to it, e.g. 24V from the transformer in and 24V to the RGBW strip out, i.e. control is from the secondary side. So the transformer does not need to be dimmable! All our Zigbee devices have an internal memory for power failures. The light returns to the last used state.
A single receiver (connected luminaire or lighting group) can be controlled by multiple buttons (e.g. when control is needed from the top and bottom of a staircase) when used via a Zigbee box. If a receiver (luminaire/group of luminaires) is paired directly with a push-button, only one receiver (luminaire/group of luminaires) can be controlled by one push-button.
This receiver allows one of the following (selected by a DIP switch on the receiver):
- Dimming of monochrome LED strips
- Red/Green/Blue/Whitestrip and panel colour adjustment in addition to dimming
- CCT (warm and cold in one) temperature control and dimming of spots and panels
- Red/Green/Blue/White+ CCT (warm and cold in one)
Contact us or stop by if you need help with product selection. We are happy to help with any questions regarding LED lighting control and dimming.
For control:
Zigbee smart control can be enabled by selecting LedStore's Zigbee hub and downloading the Azoula Smart app for Android or iOS as an interface. LedStore's Zigbee devices also work with other hubs and their interfaces.
If you need wireless control of your luminaires without timers or smart controls, or if you need to add other sensing devices or mobile control (mobile phone or tablet), a Zigbee receiver and a button controller/regulator are sufficient. Ask us for more information!
Is VaLO Zigbee compatible with other Zigbee devices?
Yes! If you have a Philips Hue controller, for example, you can use it for example:
IKEA TRÅDFRI system, Google Home devices and software and of course any other Zigbee product.
This product is Apple Homekit compatible via Zigbee Plilips HUE.
Zigbee pairing?
We have gone through the pairing in the articles:
- zigbee-lighting-control-home-part-1, where we go through how to pair without a hub/bridge
- zigbee-lighting-control-haltuun-part-2, where we go through pairing with a hub/bridge (Philips Hue and Samsung Smart Things)
- zigbee-lighting-control-haltuun-part-3, which completes the application options, taking into account multiple types of luminaires and sensors.
- cct-zigbee-under-lighting-from-the-installer's-eye-view, discussing Zigbee and CCT lighting from an installer's perspective
- zigbee-part-5-pairing-with-connectivity-only, with a comprehensive overview of the different deployment options with or without a hub.
What the heck is Zigbee?
Zigbee is a wireless RF system using MESH technology, where each device is both a receiver and a transmitter, ensuring that commands get through to larger sites. Zigbee devices can be freely interconnected between different manufacturers. This device supports the latest ZIGBEE 3.0 protocol.
With LedStore's VaLO Zigbee wireless lighting control, you can control your lighting either with wall-mounted wireless buttons or with your Android/iOS device such as a tablet or phone. You can control the lighting of your entire home wirelessly if you wish, but you can also control individual lights.
Zigbee is the only complete IoT (Internet of Things) solution - from a mesh network to a universal standard that allows smart devices to talk to each other. Thanks to the dedicated mesh network created by the devices, the message always reaches its destination, as each device is a receiver and a transmitter.
Zigbee is a standardised system to which you can connect any device in the Zigbee alliance and the certified product will seamlessly communicate with other devices connected to the network. The alliance includes Google, Apple, IKEA, Amazon, Panasonic and Somfy.
Zigbee products are already in millions of homes around the world. Our devices support the latest Zigbee 3.0 standard and are backwards compatible.
Dimensions
Length: 170mm
Width: 59mm
Height: 29mm
- Delivery status In Stock
- Brand Ledstore
- Breadcrumbs Home Lighting controlZigbee wireless systemVaLO Zigbee 12-36V receivers VaLO Zigbee 5 channel LED receiver 12V-36V - for Single colour, CCT, RGBW or RGB+CCT led lights 30-40A
- Category VaLO Zigbee 12-36V receivers
- SKU Valo-v1236-ZG-40A-CCT-RGB
- Wattage 192
- Colour White
- Voltage (V) 12, 24, 36
- Immennys 12V, 24V, 36V, Dimmable, Wireless Zigbee dimming, Wireless dimming
- Light control 176, 175, 234
- Size 170x59x29mm
- Length of the package 17.5
- Height of the package 6.4
- Width of the package 3.6
- Approval CE, RoHS, IP21
- PDF valo-v1236-zg-8a-cct-rgbinstruction.pdf
- PDF valo-v1236-zg-8a-cct-rgbinstruction.pdf
New product review
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
Customer questions
- Moi. How close to other transmitters can transmitters be placed. For example in a warehouse on the same disk tray next to each other? Which placement do you recommend?
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
