VaLO Zigbee 24V SLIM DRIVER 75W CCT with build-in Zigbee receiver

VaLO Zigbee-controlled power supply with RF receiver

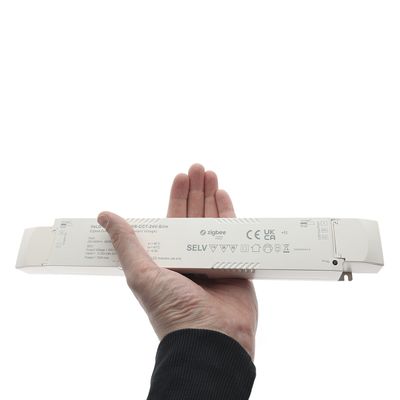

LedStore's VaLO series, Zigbee wireless dimming power supply for 24V CCT strip lights, spotlights and panels. Can also be used to control monochromatic, non colour temperature adjustable, dimmable luminaires. Long, narrow model. Fits e.g. in our 55x75mm profile! The transformer has four channels, maximum total load 75 W. The transformer's built-in RF receiver facilitates the installation of wireless control, as it only needs to be paired with a control button as a minimum. No separate receiver is therefore required.

Zigbee note: Only ONE button per transformer can be paired with the transformer. If you want to have more than one button on the same transformer (e.g. staircase switching) you need to have a HUB and a mobile application. All devices are paired to the HUB and the app determines which buttons the different lighting devices are connected to.

The power supply has a dry room protection, IP21, so it must not be exposed to e.g. water splashes. The mains connection must be carried out by a person with the necessary authorisation. The quick connectors are under a protective cover. If required, you can order from us the installation of a plug for the transformer, so that it can be connected to the socket without the need for an electrician. All our Zigbee devices have an internal memory in case of power failures. The light returns to the last used state.

Power supply dimming and CCT colour temperature control of the LED lights with VaLO series Zigbee buttons or remote controls. Zigbee dimming buttons and remote controls for monochrome lights are also suitable for pairing with this transformer.

Are LedStore's VaLO Zigbee devices compatible with other brands of Zigbee devices?

Yes! In addition to the LedStore VaLO ZIgbee hub, devices such as the Philips Hue bridge will work, you can use this transformer for example:

Apple Home, IKEA TRÅDFRI, Samsung Smart Things, Google Home, Alexa and of course any other Zigbee product.

Zigbee pairing?

We've gone through the pairing in blog articles that can be found on the LedStore blog under the names:

• zigbee-lighting-control-haltuun-part-1, where we go through how to pair without a hub/bridge
• zigbee-lighting-control-haltuun-part-2, which walks through pairing with a hub/bridge (Philips Hue and Samsung Smart Things)
• zigbee-lighting-control-haltuun-part-3, which completes the application options, taking into account multiple types of luminaires and sensors.
• cct-zigbee-under-lighting-from-the-installer's-eye-view, discussing Zigbee and CCT lighting from an installer's perspective
• zigbee-part-5-pairing-with-connectivity-only, with a comprehensive overview of the different deployment options with or without a hub.
• series gets several parts

What the heck is Zigbee?

Zigbee is a wireless RF system using mesh technology, where each device is both a receiver and a transmitter, ensuring that commands get through to larger sites. Zigbee devices can be freely interconnected between different manufacturers. This device supports the latest ZIGBEE 3.0 protocol.

With LedStore's VaLO Zigbee wireless lighting control, you can control your lighting either with wall-mounted wireless buttons or with your Android/iOS device such as a tablet or phone. You can control the lighting of your entire home wirelessly if you wish, but you can also control individual lights.
Zigbee is the only complete IoT (Internet of Things) solution - from a mesh network to a universal standard that allows smart devices to talk to each other. Thanks to the dedicated mesh network created by the devices, the message always reaches its destination, as each device is a receiver and a transmitter.

Zigbee is a standardised system to which you can connect any device in the Zigbee alliance and the certified product will seamlessly communicate with other devices connected to the network. The alliance includes Google, Apple, IKEA, Amazon, Panasonic and Somfy.
Zigbee products are already in millions of homes around the world. Our devices support the latest Zigbee 3.0 standard and are backwards compatible.

Dimensions

Length: 307mm
Width: 43mm
Height: 30mm

Our services

Please contact us if you need ready-to-install or installed LED strip sets with drivers from LedPaja. At LedStore, we also provide services for lighting design and light control design.
