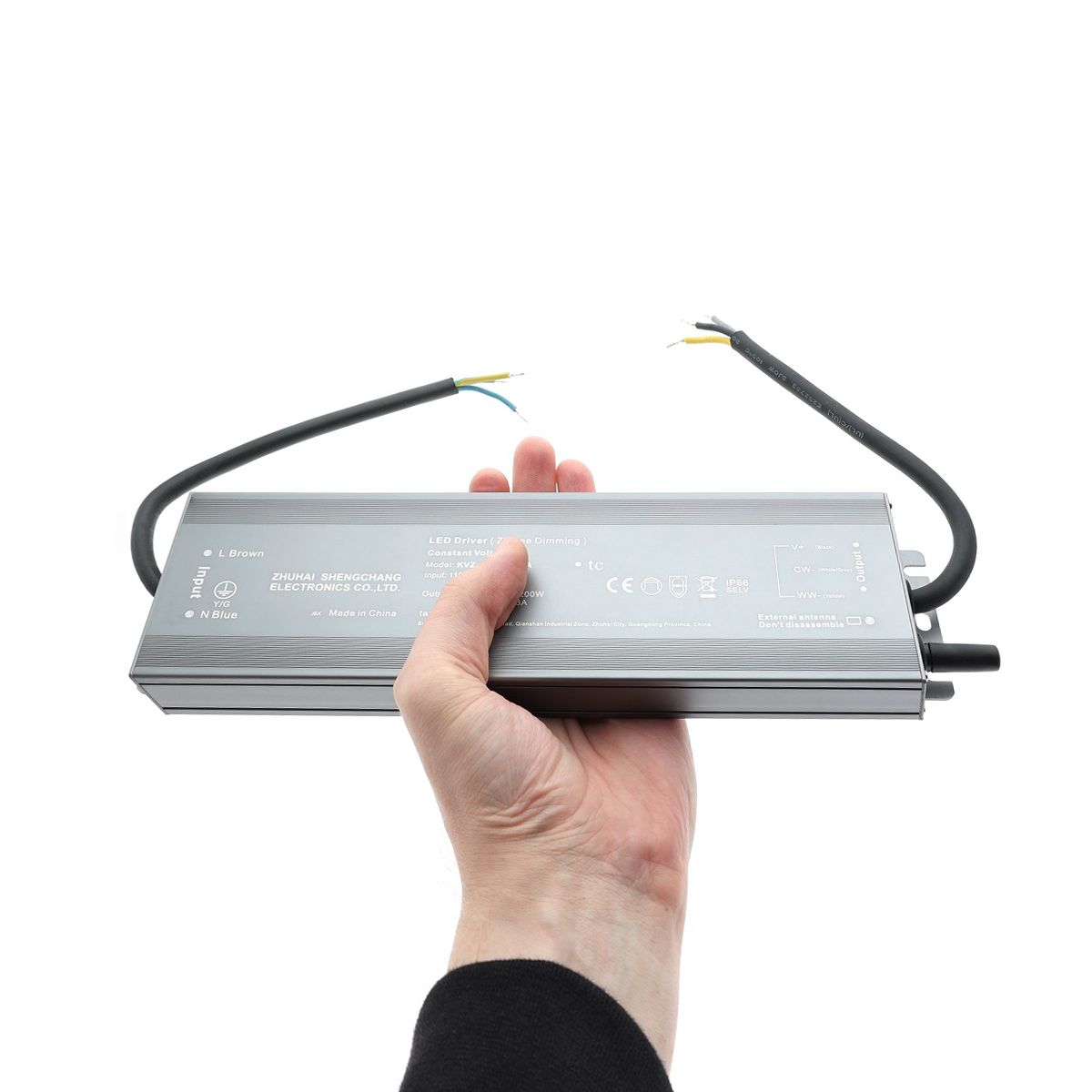

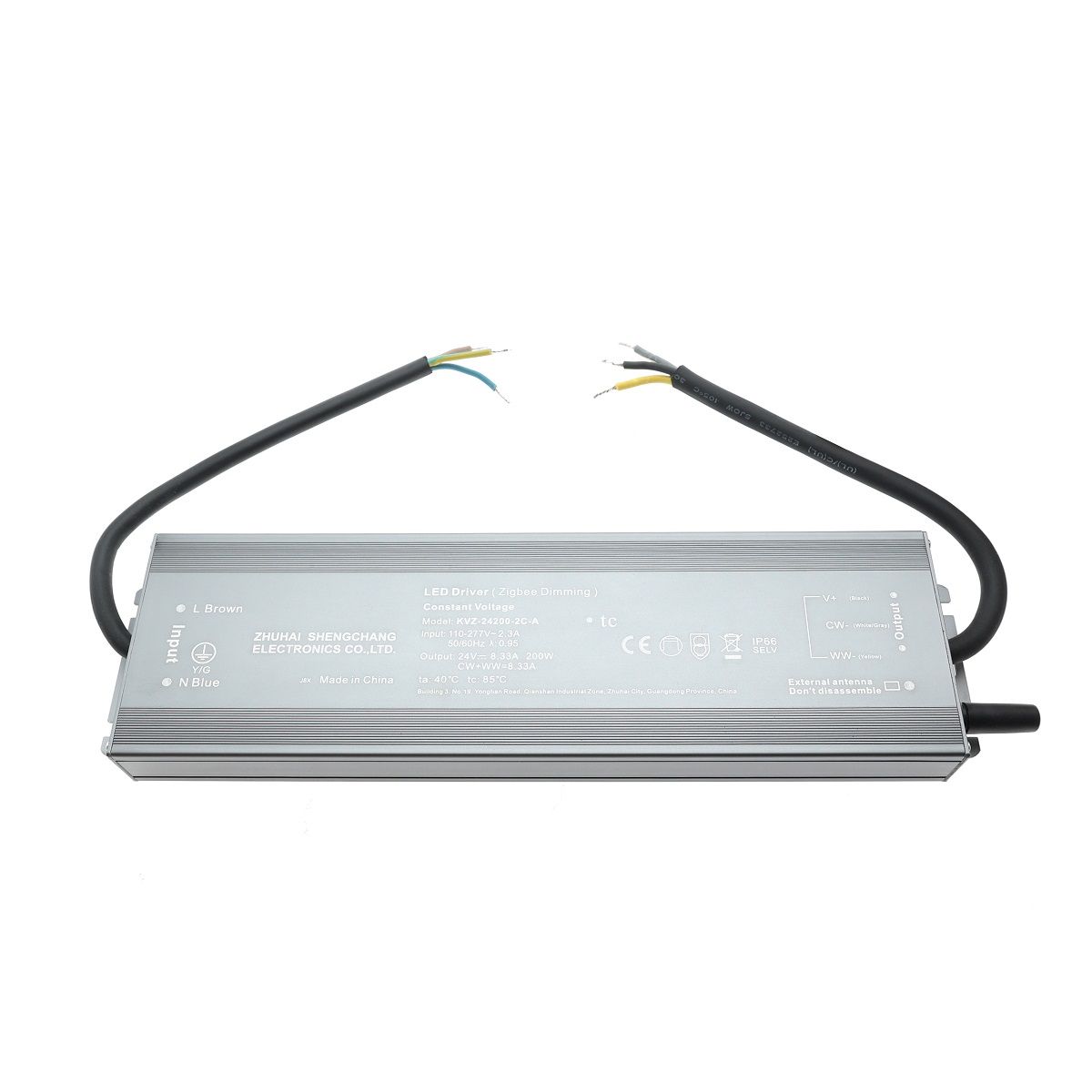

VaLO Zigbee-controlled power supply with RF receiver
Part of LedStore’s VaLO series, a power supply suitable for wireless Zigbee dimming for 24V CCT light strips, spotlights, and panels. Can also control single-color, non-color-temperature-adjustable, dimmable luminaires. The power supply is four-channel, with a total maximum load of 200 W. The power supply’s built-in RF receiver simplifies wireless control installation, as pairing requires only a control button at a minimum. A separate receiver is therefore not needed. The power supply is moisture-proof (IP66).
Note regarding Zigbee: Only ONE button can be paired with each transformer. If you want to connect multiple buttons to the same transformer (e.g., for staircase lighting), you will need a HUB and the mobile app. All devices are paired with the HUB, and the app is used to assign which buttons are connected to which lighting devices.
The power supply has an IP66 moisture rating, so it can be exposed to water jets, for example. Mains connections must be performed by a person with the necessary qualifications. If needed, you can order a plug installation for the transformer from us, allowing you to plug it into an outlet without an electrician. All our Zigbee devices have internal memory in case of power outages. The light returns to the last used setting.
Dimming of the power supply and CCT color temperature control of LED lights using VaLO series Zigbee buttons or remote controls. Zigbee dimming buttons and remote controls for single-color lights are also compatible with this adapter.
Are LedStore’s VaLO Zigbee devices compatible with Zigbee devices from other brands?
Yes! In addition to the LedStore VaLO Zigbee hub, devices compatible with, for example, the Philips Hue bridge will work; you can use this adapter with, among others:
Apple Home, IKEA TRÅDFRI, Samsung SmartThings, Google Home, Alexa, and, of course, any other Zigbee product.
Zigbee Pairing
We’ve covered pairing in blog posts available on the LedStore blog under the titles:
- zigbee-lighting-control-get-started-part-1, which covers pairing without a hub / bridge
- zigbee-lighting-control-guide-part-2, which covers pairing with a hub/bridge (Philips Hue and Samsung SmartThings)
- zigbee-lighting-control-guide-part-3, which expands on app options and covers multiple types of lights and sensors
- CCT-Zigbee-Lighting-Installer's-Perspective, which covers Zigbee and CCT lighting from an installer's perspective
- Zigbee Part 5: Pairing is done this way, which comprehensively covers various usage options with or without a hub.
- The series is getting new parts
Pairing this device:
Turn the power on and off three times, waiting one second (or slightly more, but at least one second) between each step, i.e.:
Turn the power onWait 1+ secondsTurn off thepower
Wait 1+ seconds
And do this 3 times in total
What on earth is Zigbee?
Zigbee is a wireless RF system that utilizes mesh technology, where each device acts as both a receiver and a transmitter, ensuring that commands are transmitted even in larger areas. Zigbee devices can be freely combined across different manufacturers. This device supports the latest ZIGBEE 3.0 protocol.
With LedStore’s VaLO Zigbee – wireless lighting control, you can control your lighting either with wall-mounted wireless buttons or using your Android/iOS device, such as a tablet or phone. You can manage the lighting control for your entire home wirelessly if you wish, but controlling individual lights also works perfectly.Zigbee is the only complete IoT (Internet of Things) solution—from mesh networks to a universal standard that allows smart devices to communicate with each other. Thanks to the mesh network created by the devices themselves, messages always reach their destination, as each device acts as both a receiver and a transmitter.
Zigbee is a standardized system to which you can connect any device belonging to the Zigbee Alliance, and a certified product communicates seamlessly with other devices connected to the network. Members of the Alliance include Google, Apple, IKEA, Amazon, Panasonic, and Somfy. Zigbee products are already in millions of homes worldwide. Our devices support the latest Zigbee 3.0 standard and are backward compatible.
