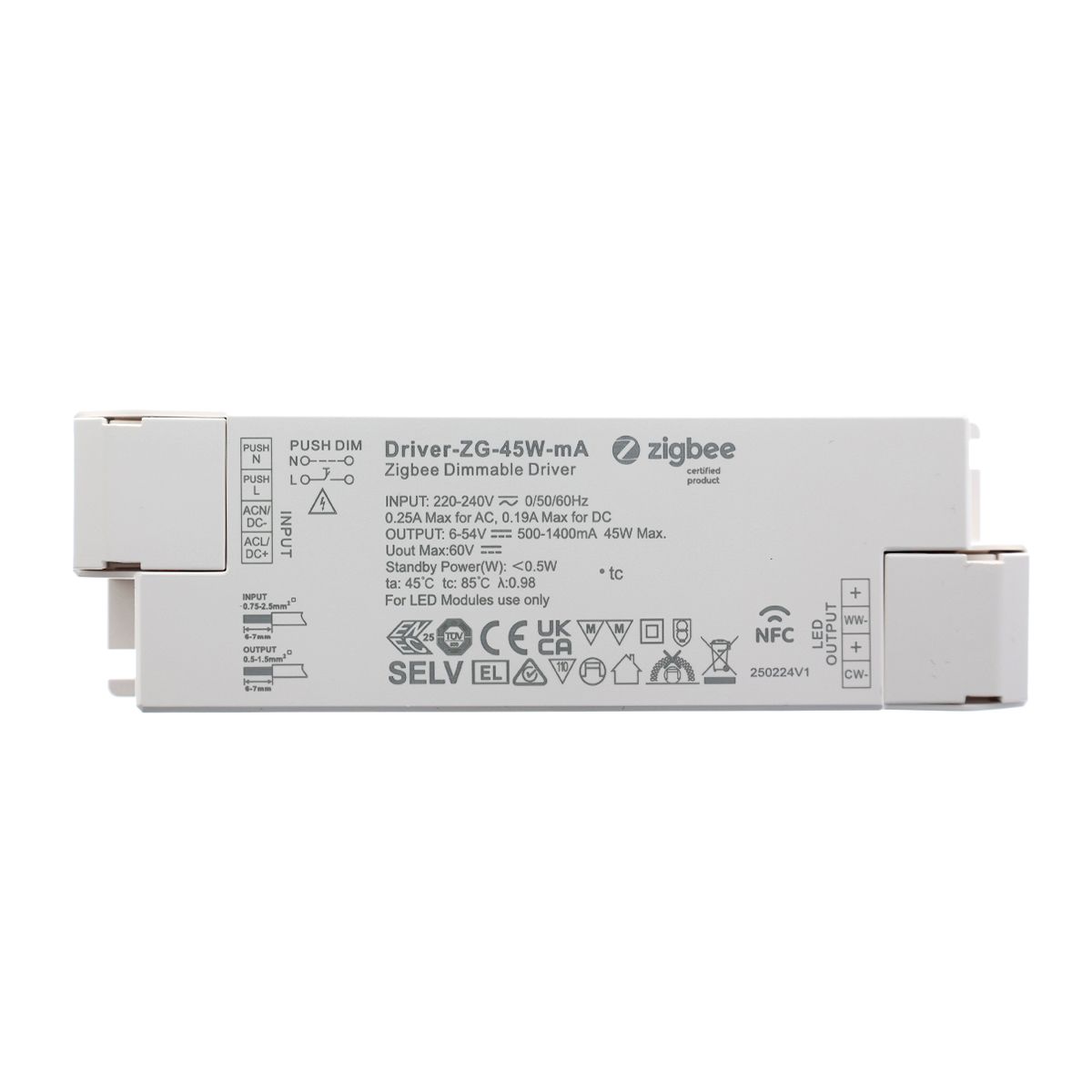

VaLO Adjustable 500-1400mA DRIVER 45W with built-in Zigbee receiver

VaLO Zigbee dimmable power supply, 500-1400mA

VaLO Zigbee series dual channel power supply. Adjustable current, 500-1400mA. Set to 900mA by default. Suitable for both monochrome and CCT spots. receiver built-in, so for wireless dimming, all you need is an additional operating button to be paired with the transformer. Max. load 45W. The power supply must be installed in a dry place. The wiring must be carried out by a person authorised to do so.

Dimming of the power supply and colour adjustment of the ribbon is done with buttons of the VaLO Zigbee series. So order the right kind of dimmer button depending on the spot you are using e.g. (note! other options also available):

• CCT button
• Dimming button for a monochrome spot

NOTE! The current of the transformer is controlled by NFC!

How do I adjust the transformer power with NFC?

1. Take the transformer on the table
2. Download APPI for Google: SR NFC TOOL or IOS: SR NFC TOOL
3. Open the APP and scan the QR code on the controller.
4. Adjust the mA
5. DONE! The transformer does NOT need power to adjust!

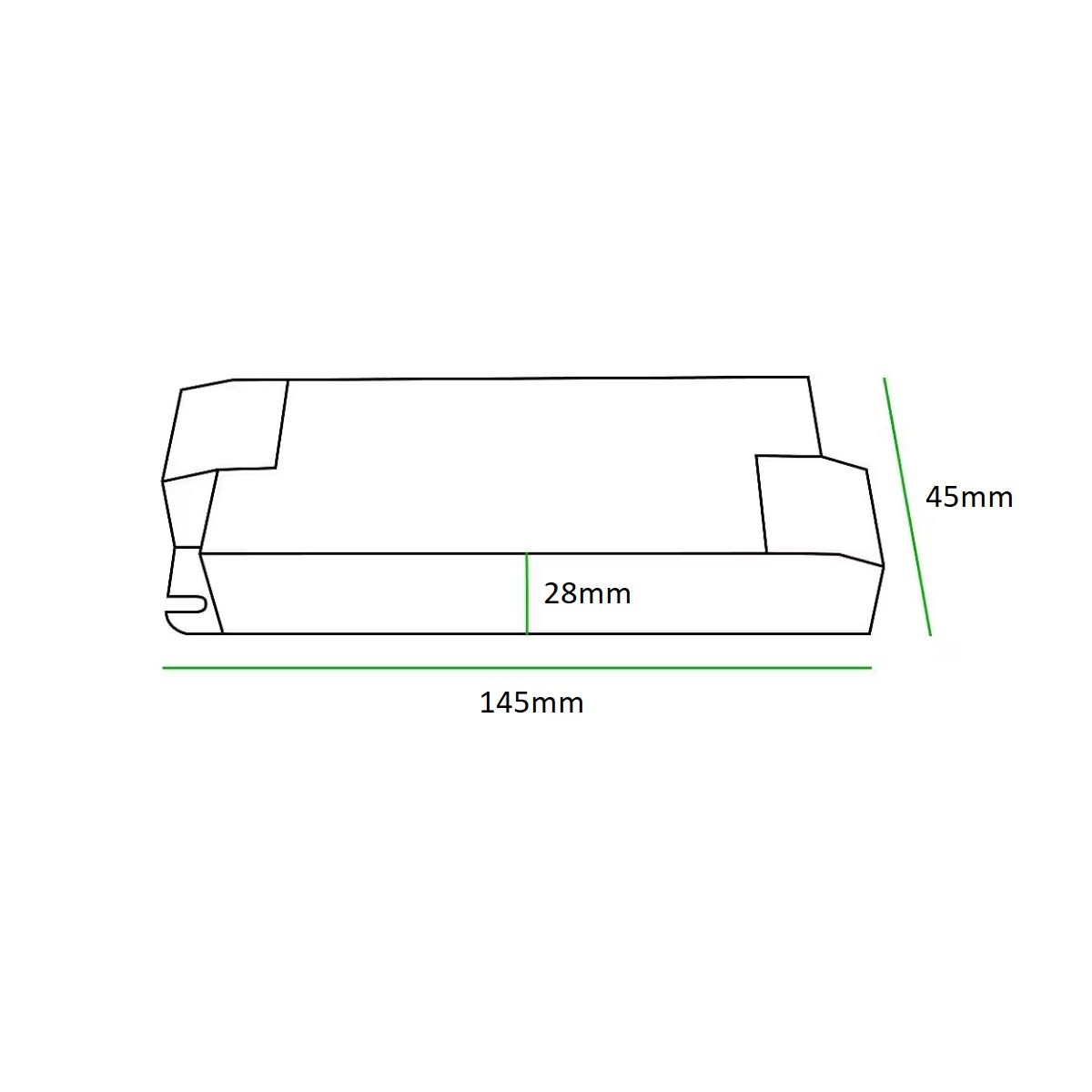

Dimensions

Length: 145mm
Width: 45mm
Height: 28mm
