Tuya relay 2 channel

In stock at 30 pcs
SKU#: Tuya-Relay-2
The Tuya Zigbee 2-channel relay allows you to remotely control two separate electrical devices using the Tuya Smart app. Can be connected to a traditional switch (PUSH)
  • 2x 1150W other load
  • 2x 250 LED load
  • Can be placed under the normal button (PUSH)
  • Fits in a coffer box
  • Tuya Zigbee
Read more
€ 49.00
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
  • Product description

    Tuya Relay 2 Channel - Intelligent control for electrical appliances

    The Tuya Zigbee 2-channel relay enables remote control of two separate electrical devices using the Tuya Smart app. You can turn on and off lights, sockets or other devices either from the app, with voice commands or with a traditional wall switch. The relay works via Zigbee 3.0 and integrates seamlessly with your smart home

    Features

    • 2 separate channels: allows two devices to be controlled independently.
    • Zigbee 3.0 connection: stable and fast connection to the Tuya ecosystem.
    • Smart control: control with an app, voice commands (Alexa, Google Assistant) or a traditional switch
    • Scheduling and automation: control devices with timers and create automations with other Tuya devices.
    • Manual control: turn on and off directly from the wall switch.
    • Wide compatibility: suitable for controlling lighting, sockets and other electrical devices.

    Technical specifications

    Feature Specifications
    Suitable for use with all types of electrical devices 100-240V AC 50/60Hz
    Maximum load 2x5A (2x1150W / 2x250W LED)
    Wireless connection Zigbee 3.0 (2.4GHz)
    Operating temperature -10°C - +40°C
    Range Up to 50 meters in unobstructed space
    Dimensions 39 x 39 x 18 mm
    IP rating IP20 (for indoor use)
    Certificates CE, RoHS

    Installation

    Fits in a traditional wall box.

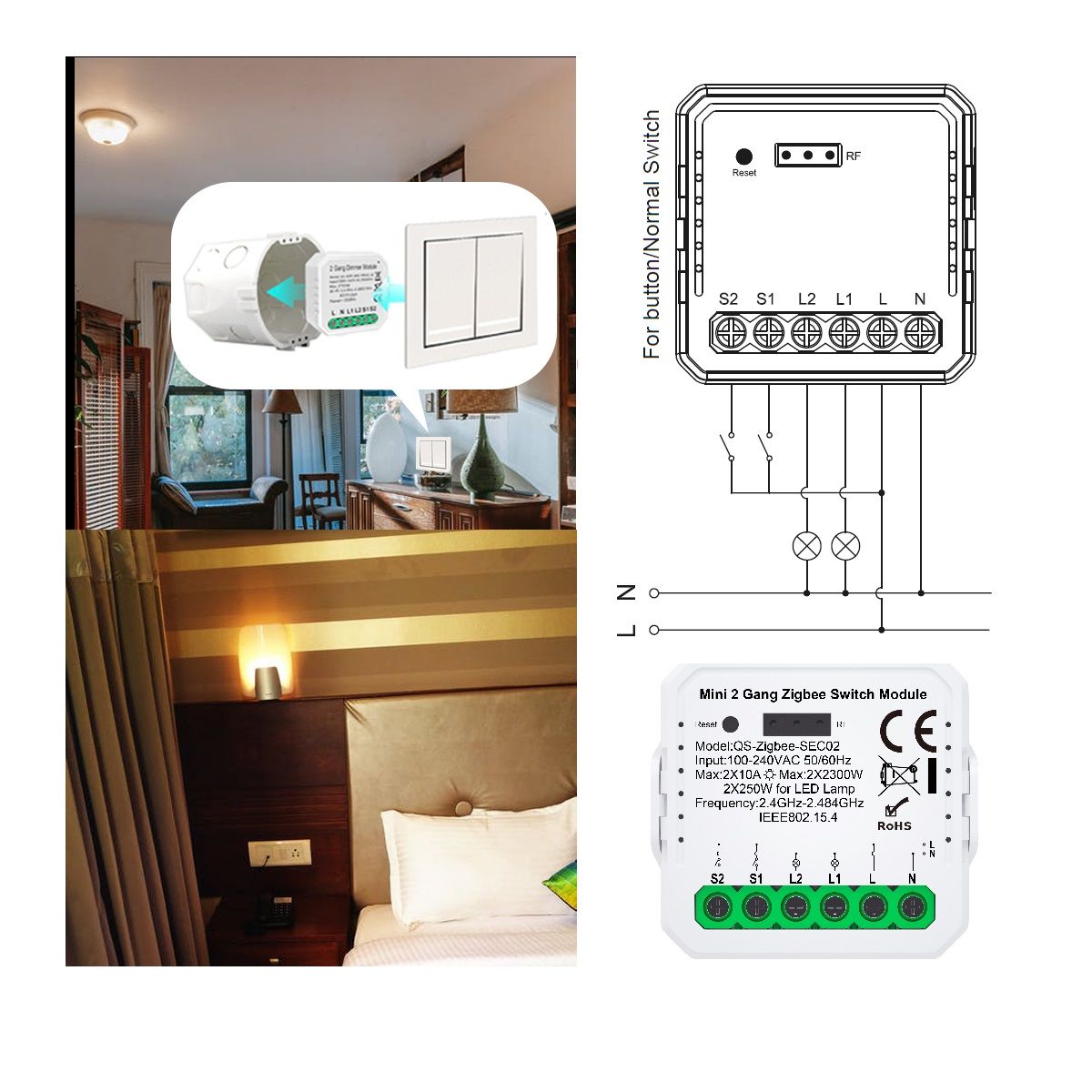

    In addition to wireless control, the relay can also be wired behind 2 conventional switches. The switches are fitted with the manufacturer's PUSH springs, so that tapping the switch turns the device on or off.

    Adding Tuya to the application

    - Open the Tuya app

    - Add a new device and start the search

    - Press the relay reset button 5 times in a row

    Device found, name it start using it!


    Contents of the package

    • Tuya Zigbee 2-channel relay x1
    • Installation manual x1


  • Reviews
  • FAQ
  • Tuya

Tuya Relay 2 Channel - Intelligent control for electrical appliances

The Tuya Zigbee 2-channel relay enables remote control of two separate electrical devices using the Tuya Smart app. You can turn on and off lights, sockets or other devices either from the app, with voice commands or with a traditional wall switch. The relay works via Zigbee 3.0 and integrates seamlessly with your smart home

Features

  • 2 separate channels: allows two devices to be controlled independently.
  • Zigbee 3.0 connection: stable and fast connection to the Tuya ecosystem.
  • Smart control: control with an app, voice commands (Alexa, Google Assistant) or a traditional switch
  • Scheduling and automation: control devices with timers and create automations with other Tuya devices.
  • Manual control: turn on and off directly from the wall switch.
  • Wide compatibility: suitable for controlling lighting, sockets and other electrical devices.

Technical specifications

Feature Specifications
Suitable for use with all types of electrical devices 100-240V AC 50/60Hz
Maximum load 2x5A (2x1150W / 2x250W LED)
Wireless connection Zigbee 3.0 (2.4GHz)
Operating temperature -10°C - +40°C
Range Up to 50 meters in unobstructed space
Dimensions 39 x 39 x 18 mm
IP rating IP20 (for indoor use)
Certificates CE, RoHS

Installation

Fits in a traditional wall box.

In addition to wireless control, the relay can also be wired behind 2 conventional switches. The switches are fitted with the manufacturer's PUSH springs, so that tapping the switch turns the device on or off.

Adding Tuya to the application

- Open the Tuya app

- Add a new device and start the search

- Press the relay reset button 5 times in a row

Device found, name it start using it!


Contents of the package

  • Tuya Zigbee 2-channel relay x1
  • Installation manual x1
