Recessed LED PANEL 300x1200 — UPPOAVA, dimmable, color changeable CCT, 36W high CRI97
Out of Stock
SKU#: Panel1200-CCT
0 / 5 (0)
UPPOAVA -PANELI 300x1200, 36W is a dimmable, moisture resistant (IP54) LED luminaire for demanding tastes. The colour temperature of the light (K) can be adjusted from warm-neutral-cold by means of a switch connected to the transformer of the luminaire. The colour rendering index (CRI) is a staggering minimum of 95 in every shade! If you omit the transformer, you can also choose a transformer and controller suitable for other control systems, either for a single luminaire or for a group of several luminaires. This way you can also get the colour temperature control to work with a floating controller.
Read more
€ 199.00
VAT 0% | 24%
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
- Product description
UPPOAVA panel 300x1200, 36W, with variable light colour temperature, is a multifunctional luminaire for indoor and outdoor use. Suitable for bathrooms, terraces and kitchens. The panel blends perfectly into the ceiling and creates the effect of a skylight in the room lighting. The colour temperature of the luminaire can be selected via a switch on the transformer, and it is dimmable and moisture-proof. It also comes with a 5-year guarantee.
About Led technology
It doesn't matter what kind of light a luminaire produces. For the home, it is recommended to choose a light with a colour rendering index of at least 90 CRI or higher, so that the lighting looks natural to the eye. UPPOAVA -led panels have a CRI above 95 at all colour temperatures. It is possible to change the hue (i.e. Kelvin) of the light using the three-position switch on the transformer at the time of installation. CW-cold white, DW-neutral white and WW-warm white. Neutral white light (around 4000 K) is pure and natural in colour, making it ideal for use as a light window or skylight. kelvins higher than 4 000 K are similar to daylight, while lower K take you in a softer and warmer direction. For example, when installed in a smart control, the luminaire can be made to follow even the desired daylight rhythm automatically.
The UPPOAVA -led panel uses an edge diffuser to give a soft light with no speckle and a matte acrylic to further diffuse the light into a pleasantly even light. The UPPOAVA panel 300x1200, 36W led is equivalent in luminous intensity to 250W halogen, which means 3,000 lumens of luminous efficiency. The frame is smooth, and the springs 4 pcs are pre-mounted.
![Neliöt Led Paneelit]({{media url="wysiwyg/Neli_t_Paneelit_1.png"}})

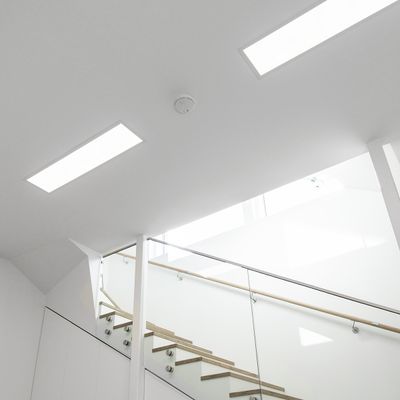

Click here for installation examples and photos of ideas
Installation
The luminaire is recessed in the ceiling or surface-mounted. When recessed, the mounting hole should be 285x1185mm. The luminaire itself is 295x1195x22mm, plus a separate power supply which can be set to any of three colour temperatures, warm-neutral-cool white. The power supply is dimmable with wired led dimmers such as Schneider EXXACT, ABB Jussi and Impressivo, Elko, Ensto Jung, as well as our range of Led triac dimmer and VaLO Zigbee receiver dimmer. For more information on dimming, visit our About Dimming page, including all the luminaires and dimmers we have tested.
The springs are on the two sides of the panel and are pre-mounted on the panel. If you also buy a surface-mount frame, the transformer with its temperature controls will fit inside the surface-mount frame. The power supply wiring can be extended, with a three-pole cable, or, when connecting multiple panels, use CCT wires and splitters.
The luminaire will fit into a typical ceiling structure with only 48x48 mm reinforcement and 13 mm plasterboard under the vapour barrier. If the vapour barrier is installed loosely, we recommend installing a board or plasterboard above the luminaire to prevent the insulation from sagging. The LED will not reach high temperatures, so no fire protection is required. However, it is not recommended to mount the Led luminaire on any material and an air space of e.g. 1-2 cm can be left.
The luminaire is available with a white surface mounting frame 50 mm high. The transformer fits inside the frame.
NOTE! Requires a separate CCT colour temperature control receiver and a light controller to allow a smooth change of the colour temperature of the white light.
We will assist you personally with product selection. We also offer an installation service for the products you buy.
Dimming
If a sliding colour temperature control is desired, then the product selection will be "non-transformer". Instead of this luminaire-specific transformer, a transformer with the desired control system is purchased, which also has a colour temperature control feature. The systems we offer include RF wireless control transformers, Zigbee smart control transformers and DALI transformers with controls.
Why choose a UPPOAVA -led panel?
- Dimmable
- Three selectable light colours
- Moisture-proof (IP54)
- Excellent colour rendering (CRI +95)
- Good light output
- Superior 5-year warranty for LED luminaire
- UPPOAVA luminaire lifetime up to 50 000
- Saves energy and therefore money
- You can use the same luminaire both indoors and outdoors
- Finished, timeless design
- Easy to install
- Further information
- Reviews
- FAQ
- Mounting dimensions
- Zigbee CCT
- RF CCT
- DALI2 CCT
- CCT Cables
- CRI
- ADesignAward
UPPOAVA panel 300x1200, 36W, with variable light colour temperature, is a multifunctional luminaire for indoor and outdoor use. Suitable for bathrooms, terraces and kitchens. The panel blends perfectly into the ceiling and creates the effect of a skylight in the room lighting. The colour temperature of the luminaire can be selected via a switch on the transformer, and it is dimmable and moisture-proof. It also comes with a 5-year guarantee.
About Led technology
It doesn't matter what kind of light a luminaire produces. For the home, it is recommended to choose a light with a colour rendering index of at least 90 CRI or higher, so that the lighting looks natural to the eye. UPPOAVA -led panels have a CRI above 95 at all colour temperatures. It is possible to change the hue (i.e. Kelvin) of the light using the three-position switch on the transformer at the time of installation. CW-cold white, DW-neutral white and WW-warm white. Neutral white light (around 4000 K) is pure and natural in colour, making it ideal for use as a light window or skylight. kelvins higher than 4 000 K are similar to daylight, while lower K take you in a softer and warmer direction. For example, when installed in a smart control, the luminaire can be made to follow even the desired daylight rhythm automatically.
The UPPOAVA -led panel uses an edge diffuser to give a soft light with no speckle and a matte acrylic to further diffuse the light into a pleasantly even light. The UPPOAVA panel 300x1200, 36W led is equivalent in luminous intensity to 250W halogen, which means 3,000 lumens of luminous efficiency. The frame is smooth, and the springs 4 pcs are pre-mounted.
Click here for installation examples and photos of ideas
Installation
The luminaire is recessed in the ceiling or surface-mounted. When recessed, the mounting hole should be 285x1185mm. The luminaire itself is 295x1195x22mm, plus a separate power supply which can be set to any of three colour temperatures, warm-neutral-cool white. The power supply is dimmable with wired led dimmers such as Schneider EXXACT, ABB Jussi and Impressivo, Elko, Ensto Jung, as well as our range of Led triac dimmer and VaLO Zigbee receiver dimmer. For more information on dimming, visit our About Dimming page, including all the luminaires and dimmers we have tested.
The springs are on the two sides of the panel and are pre-mounted on the panel. If you also buy a surface-mount frame, the transformer with its temperature controls will fit inside the surface-mount frame. The power supply wiring can be extended, with a three-pole cable, or, when connecting multiple panels, use CCT wires and splitters.
The luminaire will fit into a typical ceiling structure with only 48x48 mm reinforcement and 13 mm plasterboard under the vapour barrier. If the vapour barrier is installed loosely, we recommend installing a board or plasterboard above the luminaire to prevent the insulation from sagging. The LED will not reach high temperatures, so no fire protection is required. However, it is not recommended to mount the Led luminaire on any material and an air space of e.g. 1-2 cm can be left.
The luminaire is available with a white surface mounting frame 50 mm high. The transformer fits inside the frame.
NOTE! Requires a separate CCT colour temperature control receiver and a light controller to allow a smooth change of the colour temperature of the white light.
We will assist you personally with product selection. We also offer an installation service for the products you buy.
Dimming
If a sliding colour temperature control is desired, then the product selection will be "non-transformer". Instead of this luminaire-specific transformer, a transformer with the desired control system is purchased, which also has a colour temperature control feature. The systems we offer include RF wireless control transformers, Zigbee smart control transformers and DALI transformers with controls.
Why choose a UPPOAVA -led panel?
- Dimmable
- Three selectable light colours
- Moisture-proof (IP54)
- Excellent colour rendering (CRI +95)
- Good light output
- Superior 5-year warranty for LED luminaire
- UPPOAVA luminaire lifetime up to 50 000
- Saves energy and therefore money
- You can use the same luminaire both indoors and outdoors
- Finished, timeless design
- Easy to install
- Delivery status Out of Stock
- Brand Ledstore
- Breadcrumbs Home By featuresLED lights recessed Recessed LED PANEL 300x1200 — UPPOAVA, dimmable, color changeable CCT, 36W high CRI97
- Category LED lights recessed
- SKU Panel1200-CCT
- Wattage 36
- Mounting hole 283
- Lumen 3000
- Designed in Finland Yes
- Installation
Valaisin upotetaan kattoon tai asennetaan pinta-kehykseen. Upotettaessa asennusaukon tulee olla 285x1185mm. Itse valaisin on 295x1195x22mm ja lisäksi erillinen virtalähde, jossa kytkin valon varisavyn vaihtamiseen. Virtalähde mahtuu pinta-asennuskehykseen sisälle.
Valaisin mahtuu tyypilliseen kattorakenteeseen, jossa höyrynsulun alla on vain 48x48mm koolaus ja 13mm kipsilevy. Mikäli höyrynsulku on asennettu löysälle, suosittelemme asentamaan valaisimen yläpuolelle laudan tai kipsilevyn estämään eristeen painumista. Ledin lämpötila ei nouse korkeaksi, joten palonsuojausta ei tarvita. Led valaisinta ei suositella kuitenkaan asennettavaksi kiinni mihinkään materiaaliin ja ilmatilaa voi jättää esim. 1-2 cm.
Valaisimeen on saatavana pinta-asennuskehys joka on 50mm korkea. Muuntaja mahtuu kehyksen sisälle.
- Immennys 24V, 230V, Dimmable, Wireless VaLO dimming, Wireless Zigbee dimming, Wireless dimming, Wired
- Colour temperature (K) 3000, 4000, 6000
- Life span 50000
- Model LedPanel 300x1200, 3000-4000-6000K
- Size 295x1195mm, Installation cut out 280x1180mm, height 22mm
- Length of the package 119.5
- Height of the package 5
- Width of the package 29.5
- Change Dimmable, Driver included, with dip switch for colour temperature. Mounting springs attached. Surface mounting frame available.
- Approval CE, RoHS, IP54
- PDF ledstorenpaneelikehyksenkasaus-jaasennusohje.pdf
- PDF ledstorenpaneelikehyksenkasaus-jaasennusohje.pdf
New product review
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
Customer questions
- Are LED ceilings and LED panels adjustable/dimmable?
- Does the dimmer come with the luminaire?
- Are the bulbs in LED ceilings and LED panels replaceable?
- What are the brands of led plafonds and led panels sold at LedStore?
- What if I buy a led plafond or led panel now and it breaks in 8 years, what will replace it?
- Does the luminaire come with a power supply/ ballast/ transformer?
- Does a led plafond or led panel require a service hatch?
- How much depth do led ceilings and led panels require?
- Are the products fire-safe, i.e. do they require fire protection?
- Are LED ceilings and LED panels chainable?
- Can led ceilings and led panels also be installed in the yard, e.g. in a carport?
- What is the lifetime of LED ceilings and LED panels?
- Hi how/where can i select the mounting frame for the uppoava 300x1200 led panel 3000-4000-6000k?
- I would like to know Led plafond 120 opening angle.
Zigbee CCT transformers
Zigbee CCT Products that you can use when you want stepless CCT control.
The luminaire is ordered without its own transformer and a group transformer is selected for CCT spots or CCT panels, as well as for CCT led strip lighting.
The transformer size for spots and panels is calculated by adding up the Watts + 25%.
For the CCT led strip, a 15% margin is sufficient.
e.g. 4x 9W CCT spot = 45W, so the closest is 50W
RF CCT transformers
RF CCT Products that you can use when you want stepless CCT control. The luminaire is ordered without its own transformer and a group transformer is selected for CCT spotlights or CCT panels, as well as for CCT led strip lighting.
The transformer size for spots and panels is calculated by adding up the Watts + 25%.
For the CCT led strip, a 15% margin is sufficient.
DALI2 (DT8) CCT transformers
DALI2 CCT Products you can use when you want stepless CCT control.
The luminaire is ordered without its own transformer and a group transformer is selected for CCT spots or CCT panels, as well as for CCT led strip lighting.
The transformer size for spots and panels is calculated by adding up the Watts + 25%.
For the CCT led strip, a 15% margin is sufficient.
e.g. 4x 9W CCT spot = 45W, so the closest is 50W
CCT wire harnesses
With our wiring harnesses you can quickly and reliably install CCT spots and CCT panels directly on one transformer. All luminaires are installed in parallel on the same transformer.
The spots come standard with a 15cm connecting cable with a connector, so you can easily create your own set with these wires.
with 3m spacer cables you can put even 2 in a row. All connection points have IP54 tight draught proofing.
In the distribution boxes (3 and 6) it is not mandatory to install a lamp on each connector.
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
Read more on this topic:
Colour rendering of LEDs - What is the difference between CRI and Ra-value?
CCT CONTROLLABLE PRODUCT has won gold and bronze medals in two international design competitions in 2023!
Janne Halttu has been developing his own product family since the beginning of the company. Throughout the product development process, his own experience in building houses and installing lighting has been at the top of the list of requirements. The requirement list for CCT spotlights with colour temperature control included the following features:
- High quality - All parts of the luminaire are finished down to the connectors.
- High light quality - The LED circuitry of the luminaires has a very high colour rendering, CRI98!
- Smart home capability - Connectable to smart lighting management systems such as Zigbee, DALI2 without the need for a dedicated base transformer
- Quick to install - The luminaire has a quick connector for a Basic transformer, a pre-terminated connecting cable or a harness
- Minimum 600 Lumens - The luminaire has a removable opal which has the function of reducing the glare of the luminaire. By removing the lens, the light output can be increased by 10-15%
- Up to 55 mm high luminaire - The luminaire must fit into a standard Finnish ceiling structure consisting of 49x49 mm batten + 13 mm plasterboard.
- Small size transformer - The standard transformer of the luminaire can fit through the mounting hole of the luminaire.
- TRIAC dimmable - The basic transformer of the luminaire is TRIAC dimmable.
- Chainable - The standard transformer of the luminaire is chainable
- Long life - The luminaire has a burn time of +50,000 hours and a 7 year warranty
- Modular body - The luminaire's heat sink is a standard size spiral LED module which is interchangeable. We always use the same LED module in as many products as possible to make it environmentally friendly.
- Sustainability - The components of the luminaires must be able to be bought later.
LedStore's innovative CCT led family of luminaires has been entered in both the International Architecture & Design Awards 2023 and the A'Design Award 2023!
The results were gold and bronze in the lighting design category!
WINNING INNOVATION IN PARTS
All of the above are features of CCT spots. For example, we still have in stock LED circuits from products manufactured 10 years ago. This way, the customer is assured of a long availability of spare parts. The CCT led luminaire product family was initially launched with 10 luminaires, but since then the family has expanded and evolved. Today, the family consists of 55 products:
- 35 different CCT led spots, the development of which started in 2018 and the family has been launched in 2019
- 10 different CCT Led panels, development started in 2019 and the family has been launched in 2020
- 10 different CCT Led strip lights, which started development in 2019 and will be released in 2020
All-in-one system. Choose your CCT adjustable led luminaire of your choice. All products have high quality: colour rendering CRI 98 and a 5-7 year warranty.
WHAT IS THE REAL INNOVATION HERE?
There have been CCT lights on the market for a few years now, but all of them have used only pre-fixed switches, with a CRI of around 80. These products have also often been made of plastic, or thin sheet metal, with poor colour rendering. It's okay for customers to be free to choose the shade of light during installation, but why stop there?
"I wanted to make sure that when the interior changes, when new art is added to the wall or the carpet changes colour, the luminaires always bring out the best in the objects. So I designed a whole range of down lights that are beautiful, long-lasting, freely usable in any smart lighting system and with the highest possible lighting quality, CRI98. The luminaires are easy to install, and because they are low-voltage and have plug n play connectors, so no compromises!"
- Janne Halttu
TWO INSTALLATION METHODS
Basic:
Standard, where the luminaire comes with a transformer with a 3-position switch. The switch allows you to select a light temperature of 2900K/4000/5500K at the installation stage. The luminaire is TRIAC dimmable. The Led luminaires can be installed in chains.
Customizable:
Freely selectable from 2900-5500K. Selection is done by the desired lighting control system such as ZIgbee, DALI2, Z-Wave, etc. All lights are 24VDC parallel connected. Easy to add/remove Led lights. That is, the luminaire is purchased "Without its own transformer" and the luminaires are connected in parallel to one group transformer. This way all the luminaires behind the transformer are controlled by one single group and the CCT colour temperature of the luminaires can be freely adjusted and dimmed.
ACCESSORIES FOR THE PRODUCT FAMILY
The CCT product family also includes a complete IP54, pull-protected cabling kit with a 3 metre intermediate cable, and a choice of 3-piece or 6-piece splitter.
You can also use your own 3 pole cable for installation.
WHAT IS A COLOUR TEMPERATURE ADJUSTABLE LUMINAIRE?
A CCT-led light is a luminaire that allows you to change the colour temperature of white light. The range depends on the led luminaire, but can be as low as 2500K - 6500K.
The changes in colour temperature, which are clearly visible to the eye, range from yellowish light to bluish light. A temperature-controlled LED light changes the hue of the light so that the luminaire itself always has two LED circuits in parallel; cold and warm.
When the mixing ratio of the two is changed with a control, the colour temperature of the light changes. In addition to the possibility of changing the colour temperature of the light, the luminaires are dimmable.
Different materials and colours react differently to different light spectrums. It is very important to find the right colour temperature to suit your needs.
Read more on this topic:
Adjusting the colour temperature of spotlights, even according to the seasons
CCT adjustable led strip light
Janne Halttu
LedStore.fi entrepreneur who has built 4 detached houses for his family and renovated several properties. With 20 years of experience in construction, I have gained a lot of knowledge about structures and electrical work for several houses. I have been working with Led lighting for over 10 years. I am an expert in Led lighting, I write articles and I am a lighting designer. I often help clients with electrical and structural issues related to lighting and house construction.
