LED strip DOOR switch 12-24V, max. 192W

In stock at 95 pcs
SKU#: solder-DOOR
★
★
★
★
★
0 / 5 (0)

OVI switch for led strip. The perfect solution for cabinet doors, sliding doors or drawers. The OVI sensor switches on the lights when the obstacle leaves the sensor. Detection range 1-10cm in front. The lights go out when the barrier returns. Fits only with our 16x18mm led profile.

  • 12-24 Volts
  • Lights come on when the door is opened
  • max 192W (8A)
  • to be installed between the transformer and the led strip
  • used with a non-dimmable transformer
Read more
€ 29.35
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
  • Product description

    OVI switch for led strip. The perfect solution for cabinet doors, sliding doors or drawers. The OVI sensor switches on the lights when the obstacle leaves the sensor. Detection range 1-10cm in front. The lights go out when the barrier returns. Fits only with our 16x18mm led profile.

    Fits nicely on our 2500mm long aluminium profiles. Can be used with both 12V and 24V strips. Maximum load with 12V strip 96W and with 24V strip 192W (8A), but we recommend to calculate 10% clearance (i.e. 12V max. 87W and 24V max. 174,5W).

    Installation

    Tin soldered between the ribbon and the transformer (i.e. output 12-24V and input 12-24V).

    • Make sure you use a DC transformer and not a DC transformer. The current should be off when you turn the transformer on.
    • Make sure the plus "+" and minus "-" are connected correctly to the transformer. The plus and minus must not be cross-connected, but the plus must be connected to the plus and the minus to the minus.

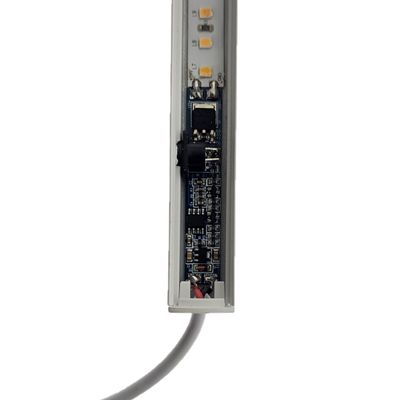

    • Tin the sensor with the tape in the bush, the Led tape goes to the sensor head and the supply wire away from the sensor.

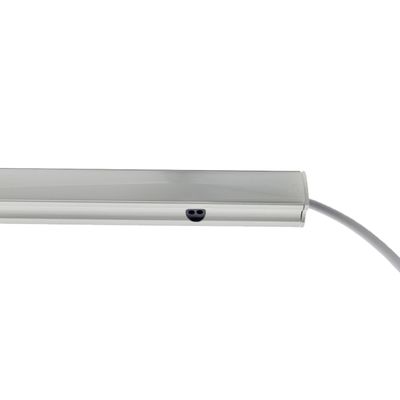

    • The OVI sensor is mounted by drilling an 8mm hole in the side of the 16x18mm profile. Minimum distance of the hole from the end of the profile is 40mm.

    Use of the OVI switch

    • The light comes on when the obstacle is 1-10cm in front of the sensor
    • The light goes out when the sensor is covered

    Size

    Dimensions of the pendulum switch 10x51 mm plus connecting wires at both ends.

  • Further information
  • Reviews
  • FAQ
  • CRI

OVI switch for led strip. The perfect solution for cabinet doors, sliding doors or drawers. The OVI sensor switches on the lights when the obstacle leaves the sensor. Detection range 1-10cm in front. The lights go out when the barrier returns. Fits only with our 16x18mm led profile.

Fits nicely on our 2500mm long aluminium profiles. Can be used with both 12V and 24V strips. Maximum load with 12V strip 96W and with 24V strip 192W (8A), but we recommend to calculate 10% clearance (i.e. 12V max. 87W and 24V max. 174,5W).

Installation

Tin soldered between the ribbon and the transformer (i.e. output 12-24V and input 12-24V).

  • Make sure you use a DC transformer and not a DC transformer. The current should be off when you turn the transformer on.
  • Make sure the plus "+" and minus "-" are connected correctly to the transformer. The plus and minus must not be cross-connected, but the plus must be connected to the plus and the minus to the minus.
  • Tin the sensor with the tape in the bush, the Led tape goes to the sensor head and the supply wire away from the sensor.
  • The OVI sensor is mounted by drilling an 8mm hole in the side of the 16x18mm profile. Minimum distance of the hole from the end of the profile is 40mm.

Use of the OVI switch

  • The light comes on when the obstacle is 1-10cm in front of the sensor
  • The light goes out when the sensor is covered

Size

Dimensions of the pendulum switch 10x51 mm plus connecting wires at both ends.

  • Delivery status In Stock
  • Brand Ledstore
  • Breadcrumbs Home Led Lights LED strip DOOR switch 12-24V, max. 192W
  • Category Led Lights
  • SKU solder-DOOR
  • Change Solder the switch block between strip and driver.
  • Size 10x55mm
  • Wattage 192
  • IP class IP21
  • Guarantee (year) 3 years
  • Approval CE, RoHS
  • Designed in Finland No
New product review

Be the first to write a review!

By rating you will be entered into a prize draw for a €50 gift voucher.

Customer questions
No questions yet.

WHAT IS CRI, THE COLOUR RENDERING INDEX

High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.

CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.


Colour rendering index

The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.

RA value

The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.



The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.

Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.


This measurement is from a 9W CCT Led spot
