LED strip light HEAT switch and dimmer, 12V-24V, max.96W/192W

Toggle switch and dimmer for LED strips. The perfect solution for LED strips in kitchen cabinets and other locations where the light fixture does not have a separate wall switch but is connected to a continuous power source. In addition to kitchen task lighting, applications include, for example, closets and various night lights, etc.

The motion sensor switch turns the LED strip on and off when you gently wave your hand in front of the switch from a distance of less than 10 cm. Dimming occurs when you leave your hand under the sensor.

Can be used with both 12V and 24V LED strips. Maximum load: 96W for 12V strips and 192W (8A) for 24V strips.

Installation

Solder the connection between the LED strip and the power supply (i.e., output 12–24V and input 12–24V).

• Make sure you use a DC voltage transformer, not a DC current transformer. The power must be turned off while soldering.
• Make sure the positive "+" and negative "-" terminals are connected correctly to the power supply. Do not cross-connect the positive and negative terminals; connect positive to positive and negative to negative.
• Install the circuit board with the LED strip so that the ends face each other (positive to positive, negative to negative) and solder them together.
• NOTE! Installation between the LED strip and the power supply.

Using the motion-activated dimmer

• To turn ON/OFF, wave your hand over the sensor once, at a distance of less than 10 cm.
• To dim or brighten the light, hold your hand in front of the sensor.

Dimensions

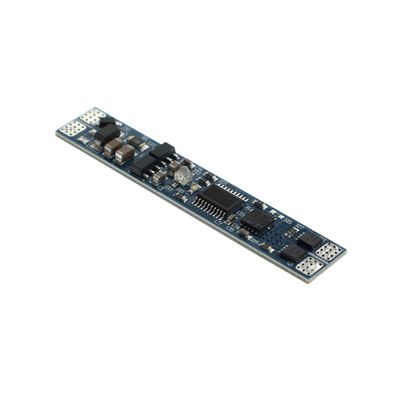

Dimensions of the motion-activated switch: 55x10x5 mm.
