DALI DT6 On/Off relay 300W/1000W
DALI DT6 ON/OFF relay 300W / 1000W

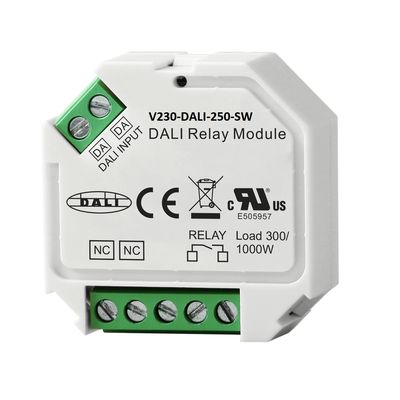

High quality DALI relay. Can handle max. 300W LED load or 1000W other load. The relay has one output which can be branched to more luminaires if required. The relay has screw terminals on the input and output. Can be used in a DALI2 system.
DALI DT6 ON/OFF relay 300W / 1000W
High quality DALI relay. Can handle max. 300W LED load or 1000W other load. The relay has one output which can be branched to more luminaires if required. The relay has screw terminals on the input and output. Can be used in a DALI2 system.
Works as a relay for any voltage between 8-230W, max 4,3A
Guaranteed for a whopping 5 years!
The power supply is only suitable for dry areas (IP21).
CE, RoHS, SELV
How do I use the DALI DT6 Relay puck?
Large voltage range
This relay controls voltages from 8-230V
MAX 4.3A current for inductive and resistive loads (e.g. water pump)
MAX 1.3A current for capacitive loads (e.g. LED lights)
Wiring
Easy to wire. It is just like any switch with a DALI interface.
Use as a DALI relay for LED lights
Switch any LED lights, up to 300W (230V) 1.3A maximum load.
- 12V LED light, max. 15W
- 24V LED light, max. 30W
- 230V LED light, max. 300W
Use as a DALI relay for a tap valve, for example
Switch any device, up to 1000W (230V) 4.3A maximum load. These are usually a water pump, valve etc. that you can control remotely.
- 12V devices, max. 50W
- 24V devices, max. 100W
- 230V devices, max. 1000W
Features of DALI DT6 relay coil
- Built-in DALI-2 interface, DALI DT6 device
- For many load types Max. max. output power 1000W
- Input and output with screw terminals, safe and reliable
- High compatibility with universal 8V-230V~ input
- Mini size, easy to install in a standard size wall box
- IP20 rated, suitable for indoor LED lighting applications
- 5 years warranty
What is DALI?
DALI dimming is a lighting control system that uses a digital protocol to communicate between the lighting controller and the lights themselves. This allows precise control of the brightness and colour of individual lights or groups of lights, as well as storing and restoring pre-programmed lighting conditions. DALI dimming systems usually consist of a DALI controller that sends commands and DALI-compatible luminaires that can receive and respond to these commands.
DALI works best when it is designed and built from the ground up. This is because it needs two control wires running between the devices.
The main features of a DALI system are
- It is a free protocol! Anyone can use it.
- DALI2 certification requires devices made by different companies to work together. LedStore only uses certified products.
- DALI is fairly easy to implement. You can install the power and control wires side by side, because they don't need to be protected. So 5 wires run everywhere: L, N, ground and 2 control wires (5×1,5 MMJ).
- The wires can be installed in any way you want, as long as the wires are within 100 m of the DALI BUS controller. The distance can be even greater if repeaters are used. The maximum recommended length of the DALI network is 300 metres.
- Since DALI uses digital signals for communication instead of analogue signals, the devices have the same dimming values. This makes control groups highly functional and accurate.
- The system's addressing system (DALI address) ensures that each device or group can be controlled individually.
- Up to 64 DALI ECDs can be controlled by a single DALI master.
- One DALI master can control up to 64 DALI ECG devices.
- One DALI master can control up to 16 groups.
- One DALI master can control up to 16 scenes.
DALI terminals
DALI is challenging for a beginner to understand. What do all the terms mean? Here are the terms in brief
DALI-master
A DALI master is a control centre or heart, which usually also contains the power supply for the DALI bus. The DALI-master is the brain of the system, controlling all the devices. The master can be programmed and used in different ways depending on the master.
- A USB connection is made between the computer and the master and the DALI software is installed on the computer.
- IOT version where the master is controlled by a mobile phone/tablet wirelessly over the same Wlan network.
DALI bus
Where the DALI Master is the heart of the system, the DALI bus is the artery. It carries all commands digitally between all devices. The bus is a 2-pole cable that connects to EACH DALI device! The maximum length of the bus is usually 300 meters. The bus can be extended with repeaters/power supplies or by adding DALI masters.
DALI bus power supply
This is usually included in the DALI master. Its function is to maintain the bus voltage, the bus carries a 100-300mA 16V voltage which carries information.
ECG
ECG stands for Electronic Contor Gear, which is any device that supplies voltage to lights etc. This includes DALI transformers and DALI relays. One DALI master can control up to 64 (OUTPUT) ECG devices.
ECD
ECD stands for Electronic Control Device, a device that controls devices such as DALI buttons and DALI sensors. One DALI master can control up to 64 (INPUT) ECDs.
Group
In DALI, devices can be added to groups. One DALI master can have up to 16 groups. The purpose of a group is to reduce the number of DALI signals in the network and to facilitate operation. When a group receives a command, for example, to dim, all ECG devices in that group will dim. The devices in the group therefore behave identically. If you want the devices in the group to be at different levels, this is a scene.
Scene
In DALI, scenes can be programmed/stored on buttons. There can be up to 16 scenes in one DALI master. These have values between 0 and 15. The purpose of a scene is to create different lighting modes.
For example, 50% of the output of a spotlight in a living room and 80% of the output of an LED strip light with a single command. This makes everyday use easier.
Advantages of DALI dimming
Dimmable DALI is an efficient and flexible lighting control technology that offers many advantages over traditional analogue dimming systems. Its accuracy, energy efficiency, scalability and ability to integrate with other building automation systems make it well suited to a wide range of applications in commercial, industrial and residential buildings. These are the benefits of DALI dimming:
- Accuracy: DALI dimming allows precise control of the brightness and colour of individual lights or groups of lights, which can be particularly useful in commercial, industrial and residential buildings.
- Energy efficiency: DALI dimming can help reduce energy consumption and lower operating costs by allowing precise control of the brightness and colour of lights.
- Scalability: DALI dimming systems can be easily extended to control large numbers of lights, making them well suited to large commercial or industrial projects .
- Integration: DALI dimming systems can be easily integrated with other building automation systems, such as HVAC and security systems, allowing better control and automation of building lighting.
- Flexibility: DALI dimming allows a wide range of options for controlling lights, from simple on/off switching to more advanced control options such as setting and resetting pre-programmed lighting conditions.
- Common standard: It ensures that devices from different manufacturers always work in the same way when connected together.Common standard: It ensures that devices from different manufacturers always work in the same way when connected together .
- Easy to install: thanks to DALI fibre optic technology, you don't need to split lights into zones or keep track of wiring. DALI systems have two connected wires. These wires control all the devices. Installers don't have to keep track of everything because they don't need to know how the lights will eventually be installed.
- Easy to change: you can make changes to the settings quickly. After a while, you might want to change the lights and get something nicer. With centralized software, you can easily change lighting profiles
If you want to learn more about the topic, we have written about DALI dimming in our blog under the title DALI dimming: digital lighting system
- Delivery status In Stock
- Brand Ledstore
- Breadcrumbs Home Lighting controlDALI systemDALI Control Gear DALI DT6 On/Off relay 300W/1000W
- Category DALI Control Gear
- SKU DALI-V230-250-SW
- Wattage 10
- Installation The installation must be carried out by a professional electrician.
- Voltage (V) 230
- Immennys Not dimmable
- Size 46x45x21mm
- Length of the package 5
- Height of the package 3
- Width of the package 5
- Approval CE, RoHS, IP21, SELV
- PDF V230-DALI-250-SW-Manual.pdf
- PDF V230-DALI-250-SW-Manual.pdf
