Custom light mirror, with CCT led lights and Zigbee control

LED FOUR-COLUMN INDICATOR LAMP, colour temperature adjustable, dimmable

Create your own light mirror, almost any shape will do!

Features of the luminaire

We can supply you with mirrors made to your own dimensions. Our made-to-measure mirrors have a freely adjustable light colour temperature between 2700 and 5500K, as well as a dimming function. The size of the mirror can be selected in increments of 10 cm, from 60 cm to 180 cm. In addition to the dimensions, you can also choose to have a mirror with or without a 3 cm wide frosted edge. A frosted edge allows more light to pass through, while a mirror without a frosted edge allows all the light to pass indirectly through the wall. Please note that the colour and gloss level of the wall have a significant influence on how much light is indirectly reflected by the mirror.

LED strip on the mirror

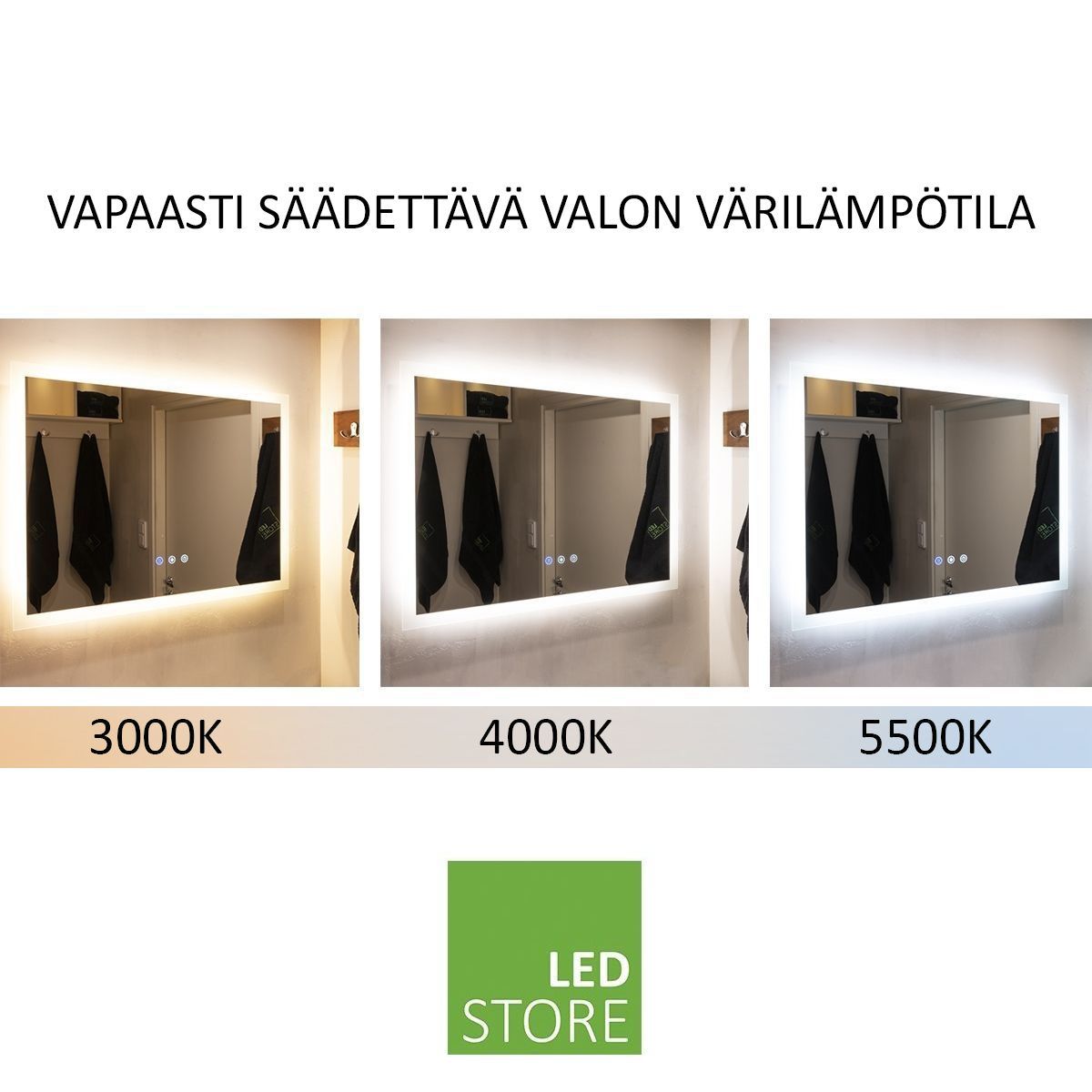

We use the best high colour rendering SOLO 14.4W CCT LED strip (CRI98) in our bespoke mirrors, meaning all colours are reproduced as intended. The colour temperature of the LED strip light can be adjusted between 2700-5500K. The Led strip gives 700 lumens indirectly per meter. SOLO 14,4W/m CCT is flat, i.e. it has no spots that would reflect off a wall or tile. The high colour rendering and adjustable light colour temperature also ensure that the light is always just right for the space.

Light mirror frame

The mirror is made of 4 mm tempered glass, to which a 40 mm aluminium profile is glued, to which the LED strip is attached. The aluminium profile allows for easy vertical or horizontal installation, according to your choice. If you have any special requirements regarding the mirror mounting holes or their location, please contact us when placing your order. Available with or without a 3 cm frosted edge. The starting size is 600x600 mm.

Light mirror control

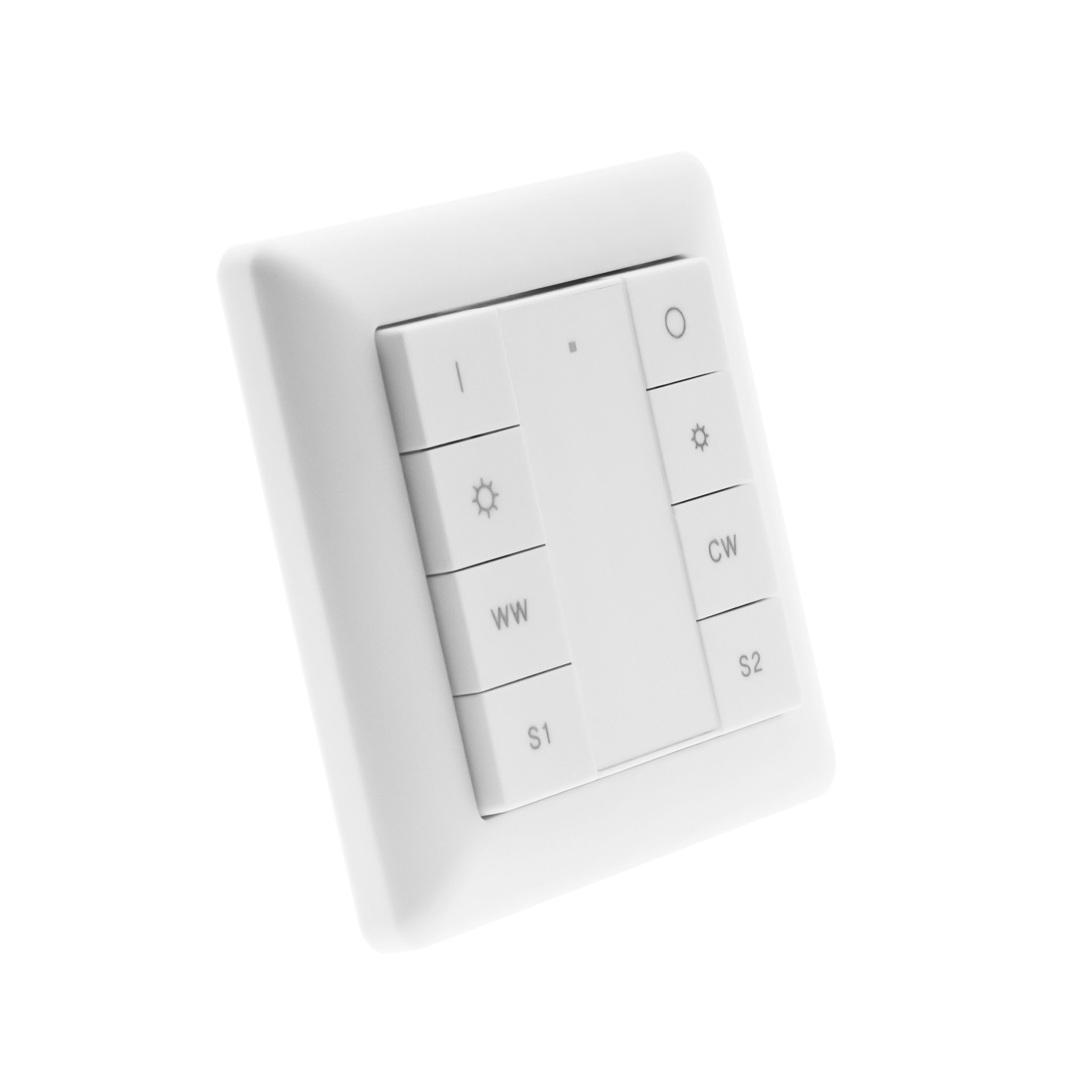

With a custom-made light mirror, the colour temperature and dimming of the light is controlled wirelessly by a push-button. The button can be freely attached anywhere using screws or the supplied frame tape. The button can also be mounted on standard 55 mm frames such as EXXACT, JUNG and GIRA, giving you a single row of buttons. The button is battery operated and requires no wiring. You can choose the colour of the button supplied. The colour options for the P1CCT-ZG button are white and black.

Light mirror transformer

A high quality Zigbee power supply and wireless control button are mounted on the back of the light mirror. As the transformer is Zigbee-enabled, you can also connect the control to your home automation system such as Philips HUE, Samsung SmartThings, Conbee or other Zigbee 3.0 systems. The mirror can also be switched on and off with a traditional 230V on/off light switch. The transformer has an internal memory, which means that if used from a wired switch, the mirror will always be switched on to the settings of the previous use.

Water and dust resistance

The IP rating is a standard that defines the level of protection of the luminaire against different environmental conditions. The standard uses two numbers, the first indicating protection against dust (0, no protection - 6, dustproof) and the second against moisture (0, no protection - 8, resistant to continuous immersion in water). You can decide on the classification for your light mirror that is appropriate for your use.

Why choose this product?

• You get the mirror that suits your needs
• The IP rating you need
• Colour temperature adjustable
• Dimmable
• Perfect colour rendering, CRI98

If you need a product with dimensions more precise than 10 cm or an otherwise different solution, please contact us and we will give you a quote. Other sizes and shapes are also available, so please feel free to ask for more information. We are happy to help!

Delivery times for mirrors are typically around 4 weeks.
