LED strip CCT control and dimming 12-24V, max. 192W for aluminium profile installations
Fits beautifully into our aluminium profiles. Can be used with both 12V and 24V ribbons. Maximum load with 12V strip 96W and with 24V strip 192W (8A). With this regulator you do not need a dimmable transformer.

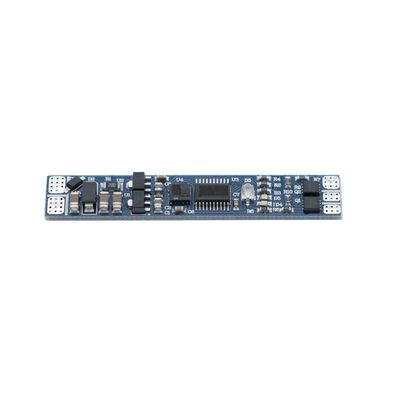

Dimmer and CCT controller for profile-mounted, CCT luminous colour temperature adjustable LED strip. The perfect solution for kitchen cabinet LED strip and other applications where there is no separate wall switch for the luminaire but the luminaire is powered by a continuous current. In addition to kitchen task lighting, it can also be used for wardrobes and various night lights etc.
Fits beautifully into our aluminium profiles. Can be used with both 12V and 24V ribbons. Maximum load with 12V strip 96W and with 24V strip 192W (8A). With this regulator you do not need a dimmable transformer.
Installation
Plug in between the ribbon and the transformer (i.e. output 12-24V and input 12-24V).
- Make sure you use a DC transformer and not a DC transformer. When switching, the power should be off.
- Make sure the plus "+" and minus "-" are connected correctly to the transformer. The plus and minus must not be cross-connected, but the plus must be connected to the plus and the minus to the minus. The information can also be found on the back of the component.
- Make sure that the warm and cold tones of the tape go to their correct positions on the component.
Using
- Detection range: ≤10cm.
- Light ON/OFF adjustment: move your hand over the sensor once, at a distance of 10cm. Wait for the result (1,5 sec.).
- To switch between CCT adjustment mode and dimming mode: move your hand over the sensor twice, at a distance of 10cm. Wait 1.5 seconds and the sensor will flash either orange (CCT mode) or blue (dimming mode). In other words, wait calmly for the flash.
- Hold your hand in front of the sensor (at a distance of 10cm) to adjust the colour temperature of the light (orange mode) or the brightness (blue mode).
- The sensor remembers the previous hue and brightness used and lights up with the same settings when it is switched on again.

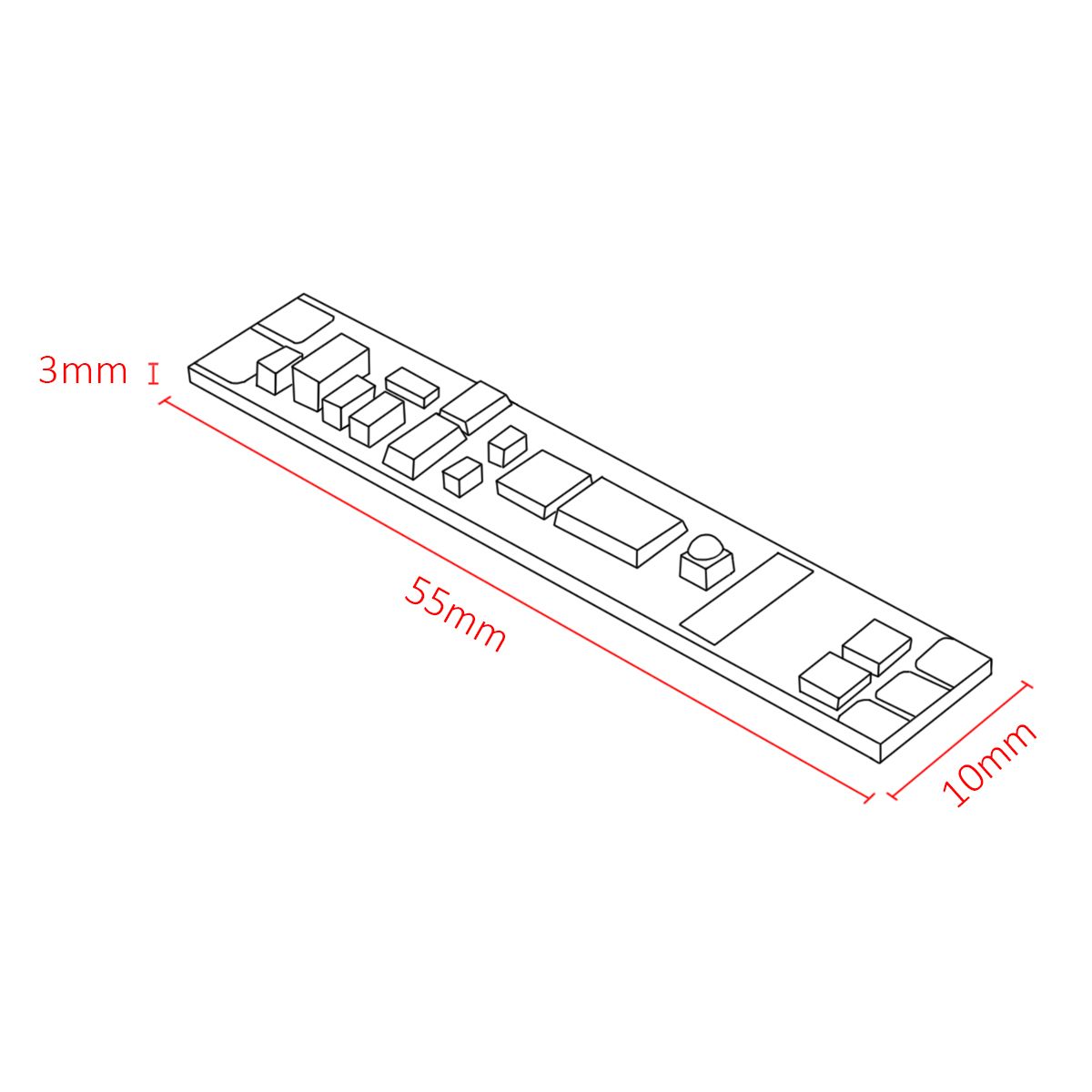

Size
Dimensions: 10x55mm
- Delivery status In Stock
- Brand Ledstore
- Breadcrumbs Home Led Lights LED strip CCT control and dimming 12-24V, max. 192W for aluminium profile installations
- Category Led Lights
- SKU solder-CCT
- Wattage 192
- Installation
- Size 10x55mm
- Length of the package 17
- Height of the package 1
- Width of the package 7
- Change Solder the CCT control and dimmer swich between the CCT led strip and the driver.
- Approval CE, RoHS
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
Read more on this topic:
Colour rendering of LEDs - What is the difference between CRI and Ra-value?
