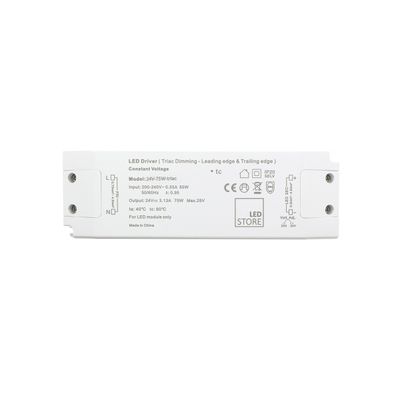

24V dimmable LED DRIVER 75W, TRIAC, for LED strip, IP20
Dimmable TRIAC transformer for example for 24V LED strips. Can be dimmed with 230V rotary dimmers on the primary side. Suitable for indoor use (IP20).
Dimmable TRIAC transformer for example for 24V transformers. Can be dimmed with 230V primary side rotary dimmers. Suitable for indoor use (IP20). The wires are connected to the transformer with screw connectors.
TRIAC dimming (both leading and trailing edge).
The transformer is most often used with 24V LED strips:
- max. 4,5m 14,4W/m for LED strip
Input: 200-240V ~ 0.55A 85W 50/60Hz
Output: 24V --- 3.13A 75W max. 25V

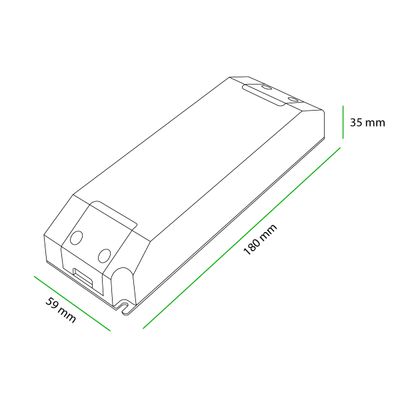

Size:
Length 180 mm
Width 59 mm
Height 35 mm
CE, RoHS, SELV, IP20
- Delivery status In Stock
- Brand Ledstore
- Breadcrumbs Home LED accessoriesLED strip driver 24V dimmable LED DRIVER 75W, TRIAC, for LED strip, IP20
- Category LED strip driver
- SKU 24V-75W-triac
- 75
- 75W triac 24V IP20
- 180*59*35mm
- 19
- 4.5
- 6.7
- CE, RoHS, IP20, SELV
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
