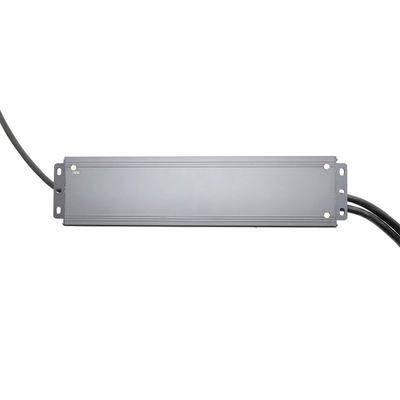

24V dimmable LED DRIVER 600W, TRIAC, for LED strip, IP66
TRIAC dimmable power supply 24V for LED strip, 600W load capacity. Moisture-proof IP66, suitable for outdoor and humid areas. The transformer can be dimmed from the primary side, with traditional rotary dimmers.
TRIAC dimmable power supply 24V for LED strip, 600W load capacity. Moisture-proof IP66, suitable for outdoor and humid areas. The transformer can be dimmed from the ensio side, with traditional rotary dimmers. The transformer can be dimmed from the ensio side with traditional rotary dimmers.
The transformer does not have a plug, nor an LED strip connector/DC plug. Instead, the power supply has connecting wires at both ends with a length of about 20 cm.
The power supply is also suitable for damp locations and outdoor use (IP66).
TRIAC dimming with leading and trailing edge dimmers.
The transformer is mainly used for LED strips (24V). Can be used for:
- max. 36m 14,4W/m led strip
- max. 25,8m 17W/m led strip
Input: 200-240V ~ 4A 50/60Hz
Output: 24V --- 25A 600W max. 24V
Size:
Length 322 mm
Width 78 mm
Height 43 mm
CE, RoHS, SELV, IP66
- Delivery status In Stock
- Brand Ledstore
- Breadcrumbs Home LED accessoriesLED strip driver 24V dimmable LED DRIVER 600W, TRIAC, for LED strip, IP66
- Category LED strip driver
- SKU 24V-600W-IP67-triac
- 600
- 600W triac 24V IP66
- 322*78*43mm
- 34.5
- 7.8
- 8
- CE, RoHS, IP66, SELV
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
Read more on this topic:
Colour rendering of LEDs - What is the difference between CRI and Ra-value?
