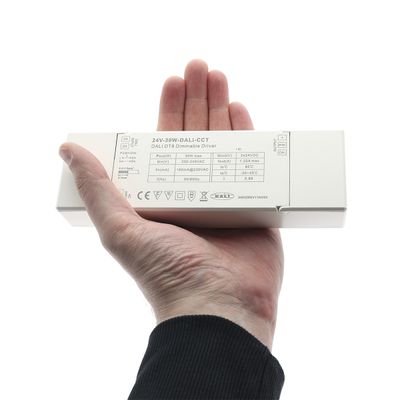

24V DALI DT8 LED DRIVER 30W, dimmable, IP20, for CCT LED lights

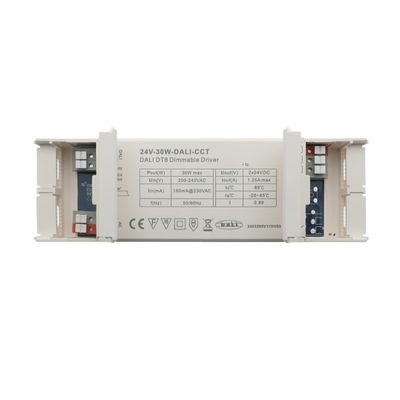

High quality DALI power supply for 24V CCT led strip, 24V CCT spotlights, 30W load capacity. The power supply has one output, which can be branched to several strips if necessary (no quick connector). The power supply has screw connectors on the input and output. The transformer can be dimmed in a DALI system. Supports the latest DT8 protocol.

You can connect e.g. a total of 1,8m Led Store CCT 14,4W/m led strip (24V) to this power supply.

Warranty up to 5 years!

The power supply is only suitable for dry areas (IP20).

Dimensions

Length: 170mm
Width: 52mm
Height: 28mm

CE, RoHS, SELV, IP20.

What is DALI?

DALI is a cabled system where the control signal is passed via a 2-pole low voltage between all DALI devices.DALI needs a MASTER unit with which all devices communicate. The DALI protocol has been updated several times, most recently bringing the DALI system into the modern era (DT8) which allows only one address for CCT/RGB adjustable devices. Previously (DT6) each channel had to have its own DALI transformer, e.g. RGB required 3 transformers.

DT6 ballast (transformer) one DALI address and one channel, i.e. monochrome led light. Supports dimming. DALI 102 and 207 protocols.

DT8 ballast (transformer) with one DALI address and multiple channels, i.e. multi-colour LED light. Supports dimming, RGBW and temperature control.Compatible with DT6. DALI 209 protocol.
