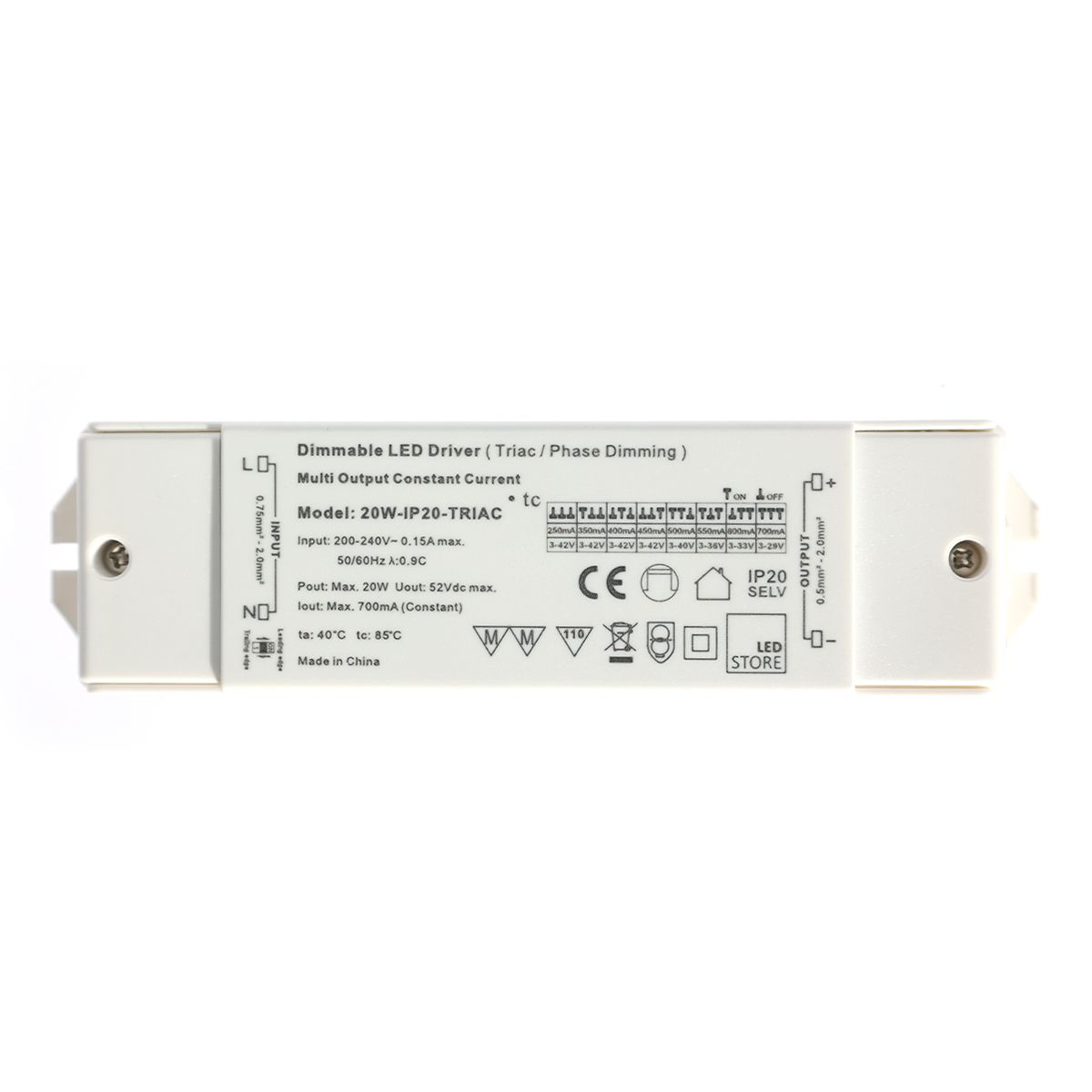

20W TRIAC dimmable DRIVER, 250-700mA adjustable

TRIAC-dimmable mA transformer

Adjustable current range: 250–700 mA. The current is selected using DIP switches. Suitable for most LED lights thanks to its adjustability.

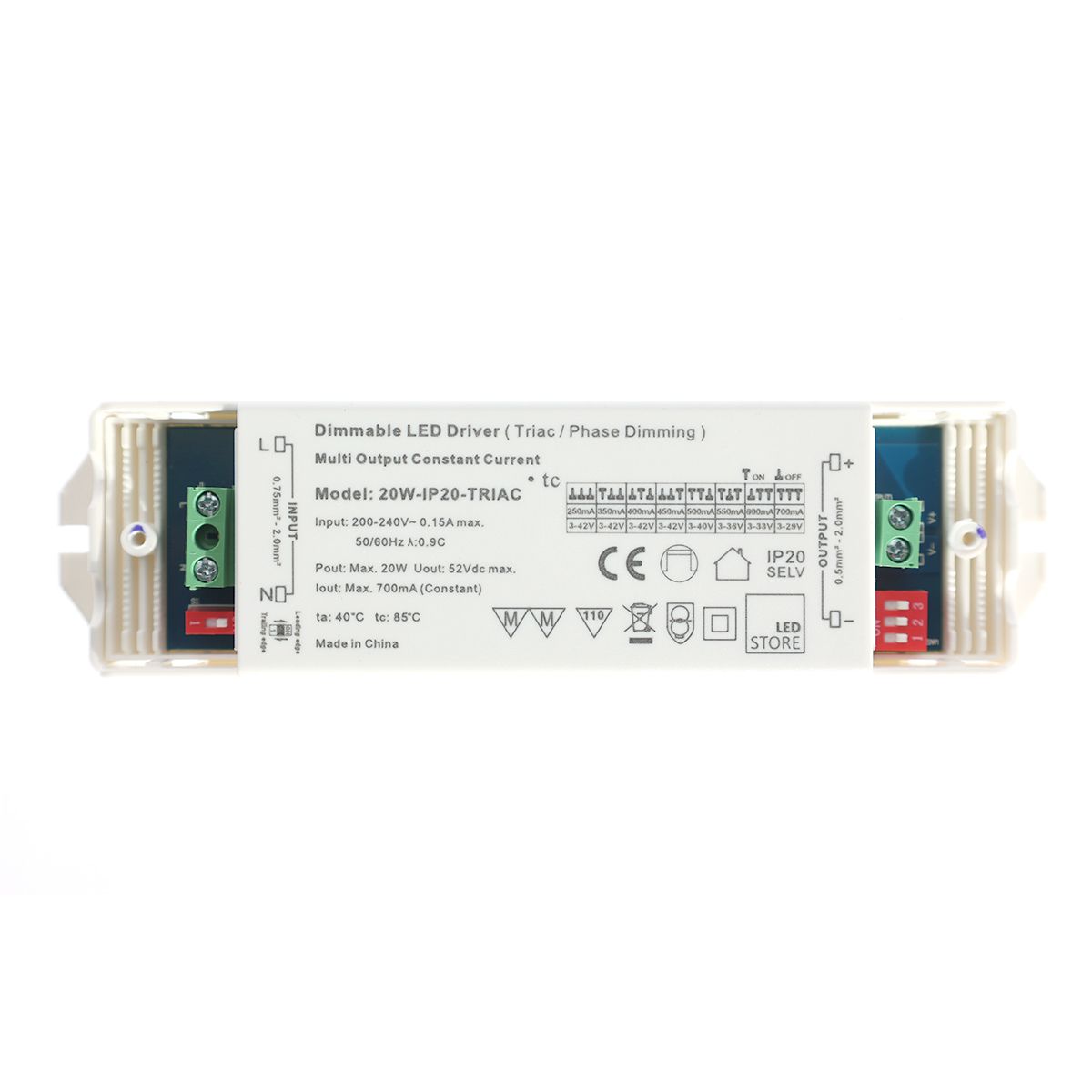

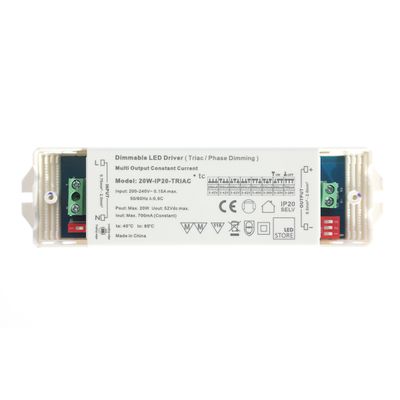

This is a TRIAC-dimmable constant-current transformer suitable for LED lights. The transformer features a DIP switch for selecting the dimming mode. You can choose between leading-edge or trailing-edge dimming.

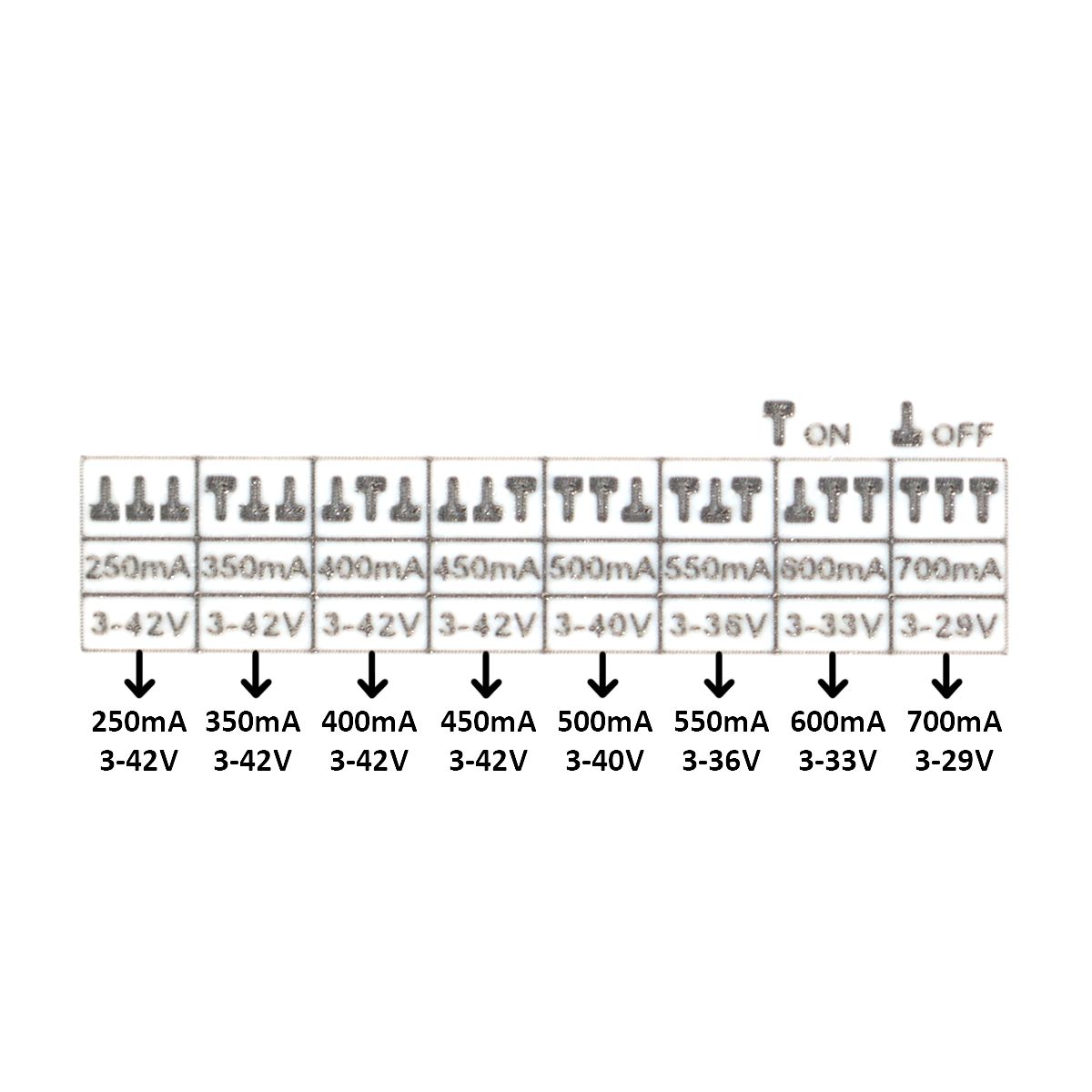

DIP switch settings:

• 250 mA 3–42 V
• 350 mA 3–42 V
• 400 mA 3–42 V
• 450 mA 3–42 V
• 500 mA 3–40 V
• 550 mA 3–36 V
• 600 mA 3–33 V
• 700 mA 3–29 V

SELV, CE
