VOID plasterable round HIDDEN GU10 and MR16 Lamp frame, IP44 black

Black round PIILO IP44 luminaire frame for GU10/MR16 base

LedStore's black round PIILO lampholder, i.e. the lamp holder and the lamp holder of your choice, has been created for spaces and needs where it must be possible to change the lamp and the lamp holder must not be visible on the ceiling surface. We recommend using a halogen replacement LED bulb with this product, as LED is energy efficient, produces less heat and has a long life.

Stylish and invisible circular bezel

This black frame is perfectly shaped. The frame is not visible on the roof surface because it is machined into the roofing material. This lamp holder can be adjusted for different material thicknesses. Matte finish and 20 mm recessed light source. Due to the recessed light source, glare is reduced. The genuine glass lens makes the frame splash-proof (IP44).

You can change the bulb by pulling out the central part with the suction cup.

The frame measures 72 x 40 mm, with wings 55 x 25 mm on two sides for mounting. Cutting opening is 72 mm (75 mm at the screws).

Installation

This lamp holder has two wings on the sides of the circular frame. These wings are adjustable for material thicknesses from 0.1 to 20 mm, so you can mount it either behind or in front of the roofing material. The most common installation is on plasterboard.

The most common installation method is on plasterboard:

1. Pull the wires and install the brackets where you want to install the luminaires
2. Mark the position of the wires.
3. Mark where you want to locate the fixtures where you want to install the lights.
4. Cut a 72 mm hole (plus a couple of millimetres extra for the wing screws).
5. Adjust the wings to the desired thickness of the screed.
6. Mount the lamp holder base with two small screws.
7. Add more plaster, sand, add more plaster and sand some more..
8. Paint or finish the surface as desired.
9. Pull the stem out and attach the bulb to the stem.
10. Fit the bulb into the lamp holder.
11. Push the centre section into the ceiling.

IP44 protection for damp locations

The clear lens in this frame is made of genuine glass. The lens is glued to the frame, preventing water splashes from entering the frame.

Led bulb options

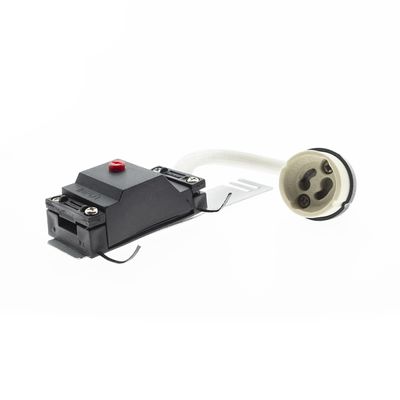

GU10 LED bulb

GU10 bulbs use direct mains power We have several GU10 models, including warm 3,000K and neutral 4,000K white, as well as a colour temperature adjustable Zigbee bulb.

The mounting space in the inner cover with GU10 should be at least 110 mm including the frame, GU10 bulb and holder.

MR16/GU5.3 LED lamp

MR16 (GU5.3) bulbs use 12V DC voltage and therefore require a power supply. We have several MR16 models, including warm 3 000K and neutral 4 000K white. We also offer 12V power supplies for different sizes of luminaires.

The mounting space in the inner cover with MR16 should be at least 90 mm including frame, MR16 lamp and lamp holder.

Safety note for installation

For this product you must take into account all fire regulations made for the installation of halogens, as it is possible to install a halogen lamp in this frame and stem. The halogen may reach temperatures above 200 degrees Celsius.

Information from

LedStore's KEHYS+KANTA package is intended for applications where a standard and interchangeable bulb is required. We recommend using a high quality LedStore LED bulb in the frame, so that replacement is less frequent and the heat load generated by the light source is minimised.

When choosing a flush-mounted LED luminaire with replaceable bulb, it is important to note that the luminaire must be surrounded by fire protection in the same way as halogen lamps. If no such protection is fitted, the cost should be taken into account when selecting the luminaire. The protection is required for fire safety reasons, as it is possible to inadvertently replace an LED bulb with a halogen bulb that can heat up to over 200 degrees Celsius. Such damage cannot occur with LED spots whose lampholder type/module is not identical to that of previous halogen lights.

Finally

We recommend using LedStore's advanced GU10 or MR16 led bulb. This light achieves a staggering colour rendering index of almost 100 points, so the light reproduces the colours of the environment exactly as they are intended. Energy savings are to be expected, as one 6W spot is equivalent to as much as 50W halogen with the same light output. So get a powerful spot that lasts and is available in dimmable or even temperature-controlled versions with ZIGBEE smart lighting.
