SQ033 CCT Led Lights 3 pcs SET with Control

3 pcs SET - LED downlight KANTTI directional SQ033, 9W

This award-winning KANTTI SQ033 set is ideal for general home lighting in spaces of around 3-4 square metres. The KANTTI LED downlight is directional, colour temperature adjustable, dimmable, CRI91 and IP44. Available in black, white or brushed aluminium frame.

The spotlight has a 28 degree directional bezel, so it gives beautiful, bright light exactly where you need it. This set allows you to adjust the light colour temperature (CCT) and brightness freely. The fixture is available in a choice of brushed aluminium, white or black body colour, giving you just the right look for your space.

SQ033 CCT led lights with wireless control

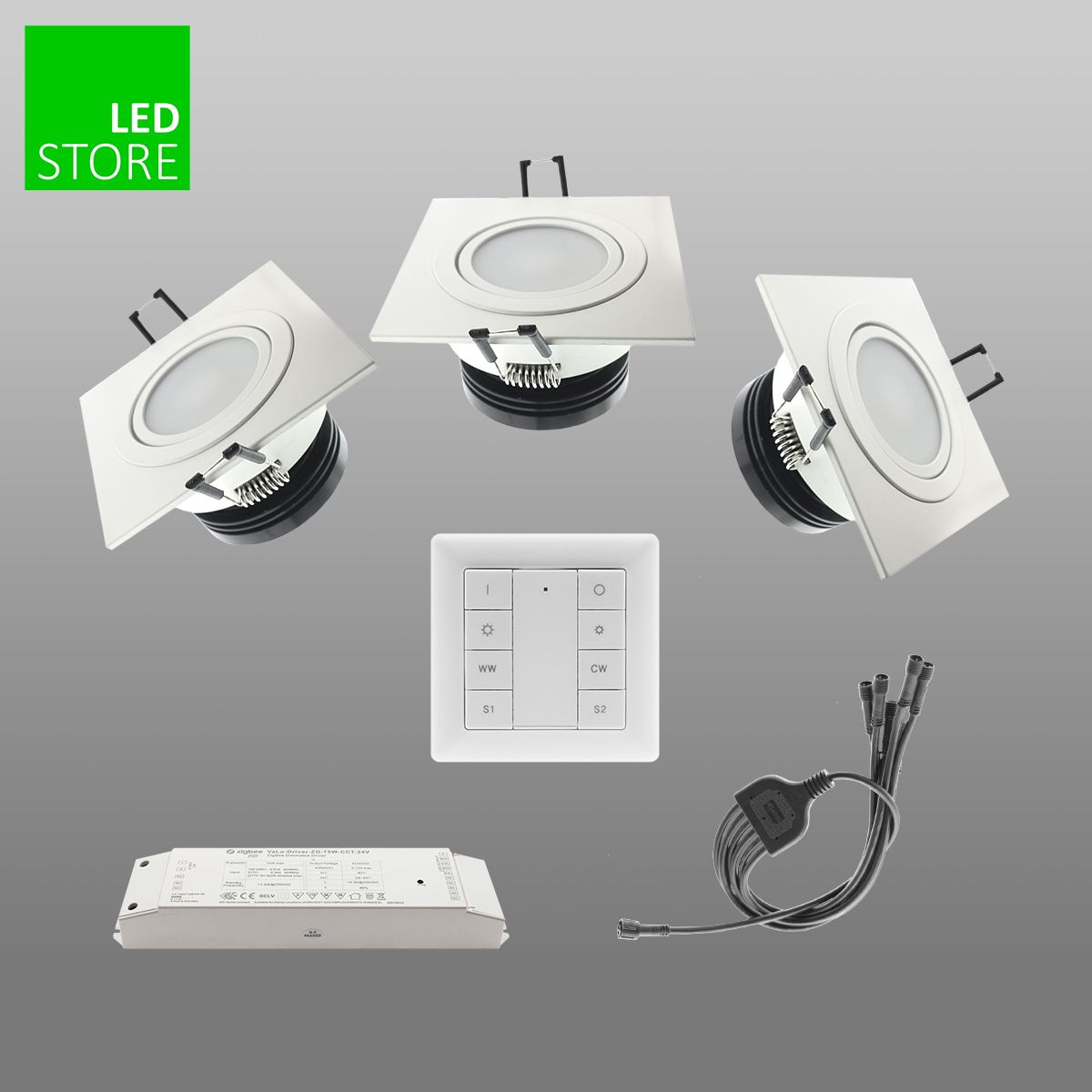

This set includes led lights with a transformer for wireless control, suitable for colour temperature controllable (CCT) lights up to a max. 3 light groups. The products included in the set are:

• SQ033 Led light, 3 pcs (white, black or brushed aluminium)
• VaLO Zigbee 50W 24V Led transformer
• VaLO Zigbee CCT wireless controller, choice of black or white
• 3 pcs. 3 m cables IP54 with plug n play connectors
• 1-3 spot splitter / splitter support, 3-wire, 1 pc

Please note that even if the input power of a single spot is 9W/spot for group control, the power requirement increases by 25%. We have sized the transformer accordingly. The transformer can also be larger than this, there is no disadvantage.

NOTE! The lights and wiring harnesses are IP54 rated, and the light is waterproof even from behind. The transformer of the light set is IP21 and cannot withstand e.g. splash water. If you would like any changes to the set, or have any questions about lighting design for your specific space, please leave a message in the request for quote section, or contact us directly.

A'Design Award winner

The TUNNELMA LED downlight range was awarded in the Lighting product and fixtures design category in 2023.The Tunnelm product family was developed by Janne Haltu. At the core of his lighting design expertise is his strong experience in building construction and building services engineering.

Read more about the winning entry - Led Store's winning product page

Zigbee wireless control

This set uses the ZIGBEE protocol to control lights. Zigbee is a universal protocol widely used by the biggest names in the industry, such as Philips HUE, Ikea Trådfri, Samsung Smart things, Google, Amazon, etc..

With this kit you can control the lights with the included control button, but you can also integrate these lights into a smart home such as a Philips HUE system (requires a system HUB) and control the lights with your mobile devices.

With the wireless controller included in this product set, you can:

• Dim the lights perfectly from 0-100%, no flicker
• Freely adjust the color temperature between warm and cool white
• Store two favorite settings

The external dimensions of the button without the bezel are standard 55 mm, so it also fits other manufacturers' bezel, such as SCHNEIDER, ENSTO, GIRA, JUNG, MERTEN.

Read more about The benefits of smart lighting (opens in new window)

KANTIKAS LED LAMP with directional light source

The SQ033 DIRECTIVE KANTIS is suitable for general lighting from private homes to public spaces. In terms of luminous intensity, the spot is equivalent to a minimum 50W halogen, +600 lumens. The luminaire is equipped with an opal diffuser for light balancing, which can be removed if a higher amount of light is desired.

LED ADJUSTABLE CANT SQ033 has a cast aluminium body and module. The solution achieves maximum thermal conductivity and a safe operating temperature (around 50 degrees Celsius). The low operating temperature and the high quality LED circuit guarantee a long lifetime of +50 000h and we grant a 7 year warranty on our manufactured luminaire!

The LED module and transformer of the light are removable and replaceable.

Installation notes

Led lights

The light has a solid body and is very low, only 50mm high! The light will therefore fit into a typical roof structure with only 48x48mm insulation and 13mm plasterboard under the vapour barrier. We recommend installing a sheet or piece of plasterboard above the luminaire to prevent the insulation from sagging. The diameter of the mounting hole can be 78-80mm. The outer diameter of the spot is 90mm.

Each luminaire has a three-pole IP54 male connector ready for use with our wiring accessories.

Transformer

The Led transformer fits through the mounting hole into the mounting space, but as the transformer is 21cm long, you will need a 15cm mounting height to avoid the need for a separate mounting hole. Our power supplies are long lasting and come with a 5 year warranty. Both ends have a screw connector for wiring for easy installation.

Mounting wires

The low current cables for the colour temperature controlled LED luminaires are 3 metres long and the splitter is 30cm long. You can start with the output cable (50cm), and connect the spot connection cables with quick connectors to the splitter supplied with the set.

Installation instructions

Here are several guides on Zigbee technology and installation. All guides open in a separate window. Read part one to learn about wireless pairing of transformer and button :) You will also receive a paper user manual in English with the set.

Zigbee lighting control Part 1

Review of Zigbee devices and pairing

Zigbee lighting control Part 3

Zigbee from an installer's perspective

Zigbee Pairing, Part 5
