Simple IP21 silver FRAME for GU10 or MR16

Silver round IP21 lamp holder for GU10/MR16 socket

LedStore silver round simple lamp holder with optional lamp holder. Available with MR16 or GU10 lamp holder.

Small mounting hole

This silver frame has been designed so that only a small mounting hole of 65 mm is required in the ceiling for installation. The frame is held in place by two springs which are supplied with the frame. The lamp can be replaced by turning the inner part of the frame, without having to take the whole frame down.

Frame size 80 x 2 mm.

IP21 protection for dry areas

This frame is IP21 only and does not protect the bulb from water.

Stock options

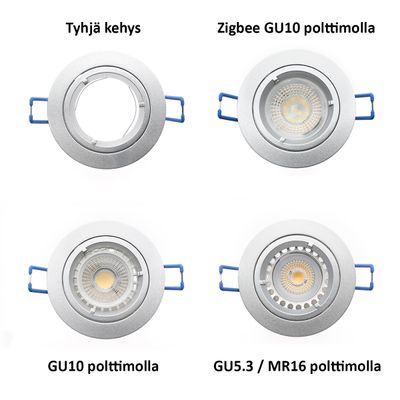

This holder is suitable for GU10 and MR16 (GU5.3) bulbs.

Led bulb options

GU10 LED bulb

GU10 bulbs use direct mains power. We have several GU10 models, including warm 3 000K and neutral 4 000K white, as well as a colour temperature adjustable Zigbee bulb.

The mounting space in the inner cover with GU10 should be at least 90 mm including the frame, GU10 bulb and the holder.

MR16 (GU5.3) LED lamp

MR16 (GU5.3) bulbs use 12V DC voltage and therefore require a power supply. We have several MR16 models, including warm 3 000K and neutral 4 000K white. We also offer 12V power supplies for different sizes of luminaires.

The mounting space in the inner cover with MR16 should be at least 70 mm including frame, MR16 lamp and lamp holder.

Safety note for installation

For this product you must take into account all fire regulations made for the installation of halogens, as it is possible to install a halogen lamp in this frame and stem. The halogen may reach temperatures above 200 degrees Celsius.

Information from

LEDStore's KEHYS + KANTA package is intended for applications where a standard and interchangeable bulb is required. We recommend using a high quality LedStore LED bulb in the frame, so that replacement is less frequent and the heat load generated by the light source is minimised.

When choosing a flush-mounted LED luminaire with replaceable bulb, it is important to note that the luminaire must be surrounded by fire protection in the same way as halogen lamps. If no such protection is fitted, the cost should be taken into account when selecting the luminaire. The protection is required for fire safety reasons, as it is possible to inadvertently replace an LED bulb with a halogen bulb that can heat up to over 200 degrees Celsius. Such damage cannot occur with LED spotlights whose lampholder type/module is not identical to that of previous halogen lights.

Finally

We recommend using Led Store's advanced GU10 or MR16 led bulb. This light achieves a staggering colour rendering index of almost 100 points, so the light reproduces the colours of the environment exactly as they are intended.
There are also energy savings to be had, as one 7W spot is equivalent to as much as 50W of halogen at the same light output. So get a powerful spot that lasts and is available in dimmable or even temperature-controlled in ZIGBEE smart lighting.
