Recessed LED PLAFOND 240 — UPPOAVA, dimmable, 17W, high CRI90

In stock at
SKU#: Plafond240

Dimmable and moisture-proof (IP54), the UPPOAVA series Led plafond 240 provides a bright and sleek look that makes it ideal for general lighting throughout your home. The plafond has a flat surface, no convex dome. The plafond can also be surface mounted using a 50 mm high surface mounting frame.

Read more
from € 0.00
VAT 0% | 24%
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
  • Product description

    Led Plafond 240

    The dimmable and moisture-proof (IP54) UPPOAVA series led plafond 240 provides bright lighting and with its sleek appearance is suitable for general lighting throughout your home. The luminaire is damp-proof (IP54), so it can be used in damp areas and outdoors. A good alternative to spotlights.

    Technology

    The UPPOAVA PLAFONDI 240 17W luminaire is equivalent to two 18W fluorescent tubes, i.e. around 1200 lumens. The LED circuits are mounted directly on the body. This solution achieves maximum thermal conductivity and a safe operating temperature (below 50 degrees Celsius). The low operating temperature ensures a long lifetime of 50 000 hours.

    Colour rendering index (CRI) is over 90 and thermal conductivity is excellent. High quality components ensure that the light colour does not fade.

    The LED PLAFONDI 240 will not be affected by frost, rain or snowstorms if it is installed on the roof of a carport or terrace. The PLAFONDI 240 LED luminaire is widely used as a replacement for spotlights in general lighting both outdoors and indoors. The light provided by the luminaire is more uniform than a spotlight and is ideal for general lighting. In addition, the matt surface completely hides the LED circuits from view.

    The light colour can be selected from either 3000K (warm white) or 4000K (neutral white).

    <img src="{{media url="wysiwyg/Py_re_t_Panels.png"}}" alt="Round Led Panels" width="248" height="247" />

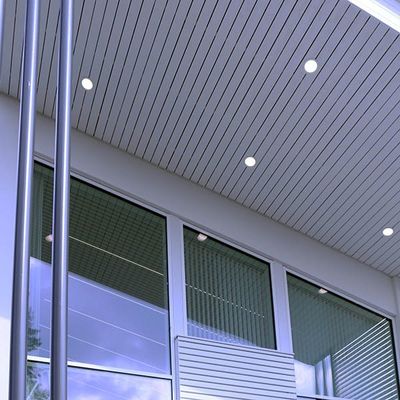

    See here for installation examples and ideas

    Installation

    The luminaire is recessed and the mounting hole size is 225 mm. The luminaire body is aluminium and powder coated matt white with a matt acrylic diffuser.

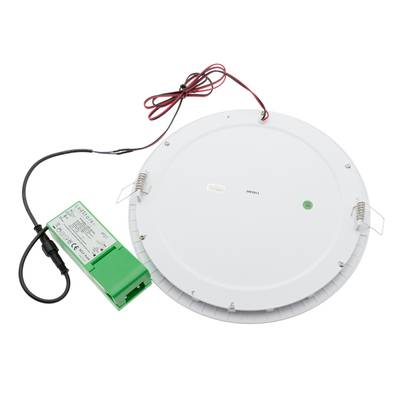

    Each luminaire is supplied with its own power supply. The power supply has a quick connector for easy installation and is chainable. The power supply fits through a mounting hole in the false ceiling.

    The low operating temperature allows the luminaire to be installed against wood or plaster. The Led PLAFONDI 240 fits into a typical roof structure with only 48x48mm of reinforcement and 13mm plasterboard under the vapour barrier. We recommend installing a piece of board or plasterboard above the luminaire to prevent the insulation from sagging.

    The luminaire can also be surface mounted by ordering a surface mounting frame.

    Dimming

    Dimming is possible with TRIAC dimmers from the ENSIO side. Suitable dimmers include the Schneider EXXACT and ABB Jussi series dimmers that we sell. The floating plafond 240 18W luminaires can be connected to the same dimmer in the ABB Jussi series (70W) in 3 pieces and to the Schneider (300W) dimmers in 16 pieces.

    Each luminaire is supplied with its own dimmable power supply. A single power supply for one luminaire solves a problem specific to halogen luminaires: a single power supply is subject to heavy load, gets hot and breaks down the luminaires. We have moved the power supply in the UPPOAVA range of luminaires separately from the luminaire. This solution ensures a shallow installation depth and prevents the power supply from heating up the luminaire. The separate power supply can be placed within 5 metres of the luminaire. The power supply is splash-proof IP44 and has 230V in and 700mA out (for the luminaire).

    The LED luminaires are compatible with home automation (e.g. KNX and Talomatti) and work seamlessly as part of a smart home.

    Why choose PLAFONDI 240?

    • A clean and simple, easy to install luminaire
    • Good light output
    • Good colour rendering (CRI over 92)
    • Suitable for indoor and outdoor use (IP54)
    • A quality luminaire with a five-year guarantee from LedStore
    • Even light, not bright in the centre and dim at the edges
    • CE, RoHS and SELV certified
    • Led Plafondi 240 is a good alternative to spotlights
  • Further information
  • Reviews
  • FAQ
  • Mounting dimensions
  • CRI

Led Plafond 240

The dimmable and moisture-proof (IP54) UPPOAVA series led plafond 240 provides bright lighting and with its sleek appearance is suitable for general lighting throughout your home. The luminaire is damp-proof (IP54), so it can be used in damp areas and outdoors. A good alternative to spotlights.

Technology

The UPPOAVA PLAFONDI 240 17W luminaire is equivalent to two 18W fluorescent tubes, i.e. around 1200 lumens. The LED circuits are mounted directly on the body. This solution achieves maximum thermal conductivity and a safe operating temperature (below 50 degrees Celsius). The low operating temperature ensures a long lifetime of 50 000 hours.

Colour rendering index (CRI) is over 90 and thermal conductivity is excellent. High quality components ensure that the light colour does not fade.

The LED PLAFONDI 240 will not be affected by frost, rain or snowstorms if it is installed on the roof of a carport or terrace. The PLAFONDI 240 LED luminaire is widely used as a replacement for spotlights in general lighting both outdoors and indoors. The light provided by the luminaire is more uniform than a spotlight and is ideal for general lighting. In addition, the matt surface completely hides the LED circuits from view.

The light colour can be selected from either 3000K (warm white) or 4000K (neutral white).

<img src="{{media url="wysiwyg/Py_re_t_Panels.png"}}" alt="Round Led Panels" width="248" height="247" />

See here for installation examples and ideas

Installation

The luminaire is recessed and the mounting hole size is 225 mm. The luminaire body is aluminium and powder coated matt white with a matt acrylic diffuser.

Each luminaire is supplied with its own power supply. The power supply has a quick connector for easy installation and is chainable. The power supply fits through a mounting hole in the false ceiling.

The low operating temperature allows the luminaire to be installed against wood or plaster. The Led PLAFONDI 240 fits into a typical roof structure with only 48x48mm of reinforcement and 13mm plasterboard under the vapour barrier. We recommend installing a piece of board or plasterboard above the luminaire to prevent the insulation from sagging.

The luminaire can also be surface mounted by ordering a surface mounting frame.

Dimming

Dimming is possible with TRIAC dimmers from the ENSIO side. Suitable dimmers include the Schneider EXXACT and ABB Jussi series dimmers that we sell. The floating plafond 240 18W luminaires can be connected to the same dimmer in the ABB Jussi series (70W) in 3 pieces and to the Schneider (300W) dimmers in 16 pieces.

Each luminaire is supplied with its own dimmable power supply. A single power supply for one luminaire solves a problem specific to halogen luminaires: a single power supply is subject to heavy load, gets hot and breaks down the luminaires. We have moved the power supply in the UPPOAVA range of luminaires separately from the luminaire. This solution ensures a shallow installation depth and prevents the power supply from heating up the luminaire. The separate power supply can be placed within 5 metres of the luminaire. The power supply is splash-proof IP44 and has 230V in and 700mA out (for the luminaire).

The LED luminaires are compatible with home automation (e.g. KNX and Talomatti) and work seamlessly as part of a smart home.

Why choose PLAFONDI 240?

  • A clean and simple, easy to install luminaire
  • Good light output
  • Good colour rendering (CRI over 92)
  • Suitable for indoor and outdoor use (IP54)
  • A quality luminaire with a five-year guarantee from LedStore
  • Even light, not bright in the centre and dim at the edges
  • CE, RoHS and SELV certified
  • Led Plafondi 240 is a good alternative to spotlights
  • Delivery status In stock at
  • Brand Ledstore
  • Breadcrumbs Home By featuresLED lights recessed Recessed LED PLAFOND 240 — UPPOAVA, dimmable, 17W, high CRI90
  • Category LED lights recessed
  • SKU Plafond240
  • Wattage 18
  • Mounting hole 225
  • Lumen 1200
  • Designed in Finland Yes
  • Installation

    Led PLAFOND 240 is reCEssed light and need a 225mm installation hole. Driver fits in from the hole. Driver has a quick connector between the lamp and the driver as well as quick connectors to mains. The driver is chainable. This guarantees easy installation. Driver can be installed maximum of 5m from the light (wires are not his long, but can be extended to max. this size).

    The light stays cool, so it can be installed on wood or plaster. Fits to most ceiling structures where there is 48x48mm frame and 13mm plasterboard. We recommend you to install a piece of plaster board on to to stop the insulation from pressing on the light.

    You can order a surface mounting frame to install this light on the surfaCE instead of reCEssed installation. Driver fits inside the frame.

  • Life span 50000
  • Model LedPlafond240
  • Size Installation 220mm, Lamp 240mm, lenght 18mm
  • Length of the package 27.5
  • Height of the package 4.5
  • Width of the package 32
  • Diameter of the product 24
  • Change Dimmable, driver included, chainable
  • Approval CE, RoHS, IP54
New product review

Be the first to write a review!

By rating you will be entered into a prize draw for a €50 gift voucher.

Customer questions
  • Are LED ceilings and LED panels adjustable/dimmable?
  • Does the dimmer come with the luminaire?
  • Are the bulbs in LED ceilings and LED panels replaceable?
  • What if I buy a led plafond or led panel now and it breaks in 8 years, what will replace it?
  • Does the luminaire come with a power supply/ ballast/ transformer?
  • Does a led plafond or led panel require a service hatch?
  • How much depth do led ceilings and led panels require?
  • Are the products fire-safe, i.e. do they require fire protection?
  • Are LED ceilings and LED panels chainable?
  • Can led ceilings and led panels also be installed in the yard, e.g. in a carport?
  • What is the lifetime of LED ceilings and LED panels?
  • I would like to know Led plafond 120 opening angle.

WHAT IS CRI, THE COLOUR RENDERING INDEX

High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.

CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.

Mikä on CRI, eli Värintoisto indeksi

Colour rendering index

The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.

RA value

The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.



The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.

Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.

Tämä mittaustulos on 9W CCT Led spotista

This measurement is from a 9W CCT Led spot
