Recessed LED PANEL ROUND ø200 - UPPOAVA, 15W, colour changeable (CCT), CRI98
LED PANEL PURPLE ø200 TUNNELMA, 15 W is a colour temperature adjustable, dimmable and moisture-proof luminaire with the latest LED technology. The colour temperature of the light (K) can be adjusted from warm-neutral-cold by means of a switch connected to the TRIAC transformer. You can also choose a transformer and regulator to suit other control systems. This way you can also get the colour temperature control to work smoothly with the controller. The luminaire comes with a 5-year warranty.
- 1450 lumens
- CCT 2900K-5500K Zigbee / DALI2 / RF
- Excellent colour rendering CRI 98
- Flush-mounted
- Matte white
- Delivery status In stock at
- Brand Ledstore
- Breadcrumbs Home Led LightsLED panelsRound led panels Recessed LED PANEL ROUND ø200 - UPPOAVA, 15W, colour changeable (CCT), CRI98
- Category Round led panels
- SKU plafond200-CCT-set
- Lumen 1450
- Efficiency (lumen/W) 94
- Lux at 1m 456
- R9 (RED) value 91-100
- Change The power supply is included in the product. The control unit is ordered separately. Standard springs for embedding.

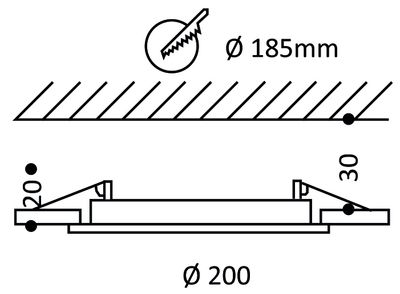

- Mounting hole (mm) 185
- Installation depth (mm) 30
- Wattage 15
- Colour temperature (K) CCT Adjustable, 2900, 4000, 5500
- Light control 176
- Colour rendering (CRI ±3) 98
- IP class IP54
- Colour Matte white
- Angle of light opening 125
- Immennys Dimmable, Wireless VaLO dimming, Wireless Zigbee dimming, 220
- Adjustability Not adjustable
- Material Aluminium
- Led module change Fixed module
- Led Votlage (V) 24
- Voltage to driver (V) 208
- Chainable Yes
- Guarantee (year) 5 years
- Life span 50000
- Installation method Recessed
- Format Round
- Installation level Roof
- Region Interior, Bathroom, Covered terrace
- Designed in Finland Yes
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
Zigbee CCT led drivers
Zigbee CCT Products that you can use when you want stepless CCT control. Compatible wiht Philips HUE!
The light is ordered without its own driver and a group driver is selected for CCT spots or CCT panels, as well as for CCT led strip lighting.
The transformer size for spots and panels is calculated by adding up the Watts + 25%.
For the CCT led strip, a 15% margin is sufficient.
e.g. 4x 9W CCT spot = 45W, so the closest is 50W
Some of our Zigbee led drivers
RF CCT LED drivers
RF CCT Products that you can use when you want stepless CCT control. Led light is ordered without its own led driver. Then a group led driver (one to control all) is selected for CCT spotlights or CCT panels, as well as for CCT led strip lighting.
The transformer/led driver size for spots and panels is calculated by adding up the Watts + 25%.
For the CCT led strip, a 15% margin is sufficient.
Some of our RF Led drivers
DALI2 (DT8) CCT Led drivers
DALI2 CCT Products you can use when you want stepless CCT control.
The luminaire is ordered without its own transformer and a group transformer is selected for CCT spots or CCT panels, as well as for CCT led strip lighting.
The transformer size for spots and panels is calculated by adding up the Watts + 25%.
For the CCT led strip, a 15% margin is sufficient.
e.g. 4x 9W CCT spot = 45W, so the closest is 50W
Some of our DALI2 (DT8) LED drivers
CCT wire harnesses
With our wiring harnesses you can quickly and reliably install CCT spots and CCT panels directly on one transformer. All luminaires are installed in parallel on the same transformer.
The spots come standard with a 15cm connecting cable with a connector, so you can easily create your own set with these wires.
with 3m spacer cables you can put even 2 in a row. All connection points have IP54 tight draught proofing.
In the distribution boxes (3 and 6) it is not mandatory to install a lamp on each connector.
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
Read more on this topic:
Colour rendering of LEDs - What is the difference between CRI and Ra-value?
