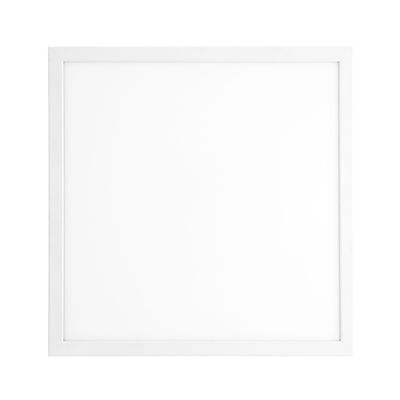

Recessed LED PANEL 600x600 - TUNNELMA, colour changeable (CCT) 40W, high CRI95
In stock at 3 pcs
SKU#: panel600-40W
4.5 / 5 (2)
LED panel 600 HUNNELMA colour temperature adjustable, 40W is a dimmable and moisture-proof luminaire with the latest LED technology. The colour temperature of the light can be adjusted from warm-neutral-cold via a switch connected to the transformer of the luminaire. The colour rendering index (CRI) is a staggering minimum of 95 in every shade! If you omit the transformer, you can also choose a transformer and controller suitable for other control systems, either for a single luminaire or for a group of several luminaires. This way you can also get the colour temperature control to work with a floating controller.
Read more
€ 209.00
VAT 0% | 24%
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
- Product description
Led panel 600 HUNNELMA, colour temperature adjustable CCT, 40W is a multifunctional luminaire for indoor and outdoor use in the home. It is suitable as general lighting for bathrooms, carports, offices and kitchens. The panel blends perfectly into the ceiling and creates the effect of a skylight in room lighting. The luminaire is moisture-proof (waterproof IP54), dimmable, the light colour temperature is adjustable from warm to cool white and the luminaire comes with a 5-year guarantee.
Led technology - attention to colour rendering
It doesn't matter what kind of light a luminaire produces. For the home, it is recommended to choose a light with a colour rendering index (CRI) of at least 90 or more, so that the lighting looks natural to the eye. LedStore's TUNNELMA -led panels have a CRI above 95 at all colour temperatures. The colour temperature of light (Kelvin), in turn, indicates the shade of white light. Our panels have a standard three-step adjustment of the hue, adjustable from the transformer connection. The adjustment is made at the installation stage, and in use the light is simply dimmed. The VaLO series RF transformer and push-button, among others. The colour of the light can be adjusted between about 3 000K (warm white) and 5 000K (cold white), also in a sliding way.
the 4 000 K white light is pure and natural in colour, making it ideal for use as a light window or skylight. the higher Kelvins of 4 000 K are similar to daylight, while the lower Kelvins are softer and warmer. With smart control, the luminaire can be automatically set to follow the desired daylight rhythm.
Structurally, the UPPOAVA -led panel uses an edge diffuser to give a soft light with no speckle, while the matte acrylic diffuses the light evenly to create a pleasantly even glow. UPPOAVA panel 600, 40W led is equivalent in luminous intensity to 300W halogen, which is equivalent to 3,600 lumens. The luminaire has a uniform and glare-free / low glare light distribution.
The frame is smooth, powder coated white, aluminium material, and the springs (4 pcs) are pre-attached for installation.
![Neliöt Led Paneelit]({{media url="wysiwyg/Neli_t_Paneelit_1.png"}})
See here for installation examples and photos of ideas. We are at your service for all your lighting needs and will be happy to work with you to design the lighting that suits your needs!
Installation
The luminaire is recessed in the ceiling or surface-mounted. The flush-mounted installation opening should be 580x580mm. The luminaire itself is 595x595x22mm, with a separate power supply that can be adjusted to any of three colour temperatures, warm-neutral-cold white. The power supply is dimmed by wired led dimmers such as Schneider EXXACT, ABB Jussi and Impressivo, Elko, Ensto Jung, as well as our range of Led triac dimmer and VaLO Zigbee receiver dimmer. For more information on dimming, visit our About Dimming page, including all the luminaires and dimmers we have tested.
The springs are on the two sides of the panel and are pre-mounted on the panel. If you also buy a surface-mount frame, the transformer with its temperature controls will fit inside the surface-mount frame. The power supply wiring can be extended, with a three-pole cable, or, when connecting multiple panels, use CCT wires and splitters.
The luminaire will fit into a typical ceiling structure with only 48x48 mm reinforcement and 13 mm plasterboard under the vapour barrier. If the vapour barrier is installed loosely, we recommend installing a board or plasterboard above the luminaire to prevent the insulation from sagging. The LED will not reach high temperatures, so no fire protection is required. However, it is not recommended to mount the LED luminaire on any material and an air space of e.g. 1-2 cm can be left.
The luminaire is available with a white surface mounting frame 50 mm high. The transformer fits inside the frame.
NOTE! Requires a separate CCT colour temperature control receiver and a light controller to allow a smooth change of the colour temperature of the white light.
We will assist you personally with product selection. We also offer an installation service for the products you buy.
Dimming and colour temperature control
If a sliding colour temperature control is desired, then "no transformer" is selected from the product selection. Instead of this luminaire-specific transformer, a transformer with the desired control system is purchased, which also has a colour temperature control feature. The systems we offer include RF wireless control transformers, Zigbee smart control transformers and DALI transformers with controls.
Why choose LedStore's TUNNELMA -led panel?
- Excellent colour rendering performance (CRI 95)
- Adjustable light colour temperature
- Moisture-proof (IP54)
- Dimmable
- Good light output
- Superior 5 year warranty for LED luminaire
- Luminaire lifetime approx. 50 000
- You save energy and therefore money
- You can use the same model both indoors and outdoors
- Finished, timeless design
- Led panel 600 is easy to install
- Further information
- Reviews
- FAQ
- Mounting dimensions
- Zigbee CCT
- RF CCT
- DALI2 CCT
- CCT Cables
- CRI
- ADesignAward
Led panel 600 HUNNELMA, colour temperature adjustable CCT, 40W is a multifunctional luminaire for indoor and outdoor use in the home. It is suitable as general lighting for bathrooms, carports, offices and kitchens. The panel blends perfectly into the ceiling and creates the effect of a skylight in room lighting. The luminaire is moisture-proof (waterproof IP54), dimmable, the light colour temperature is adjustable from warm to cool white and the luminaire comes with a 5-year guarantee.
Led technology - attention to colour rendering
It doesn't matter what kind of light a luminaire produces. For the home, it is recommended to choose a light with a colour rendering index (CRI) of at least 90 or more, so that the lighting looks natural to the eye. LedStore's TUNNELMA -led panels have a CRI above 95 at all colour temperatures. The colour temperature of light (Kelvin), in turn, indicates the shade of white light. Our panels have a standard three-step adjustment of the hue, adjustable from the transformer connection. The adjustment is made at the installation stage, and in use the light is simply dimmed. The VaLO series RF transformer and push-button, among others. The colour of the light can be adjusted between about 3 000K (warm white) and 5 000K (cold white), also in a sliding way.
the 4 000 K white light is pure and natural in colour, making it ideal for use as a light window or skylight. the higher Kelvins of 4 000 K are similar to daylight, while the lower Kelvins are softer and warmer. With smart control, the luminaire can be automatically set to follow the desired daylight rhythm.
Structurally, the UPPOAVA -led panel uses an edge diffuser to give a soft light with no speckle, while the matte acrylic diffuses the light evenly to create a pleasantly even glow. UPPOAVA panel 600, 40W led is equivalent in luminous intensity to 300W halogen, which is equivalent to 3,600 lumens. The luminaire has a uniform and glare-free / low glare light distribution.
The frame is smooth, powder coated white, aluminium material, and the springs (4 pcs) are pre-attached for installation.
See here for installation examples and photos of ideas. We are at your service for all your lighting needs and will be happy to work with you to design the lighting that suits your needs!
Installation
The luminaire is recessed in the ceiling or surface-mounted. The flush-mounted installation opening should be 580x580mm. The luminaire itself is 595x595x22mm, with a separate power supply that can be adjusted to any of three colour temperatures, warm-neutral-cold white. The power supply is dimmed by wired led dimmers such as Schneider EXXACT, ABB Jussi and Impressivo, Elko, Ensto Jung, as well as our range of Led triac dimmer and VaLO Zigbee receiver dimmer. For more information on dimming, visit our About Dimming page, including all the luminaires and dimmers we have tested.
The springs are on the two sides of the panel and are pre-mounted on the panel. If you also buy a surface-mount frame, the transformer with its temperature controls will fit inside the surface-mount frame. The power supply wiring can be extended, with a three-pole cable, or, when connecting multiple panels, use CCT wires and splitters.
The luminaire will fit into a typical ceiling structure with only 48x48 mm reinforcement and 13 mm plasterboard under the vapour barrier. If the vapour barrier is installed loosely, we recommend installing a board or plasterboard above the luminaire to prevent the insulation from sagging. The LED will not reach high temperatures, so no fire protection is required. However, it is not recommended to mount the LED luminaire on any material and an air space of e.g. 1-2 cm can be left.
The luminaire is available with a white surface mounting frame 50 mm high. The transformer fits inside the frame.
NOTE! Requires a separate CCT colour temperature control receiver and a light controller to allow a smooth change of the colour temperature of the white light.
We will assist you personally with product selection. We also offer an installation service for the products you buy.
Dimming and colour temperature control
If a sliding colour temperature control is desired, then "no transformer" is selected from the product selection. Instead of this luminaire-specific transformer, a transformer with the desired control system is purchased, which also has a colour temperature control feature. The systems we offer include RF wireless control transformers, Zigbee smart control transformers and DALI transformers with controls.
Why choose LedStore's TUNNELMA -led panel?
- Excellent colour rendering performance (CRI 95)
- Adjustable light colour temperature
- Moisture-proof (IP54)
- Dimmable
- Good light output
- Superior 5 year warranty for LED luminaire
- Luminaire lifetime approx. 50 000
- You save energy and therefore money
- You can use the same model both indoors and outdoors
- Finished, timeless design
- Led panel 600 is easy to install
- Delivery status In Stock
- Brand Ledstore
- Breadcrumbs Home By featuresLED lights recessed Recessed LED PANEL 600x600 - TUNNELMA, colour changeable (CCT) 40W, high CRI95
- Category LED lights recessed
- SKU panel600-40W
- Wattage 40
- Mounting hole 583
- Lumen 3600
- Designed in Finland Yes
- Region Interior, Exterior
- Colour White
- Installation
TUNNELMA LED PANEL 600 is a recessed light. Installation hole should be 583x583mm. Driver size is 195x45x33mm. The driver comes with every PANEL 600 light but you need a receiver and a control device to change the colour temperature and to dim the fixture. LED PANEL is 11 mm thick, so it fits to most of the ceiling structures (basic plaster board is similar in thickness). We recommend that you install a plaster board on top of the PANEL if the steam lock has been installed loosely. The LED PANEL needs 10-20mm air space on top of the light.You don't need any protection cups etc. when using led lights as the temperature of the light never exeeds 80 celsius.
If you need surface mounted light, you just order a frame with this light. The driver fits inside the frame. It's also possible to order the light as a suspended model with cable length of approx. 1,5m.
The reason we have desided to have the driver separatre from the body is that this way the driver does not add up to the lights heath load and this makes the light last longer.
Surface mounting frame is available for this product. Frame is 50mm in height and fits the driver inside.
- Voltage (V) 24
- Immennys 24V, Dimmable, Wireless VaLO dimming, Wireless Zigbee dimming, Wireless dimming, Wired, DALI, PUSH-DIM
- Colour temperature (K) Adjustable CCT
- Light control 176
- Life span 50000
- Model LedPanel 600 TUNNELMA
- Size 595x595mm, Installation cut out 580x580mm, lenght 22mm
- Length of the package 5
- Height of the package 67
- Width of the package 67
- Change Dimmable power supply is included. The package includes springs. A surface mounting frame available.
- Approval CE, RoHS, IP54
- PDF ledstorenpaneelikehyksenkasaus-jaasennusohje.pdf
- PDF ledstorenpaneelikehyksenkasaus-jaasennusohje.pdf
New product review
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
Customer questions
- What is CCT?
- What is the difference between stepwise or freely adjustable CCT lighting?
- How do CCT adjustable luminaires work?
- How to connect continuously variable CCT lighting?
- Can I use the VaLO-INWALL-CCT-400W hardwired controller at the same time as an RF wireless controller?
- Can I control CCT lights from multiple locations?
- I want to time the startup for bright daylight in the morning and warm and slightly dimmed light in the evening. Is it possible to control the light according to the season or time of day?
- What are the brands of CCT LED lamps sold on LedStore?
- Are LED ceilings and LED panels adjustable/dimmable?
- Does the dimmer come with the luminaire?
- Are the bulbs in LED ceilings and LED panels replaceable?
- What are the brands of led plafonds and led panels sold at LedStore?
- What if I buy a led plafond or led panel now and it breaks in 8 years, what will replace it?
- Does the luminaire come with a power supply/ ballast/ transformer?
- Does a led plafond or led panel require a service hatch?
- How much depth do led ceilings and led panels require?
- Are the products fire-safe, i.e. do they require fire protection?
- Are LED ceilings and LED panels chainable?
- Can a 300x300 or 600x600 panel be used as a service hatch?
- Can led ceilings and led panels also be installed in the yard, e.g. in a carport?
- What is the lifetime of LED ceilings and LED panels?
- Hi how/where can i select the mounting frame for the uppoava 300x1200 led panel 3000-4000-6000k?
- I would like to know Led plafond 120 opening angle.
Zigbee CCT transformers
Zigbee CCT Products that you can use when you want stepless CCT control.
The luminaire is ordered without its own transformer and a group transformer is selected for CCT spots or CCT panels, as well as for CCT led strip lighting.
The transformer size for spots and panels is calculated by adding up the Watts + 25%.
For the CCT led strip, a 15% margin is sufficient.
e.g. 4x 9W CCT spot = 45W, so the closest is 50W
RF CCT transformers
RF CCT Products that you can use when you want stepless CCT control. The luminaire is ordered without its own transformer and a group transformer is selected for CCT spotlights or CCT panels, as well as for CCT led strip lighting.
The transformer size for spots and panels is calculated by adding up the Watts + 25%.
For the CCT led strip, a 15% margin is sufficient.
DALI2 (DT8) CCT transformers
DALI2 CCT Products you can use when you want stepless CCT control.
The luminaire is ordered without its own transformer and a group transformer is selected for CCT spots or CCT panels, as well as for CCT led strip lighting.
The transformer size for spots and panels is calculated by adding up the Watts + 25%.
For the CCT led strip, a 15% margin is sufficient.
e.g. 4x 9W CCT spot = 45W, so the closest is 50W
CCT wire harnesses
With our wiring harnesses you can quickly and reliably install CCT spots and CCT panels directly on one transformer. All luminaires are installed in parallel on the same transformer.
The spots come standard with a 15cm connecting cable with a connector, so you can easily create your own set with these wires.
with 3m spacer cables you can put even 2 in a row. All connection points have IP54 tight draught proofing.
In the distribution boxes (3 and 6) it is not mandatory to install a lamp on each connector.
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
Read more on this topic:
Colour rendering of LEDs - What is the difference between CRI and Ra-value?
CCT CONTROLLABLE PRODUCT has won gold and bronze medals in two international design competitions in 2023!
Janne Halttu has been developing his own product family since the beginning of the company. Throughout the product development process, his own experience in building houses and installing lighting has been at the top of the list of requirements. The requirement list for CCT spotlights with colour temperature control included the following features:
- High quality - All parts of the luminaire are finished down to the connectors.
- High light quality - The LED circuitry of the luminaires has a very high colour rendering, CRI98!
- Smart home capability - Connectable to smart lighting management systems such as Zigbee, DALI2 without the need for a dedicated base transformer
- Quick to install - The luminaire has a quick connector for a Basic transformer, a pre-terminated connecting cable or a harness
- Minimum 600 Lumens - The luminaire has a removable opal which has the function of reducing the glare of the luminaire. By removing the lens, the light output can be increased by 10-15%
- Up to 55 mm high luminaire - The luminaire must fit into a standard Finnish ceiling structure consisting of 49x49 mm batten + 13 mm plasterboard.
- Small size transformer - The standard transformer of the luminaire can fit through the mounting hole of the luminaire.
- TRIAC dimmable - The basic transformer of the luminaire is TRIAC dimmable.
- Chainable - The standard transformer of the luminaire is chainable
- Long life - The luminaire has a burn time of +50,000 hours and a 7 year warranty
- Modular body - The luminaire's heat sink is a standard size spiral LED module which is interchangeable. We always use the same LED module in as many products as possible to make it environmentally friendly.
- Sustainability - The components of the luminaires must be able to be bought later.
LedStore's innovative CCT led family of luminaires has been entered in both the International Architecture & Design Awards 2023 and the A'Design Award 2023!
The results were gold and bronze in the lighting design category!
WINNING INNOVATION IN PARTS
All of the above are features of CCT spots. For example, we still have in stock LED circuits from products manufactured 10 years ago. This way, the customer is assured of a long availability of spare parts. The CCT led luminaire product family was initially launched with 10 luminaires, but since then the family has expanded and evolved. Today, the family consists of 55 products:
- 35 different CCT led spots, the development of which started in 2018 and the family has been launched in 2019
- 10 different CCT Led panels, development started in 2019 and the family has been launched in 2020
- 10 different CCT Led strip lights, which started development in 2019 and will be released in 2020
All-in-one system. Choose your CCT adjustable led luminaire of your choice. All products have high quality: colour rendering CRI 98 and a 5-7 year warranty.
WHAT IS THE REAL INNOVATION HERE?
There have been CCT lights on the market for a few years now, but all of them have used only pre-fixed switches, with a CRI of around 80. These products have also often been made of plastic, or thin sheet metal, with poor colour rendering. It's okay for customers to be free to choose the shade of light during installation, but why stop there?
"I wanted to make sure that when the interior changes, when new art is added to the wall or the carpet changes colour, the luminaires always bring out the best in the objects. So I designed a whole range of down lights that are beautiful, long-lasting, freely usable in any smart lighting system and with the highest possible lighting quality, CRI98. The luminaires are easy to install, and because they are low-voltage and have plug n play connectors, so no compromises!"
- Janne Halttu
TWO INSTALLATION METHODS
Basic:
Standard, where the luminaire comes with a transformer with a 3-position switch. The switch allows you to select a light temperature of 2900K/4000/5500K at the installation stage. The luminaire is TRIAC dimmable. The Led luminaires can be installed in chains.
Customizable:
Freely selectable from 2900-5500K. Selection is done by the desired lighting control system such as ZIgbee, DALI2, Z-Wave, etc. All lights are 24VDC parallel connected. Easy to add/remove Led lights. That is, the luminaire is purchased "Without its own transformer" and the luminaires are connected in parallel to one group transformer. This way all the luminaires behind the transformer are controlled by one single group and the CCT colour temperature of the luminaires can be freely adjusted and dimmed.
ACCESSORIES FOR THE PRODUCT FAMILY
The CCT product family also includes a complete IP54, pull-protected cabling kit with a 3 metre intermediate cable, and a choice of 3-piece or 6-piece splitter.
You can also use your own 3 pole cable for installation.
WHAT IS A COLOUR TEMPERATURE ADJUSTABLE LUMINAIRE?
A CCT-led light is a luminaire that allows you to change the colour temperature of white light. The range depends on the led luminaire, but can be as low as 2500K - 6500K.
The changes in colour temperature, which are clearly visible to the eye, range from yellowish light to bluish light. A temperature-controlled LED light changes the hue of the light so that the luminaire itself always has two LED circuits in parallel; cold and warm.
When the mixing ratio of the two is changed with a control, the colour temperature of the light changes. In addition to the possibility of changing the colour temperature of the light, the luminaires are dimmable.
Different materials and colours react differently to different light spectrums. It is very important to find the right colour temperature to suit your needs.
Read more on this topic:
Adjusting the colour temperature of spotlights, even according to the seasons
CCT adjustable led strip light
Janne Halttu
LedStore.fi entrepreneur who has built 4 detached houses for his family and renovated several properties. With 20 years of experience in construction, I have gained a lot of knowledge about structures and electrical work for several houses. I have been working with Led lighting for over 10 years. I am an expert in Led lighting, I write articles and I am a lighting designer. I often help clients with electrical and structural issues related to lighting and house construction.
