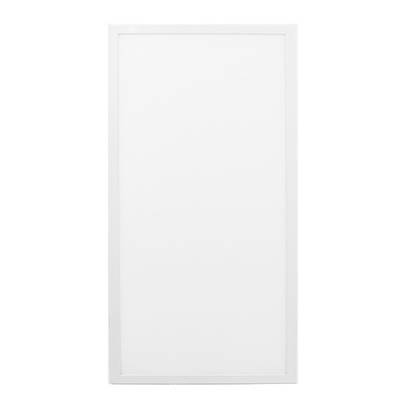

Recessed LED PANEL 600x1200 — UPPOAVA, 72W, dimmable, high CRI97, 4000K
Out of Stock
SKU#: panel600x1200-4000
0 / 5 (0)
UPPOAVA panel 600x1200 4000K, 72W led is a multifunctional luminaire for indoor and outdoor use in the home (IP44). Suitable for bathrooms, hobby rooms and kitchens. The panel blends perfectly into the ceiling and creates the effect of a skylight in the room lighting. The luminaire is dimmable and moisture-proof and comes with a 5-year warranty.
Read more
€ 379.00
VAT 0% | 24%
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
- Product description
UPPOAVA panel 600x1200 4000K, 72W led is a multifunctional luminaire for indoor and outdoor use in the home. Suitable for bathrooms, hobby rooms and kitchens. The panel blends perfectly into the ceiling and creates the effect of a skylight in the room lighting. The luminaire is dimmable and moisture-proof and comes with a 5-year warranty.
Led technology
It doesn't matter exactly what kind of light a luminaire produces. For the home, it is recommended to choose a light with a colour rendering index of at least over 90 CRI, so that the lighting looks natural to the eye. UPPOAVA -led panels always have a CRI above 95. The light colour can be selected from 3000K (warm white, made to order, delivery approx. 4 weeks) and 4000K (neutral white).
The UPPOAVA -led panel uses an edge diffuser to give a soft, non-pointy light and the matt acrylic diffuses the light evenly. UPPOAVA panel 600x1200, 72W led produces 6000 lumens.
![Neliöt Led Paneelit]({{media url="wysiwyg/Neli_t_Paneelit_1.png"}})

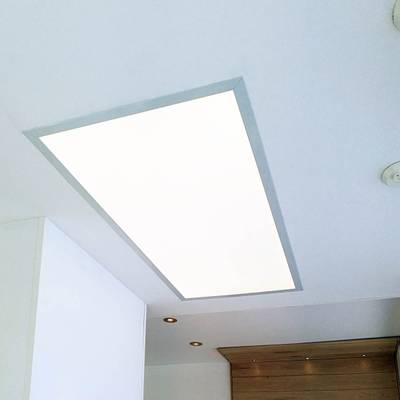

Click here for installation examples and photos of ideas
Installation
The luminaire is recessed in the ceiling or surface-mounted. When recessed, the mounting hole should be 583x1183mm. The luminaire itself is 595x1195x22mm and the two power supplies are 195x45x33mm. The power supplies fit inside the surface mount frame. The power supply wires can be extended up to a maximum of five meters.
The luminaire will fit into a typical ceiling structure with only 48x48mm reinforcement and 13mm plasterboard under the vapour barrier. If the vapour barrier is installed loosely, we recommend installing a board or plasterboard above the luminaire to prevent the insulation from sagging. The LED will not reach high temperatures, so no fire protection is required. However, it is not recommended to mount the Led luminaire on any material and an air space of e.g. 1-2 cm can be left.
The luminaire is available with an optional surface mounting frame with a height of 50mm.
Dimming
The UPPOAVA -led panel is supplied with a dimmable power supply (2 in this model) with a quick connector for easy installation of the luminaire and the power supply. UPPOAVA -led panels are dimmable with TRIAC dimmers on the ENSIO side. Suitable dimmers include Schneider's EXXCT and ABB's Jussi. More detailed information, such as maximum load, is given with the dimmers. The UPPOAVA -led panel is suitable for use with home automation systems such as KNX and Talomatti.
Why choose UPPOAVA -led panel?
- Dimmable
- Moisture-proof (IP54)
- Excellent colour rendering (CRI 95)
- Good light output
- Superior 5 year warranty for the led luminaire + 3 years for the power supply
- UPPOAVA luminaire lifetime up to 50000
- Saves energy and therefore money
- You can use the same luminaire both indoors and outdoors
- Finished, timeless design
- Easy to install
- Further information
- Reviews
- FAQ
- CRI
UPPOAVA panel 600x1200 4000K, 72W led is a multifunctional luminaire for indoor and outdoor use in the home. Suitable for bathrooms, hobby rooms and kitchens. The panel blends perfectly into the ceiling and creates the effect of a skylight in the room lighting. The luminaire is dimmable and moisture-proof and comes with a 5-year warranty.
Led technology
It doesn't matter exactly what kind of light a luminaire produces. For the home, it is recommended to choose a light with a colour rendering index of at least over 90 CRI, so that the lighting looks natural to the eye. UPPOAVA -led panels always have a CRI above 95. The light colour can be selected from 3000K (warm white, made to order, delivery approx. 4 weeks) and 4000K (neutral white).
The UPPOAVA -led panel uses an edge diffuser to give a soft, non-pointy light and the matt acrylic diffuses the light evenly. UPPOAVA panel 600x1200, 72W led produces 6000 lumens.
Click here for installation examples and photos of ideas
Installation
The luminaire is recessed in the ceiling or surface-mounted. When recessed, the mounting hole should be 583x1183mm. The luminaire itself is 595x1195x22mm and the two power supplies are 195x45x33mm. The power supplies fit inside the surface mount frame. The power supply wires can be extended up to a maximum of five meters.
The luminaire will fit into a typical ceiling structure with only 48x48mm reinforcement and 13mm plasterboard under the vapour barrier. If the vapour barrier is installed loosely, we recommend installing a board or plasterboard above the luminaire to prevent the insulation from sagging. The LED will not reach high temperatures, so no fire protection is required. However, it is not recommended to mount the Led luminaire on any material and an air space of e.g. 1-2 cm can be left.
The luminaire is available with an optional surface mounting frame with a height of 50mm.
Dimming
The UPPOAVA -led panel is supplied with a dimmable power supply (2 in this model) with a quick connector for easy installation of the luminaire and the power supply. UPPOAVA -led panels are dimmable with TRIAC dimmers on the ENSIO side. Suitable dimmers include Schneider's EXXCT and ABB's Jussi. More detailed information, such as maximum load, is given with the dimmers. The UPPOAVA -led panel is suitable for use with home automation systems such as KNX and Talomatti.
Why choose UPPOAVA -led panel?
- Dimmable
- Moisture-proof (IP54)
- Excellent colour rendering (CRI 95)
- Good light output
- Superior 5 year warranty for the led luminaire + 3 years for the power supply
- UPPOAVA luminaire lifetime up to 50000
- Saves energy and therefore money
- You can use the same luminaire both indoors and outdoors
- Finished, timeless design
- Easy to install
- Delivery status Out of Stock
- Brand Ledstore
- Breadcrumbs Home By featuresLED lights recessed Recessed LED PANEL 600x1200 — UPPOAVA, 72W, dimmable, high CRI97, 4000K
- Category LED lights recessed
- SKU panel600x1200-4000
- Wattage 72
- Mounting hole 1195
- Lumen 6000
- Designed in Finland Yes
- Installation
Valaisin upotetaan kattoon, asennetaan pinta-kehykseen tai ripustetaan vaijereilla. Upotettaessa sennusaukon tulee olla 280x1180mm. Itse valaisin on 295x1195x22mm ja lisäksi erillinen virtalähde on 195x45x33mm. Virtalähde mahtuu pinta-asennuskehykseen sisälle. Virtalähteen johtoja voidaan jatkaa maksimissaan viiteen metriin saakka.
Valaisin mahtuu tyypilliseen kattorakenteeseen, jossa höyrynsulun alla on vain 48x48mm koolaus ja 13mm kipsilevy. Mikäli höyrynsulku on asennettu löysälle, suosittelemme asentamaan valaisimen yläpuolelle laudan tai kipsilevyn estämään eristeen painumista. Ledin lämpötila ei nouse korkeaksi, joten palonsuojausta ei tarvita. Led valaisinta ei suositella kuitenkaan asennettavaksi kiinni mihinkään materiaaliin ja ilmatilaa voi jättää esim. 1-2 cm.
Valaisimeen on saatavana lisäosana pinta-asennuskehys, jonka korkeus on 50mm. Pinta-asennuskehykseen mahtuu sisälle valaisimen virtalähde.
- Immennys 24V, 230V, Dimmable, Wireless VaLO dimming, Wireless Zigbee dimming, Wireless dimming, Wired
- Colour temperature (K) 4000
- Life span 50000
- Model LedPanel 600x1200
- Size 595x1195mm, Installation cut out 583x1183mm, height 22mm
- Length of the package 5
- Height of the package 67.5
- Width of the package 126
- Change Driver Included, dimmable. Package includes spings, but surface mounting box and suspension wires can be ordered as well.
- Approval CE, RoHS, IP54
New product review
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
Customer questions
- Are LED ceilings and LED panels adjustable/dimmable?
- Does the dimmer come with the luminaire?
- Are the bulbs in LED ceilings and LED panels replaceable?
- What are the brands of led plafonds and led panels sold at LedStore?
- What if I buy a led plafond or led panel now and it breaks in 8 years, what will replace it?
- Does the luminaire come with a power supply/ ballast/ transformer?
- Does a led plafond or led panel require a service hatch?
- How much depth do led ceilings and led panels require?
- Are the products fire-safe, i.e. do they require fire protection?
- Are LED ceilings and LED panels chainable?
- Can led ceilings and led panels also be installed in the yard, e.g. in a carport?
- What is the lifetime of LED ceilings and LED panels?
- Hi how/where can i select the mounting frame for the uppoava 300x1200 led panel 3000-4000-6000k?
- I would like to know Led plafond 120 opening angle.
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
Read more on this topic:
Colour rendering of LEDs - What is the difference between CRI and Ra-value?
