Recessed LED PANEL 600x1200 — UPPOAVA, 72W, dimmable, color chageable, high CRI97
In stock at 7 pcs
SKU#: panel600x1200-CCT
4.7 / 5 (1)
UPPOAVA -PANELI 600x1200, 2700K-5300K is a dimmable, colour temperature adjustable (K), moisture resistant (IP54) LED luminaire for demanding tastes. The luminaire has a luminous intensity of approximately 500 W halogen. The panel blends perfectly into the ceiling and creates the effect of a skylight in the room lighting. A PLAYFUL PANEL WITHOUT CONVERTER, in this SET.
Read more
€ 299.00
VAT 0% | 24%
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
- Product description
UPPOAVA panel 600x1200, 72W, with variable light colour, is a multi-purpose luminaire for indoor and outdoor use. Suitable for the bathroom, study, kitchen, utility room, carport, etc. The panel blends perfectly into the ceiling and creates the effect of a skylight in the room lighting. The luminaire has a sliding colour temperature control (Kelvin) and is dimmable and moisture-proof. It also comes with a 5-year guarantee.
NOTE! This is only a panel WITHOUT CONVERTER! Full SETTI here
Led technology
It is not quite the same what kind of light a luminaire produces. For the home, it is recommended to choose a light with a colour rendering index (CRI) of at least 90 or more, so that the lighting looks natural to the eye. UPPOAVA -led panels have a CRI above 95 at all colour temperatures. The luminaire is dimmable and the colour tone can be continuously changed from morning and evening to daylight using CCT controls. The Panel 600x1200 luminaire is always installed with sliding colour temperature control, i.e. a transformer and controller for colour temperature control is required. Once the desired shade is found, the controller always remembers the last setting, so there is no need to reset the shade.
the 4 000K white light is pure and natural in colour, making it ideal for a light window or skylight. Higher Kelvins are reminiscent of daylight, while lower ones take you in a softer, warmer direction. With smart control, the luminaire can be automatically set to follow the desired daylight rhythm.
Structurally, the UPPOAVA -led panel uses an edge diffuser to give a soft light with no pinpointing, while the matte acrylic diffuses the light evenly to create a pleasantly even glow. The UPPOAVA 600x1200 panel is energy efficient; a 72 W LED panel is equivalent to 500 W halogen in luminous intensity, which means 6 000 lumens of light output. The luminaire has an even and glare-free / low glare light surface, as the light is evenly distributed over the luminous surface.
The frame is smooth, powder-coated white, made of aluminium, and the springs (6 pcs) are pre-attached for installation.
![Neliöt Led Paneelit]({{media url="wysiwyg/Neli_t_Paneelit_1.png"}})
Click here for installation examples and photos of ideas. We are at your service for all your lighting needs and will be happy to work with you to design the lighting that suits your needs!
Installation

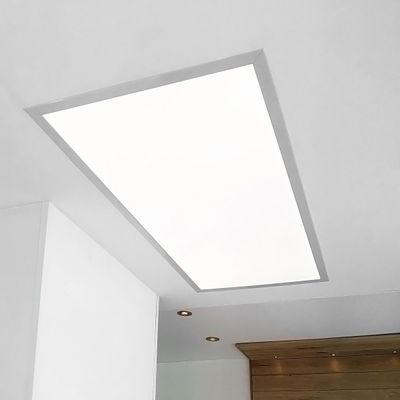

The luminaire is recessed in the ceiling or mounted on a surface-mounted frame that is screwed to the ceiling. For flush mounting, the installation opening must be 583x1183 mm. The luminaire itself is 595x1195x22 mm. The luminaire operates on 24 V and when installed on mains power, a power supply of at least 80 W is required, which must be purchased separately. All power supplies in our range fit inside a surface-mounted frame. The surface mounting frame is made of white painted aluminium and is 50 mm high.
The luminaire can be flush mounted in a typical ceiling structure (48x48mm) with only 48x48mm reinforcement and 13mm plasterboard under the vapour barrier. If the vapour barrier is installed loosely, we recommend installing a board or plasterboard above the luminaire to prevent the insulation from sagging. The LED will not reach high temperatures, so no fire protection is required. However, it is not recommended that the LED luminaire or power supply be mounted on any material. An air space of e.g. 1-2 cm can be left.
Switching options for dimming and colour temperature control:
- MeanWell 24VDC 90W transformer, size 145x60x30mm and Inwall CCT max. 400W. The regulator is mounted on the low current side, i.e. from the luminaire a three-wire cable allows colour temperature control, and from the regulator a 24V cable to the transformer, which is connected to the mains power supply, provides the regulator with power. If more than one panel is controlled by this controller, the transformer size is chosen according to the combined load.
- Wireless colour control (2700K-5300K) and dimming infinitely variable, transformer size 244x64x32mm. The transformer is Valo-Driver-RF-100W-24v. The transformer is connected to the selected pushbutton (ordered separately) with the options of wireless battery operated control button P1CCT, rotary wireless control button P1PRGB and remote control for controlling four CCT groups VaLO-R-CCT. If more than one panel is controlled by this controller, the transformer size is chosen according to the combined load.
- If desired, the lighting can be connected to the smart control by selecting a wireless Zigbee transformer. A 100 W 24 VDC transformer is selected for one panel (SKU: Light-Driver-ZG-100W-CCT-24v) A wireless pair can be created from a transformer and a pushbutton such as the P1CCT-ZG, or when connected to smart lighting, a connection is created to the bridge in use and, if desired, also to the wireless pushbutton. If more than one panel is controlled by this controller, the transformer size is chosen according to the combined load.
- Similarly, for DALI control, a DALI 100W (SKU: 24V-100W-DALI-CCT) transformer for CCT luminaires and a compatible push-button such as a DALI roll dimmer (SKU: DALI-rotary-P1PCCT) are selected. There are also other options for the appearance of the controller. If more than one panel is controlled by this controller, the transformer size is selected according to the combined load.
Why choose UPPOAVA -led panel?
- Dimmable
- Adjustable light colour from 2700K to 5300K
- Moisture-proof (IP54)
- Excellent colour rendering CRI +98
- Good light output
- Superior 5 year warranty for LED luminaire
- UPPOAVA luminaire lifetime up to 50.000h
- Saves energy and therefore money
- You can use the same luminaire both indoors and outdoors
- Finished, timeless design
- Easy to install
- MeanWell 24VDC 90W transformer, size 145x60x30mm and Inwall CCT max. 400W. The regulator is mounted on the low current side, i.e. from the luminaire a three-wire cable allows colour temperature control, and from the regulator a 24V cable to the transformer, which is connected to the mains power supply, provides the regulator with power. If more than one panel is controlled by this controller, the transformer size is chosen according to the combined load.
- Further information
- Reviews
- FAQ
- Mounting dimensions
- Zigbee CCT
- RF CCT
- DALI2 CCT
- CCT Cables
- CRI
- ADesignAward
UPPOAVA panel 600x1200, 72W, with variable light colour, is a multi-purpose luminaire for indoor and outdoor use. Suitable for the bathroom, study, kitchen, utility room, carport, etc. The panel blends perfectly into the ceiling and creates the effect of a skylight in the room lighting. The luminaire has a sliding colour temperature control (Kelvin) and is dimmable and moisture-proof. It also comes with a 5-year guarantee.
NOTE! This is only a panel WITHOUT CONVERTER! Full SETTI here
Led technology
It is not quite the same what kind of light a luminaire produces. For the home, it is recommended to choose a light with a colour rendering index (CRI) of at least 90 or more, so that the lighting looks natural to the eye. UPPOAVA -led panels have a CRI above 95 at all colour temperatures. The luminaire is dimmable and the colour tone can be continuously changed from morning and evening to daylight using CCT controls. The Panel 600x1200 luminaire is always installed with sliding colour temperature control, i.e. a transformer and controller for colour temperature control is required. Once the desired shade is found, the controller always remembers the last setting, so there is no need to reset the shade.
the 4 000K white light is pure and natural in colour, making it ideal for a light window or skylight. Higher Kelvins are reminiscent of daylight, while lower ones take you in a softer, warmer direction. With smart control, the luminaire can be automatically set to follow the desired daylight rhythm.
Structurally, the UPPOAVA -led panel uses an edge diffuser to give a soft light with no pinpointing, while the matte acrylic diffuses the light evenly to create a pleasantly even glow. The UPPOAVA 600x1200 panel is energy efficient; a 72 W LED panel is equivalent to 500 W halogen in luminous intensity, which means 6 000 lumens of light output. The luminaire has an even and glare-free / low glare light surface, as the light is evenly distributed over the luminous surface.
The frame is smooth, powder-coated white, made of aluminium, and the springs (6 pcs) are pre-attached for installation.
Click here for installation examples and photos of ideas. We are at your service for all your lighting needs and will be happy to work with you to design the lighting that suits your needs!
Installation
The luminaire is recessed in the ceiling or mounted on a surface-mounted frame that is screwed to the ceiling. For flush mounting, the installation opening must be 583x1183 mm. The luminaire itself is 595x1195x22 mm. The luminaire operates on 24 V and when installed on mains power, a power supply of at least 80 W is required, which must be purchased separately. All power supplies in our range fit inside a surface-mounted frame. The surface mounting frame is made of white painted aluminium and is 50 mm high.
The luminaire can be flush mounted in a typical ceiling structure (48x48mm) with only 48x48mm reinforcement and 13mm plasterboard under the vapour barrier. If the vapour barrier is installed loosely, we recommend installing a board or plasterboard above the luminaire to prevent the insulation from sagging. The LED will not reach high temperatures, so no fire protection is required. However, it is not recommended that the LED luminaire or power supply be mounted on any material. An air space of e.g. 1-2 cm can be left.
Switching options for dimming and colour temperature control:
- MeanWell 24VDC 90W transformer, size 145x60x30mm and Inwall CCT max. 400W. The regulator is mounted on the low current side, i.e. from the luminaire a three-wire cable allows colour temperature control, and from the regulator a 24V cable to the transformer, which is connected to the mains power supply, provides the regulator with power. If more than one panel is controlled by this controller, the transformer size is chosen according to the combined load.
- Wireless colour control (2700K-5300K) and dimming infinitely variable, transformer size 244x64x32mm. The transformer is Valo-Driver-RF-100W-24v. The transformer is connected to the selected pushbutton (ordered separately) with the options of wireless battery operated control button P1CCT, rotary wireless control button P1PRGB and remote control for controlling four CCT groups VaLO-R-CCT. If more than one panel is controlled by this controller, the transformer size is chosen according to the combined load.
- If desired, the lighting can be connected to the smart control by selecting a wireless Zigbee transformer. A 100 W 24 VDC transformer is selected for one panel (SKU: Light-Driver-ZG-100W-CCT-24v) A wireless pair can be created from a transformer and a pushbutton such as the P1CCT-ZG, or when connected to smart lighting, a connection is created to the bridge in use and, if desired, also to the wireless pushbutton. If more than one panel is controlled by this controller, the transformer size is chosen according to the combined load.
- Similarly, for DALI control, a DALI 100W (SKU: 24V-100W-DALI-CCT) transformer for CCT luminaires and a compatible push-button such as a DALI roll dimmer (SKU: DALI-rotary-P1PCCT) are selected. There are also other options for the appearance of the controller. If more than one panel is controlled by this controller, the transformer size is selected according to the combined load.
Why choose UPPOAVA -led panel?
- Dimmable
- Adjustable light colour from 2700K to 5300K
- Moisture-proof (IP54)
- Excellent colour rendering CRI +98
- Good light output
- Superior 5 year warranty for LED luminaire
- UPPOAVA luminaire lifetime up to 50.000h
- Saves energy and therefore money
- You can use the same luminaire both indoors and outdoors
- Finished, timeless design
- Easy to install
- Delivery status In Stock
- Brand Ledstore
- Breadcrumbs Home By featuresLED lights recessed Recessed LED PANEL 600x1200 — UPPOAVA, 72W, dimmable, color chageable, high CRI97
- Category LED lights recessed
- SKU panel600x1200-CCT
- Wattage 72
- Mounting hole 1195
- Lumen 6000
- Designed in Finland Yes
- Installation
UPPOAVA LED PANEL 600*1200 CCT 2500K-6500K, is a recessed light. Installation hole should be 583x1183mm. The light can be surface mounted with a surface mounting frame that is 5mm in height and matte white. Driver size is 145x60x35mm and it can be placed maximum of 5m from the light. The driver comes with every PANEL 600*1200 CCT light. The driver is not water resistant.
LED PANEL is 13mm thick, so it fits to most of the ceiling structures (48x48mm + basic plaster board is similar in thickness). We recommend that you install a plaster board on top of the PANEL if the steam lock has been installed loosely. The LED PANEL needs 10-20mm air space on top of the light. You don't need any protection cups etc. when using led lights as the temperature of the light never exceeds 80 celsius.
If you need surface mounted light, you can order a frame with this light. The frame is 50mm in height and matte white. The driver fits inside the frame.
The reason we have decided to have the driver separate from the body is that this way the driver does not add up to the lights heath load and this makes the light last longer. The appropriate driver is included depending on the desired dimming and colour changing method.
UPPOAVA LED PANEL 600*1200 CCT can be operated with ON/OFF swich, rotary dimmers, in-wall CCT control or with wireless CCT button, rotatable CCT button or CCT remote (for 41-4 groups).
- Immennys 24V, 230V, Dimmable, Wireless VaLO dimming, Wireless Zigbee dimming, Wireless dimming, Wired
- Life span 50000
- Model Led PANEL 600x1200, CCT
- Size 595x1195mm, installation cut out 583x1183mm, height 22mm
- Length of the package 126
- Height of the package 5
- Width of the package 67.5
- Change Driver Included, dimmable, changeable CCT.
- Approval CE, RoHS, IP54
- PDF ledstorenpaneelikehyksenkasaus-jaasennusohje.pdf
- PDF ledstorenpaneelikehyksenkasaus-jaasennusohje.pdf
New product review
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
Customer questions
- Are LED ceilings and LED panels adjustable/dimmable?
- Does the dimmer come with the luminaire?
- Are the bulbs in LED ceilings and LED panels replaceable?
- What are the brands of led plafonds and led panels sold at LedStore?
- What if I buy a led plafond or led panel now and it breaks in 8 years, what will replace it?
- Does the luminaire come with a power supply/ ballast/ transformer?
- Does a led plafond or led panel require a service hatch?
- How much depth do led ceilings and led panels require?
- Are the products fire-safe, i.e. do they require fire protection?
- Are LED ceilings and LED panels chainable?
- Can led ceilings and led panels also be installed in the yard, e.g. in a carport?
- What is the lifetime of LED ceilings and LED panels?
- Hi how/where can i select the mounting frame for the uppoava 300x1200 led panel 3000-4000-6000k?
- I would like to know Led plafond 120 opening angle.
Zigbee CCT transformers
Zigbee CCT Products that you can use when you want stepless CCT control.

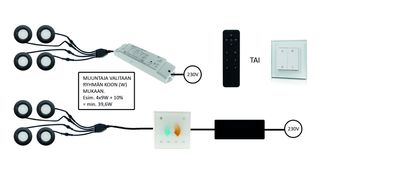

The luminaire is ordered without its own transformer and a group transformer is selected for CCT spots or CCT panels, as well as for CCT led strip lighting.
The transformer size for spots and panels is calculated by adding up the Watts + 25%.
For the CCT led strip, a 15% margin is sufficient.
e.g. 4x 9W CCT spot = 45W, so the closest is 50W
RF CCT transformers
RF CCT Products that you can use when you want stepless CCT control. The luminaire is ordered without its own transformer and a group transformer is selected for CCT spotlights or CCT panels, as well as for CCT led strip lighting.
The transformer size for spots and panels is calculated by adding up the Watts + 25%.
For the CCT led strip, a 15% margin is sufficient.
DALI2 (DT8) CCT transformers
DALI2 CCT Products you can use when you want stepless CCT control.
The luminaire is ordered without its own transformer and a group transformer is selected for CCT spots or CCT panels, as well as for CCT led strip lighting.
The transformer size for spots and panels is calculated by adding up the Watts + 25%.
For the CCT led strip, a 15% margin is sufficient.
e.g. 4x 9W CCT spot = 45W, so the closest is 50W
CCT wire harnesses
With our wiring harnesses you can quickly and reliably install CCT spots and CCT panels directly on one transformer. All luminaires are installed in parallel on the same transformer.
The spots come standard with a 15cm connecting cable with a connector, so you can easily create your own set with these wires.
with 3m spacer cables you can put even 2 in a row. All connection points have IP54 tight draught proofing.
In the distribution boxes (3 and 6) it is not mandatory to install a lamp on each connector.
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
Read more on this topic:
Colour rendering of LEDs - What is the difference between CRI and Ra-value?
CCT CONTROLLABLE PRODUCT has won gold and bronze medals in two international design competitions in 2023!
Janne Halttu has been developing his own product family since the beginning of the company. Throughout the product development process, his own experience in building houses and installing lighting has been at the top of the list of requirements. The requirement list for CCT spotlights with colour temperature control included the following features:
- High quality - All parts of the luminaire are finished down to the connectors.
- High light quality - The LED circuitry of the luminaires has a very high colour rendering, CRI98!
- Smart home capability - Connectable to smart lighting management systems such as Zigbee, DALI2 without the need for a dedicated base transformer
- Quick to install - The luminaire has a quick connector for a Basic transformer, a pre-terminated connecting cable or a harness
- Minimum 600 Lumens - The luminaire has a removable opal which has the function of reducing the glare of the luminaire. By removing the lens, the light output can be increased by 10-15%
- Up to 55 mm high luminaire - The luminaire must fit into a standard Finnish ceiling structure consisting of 49x49 mm batten + 13 mm plasterboard.
- Small size transformer - The standard transformer of the luminaire can fit through the mounting hole of the luminaire.
- TRIAC dimmable - The basic transformer of the luminaire is TRIAC dimmable.
- Chainable - The standard transformer of the luminaire is chainable
- Long life - The luminaire has a burn time of +50,000 hours and a 7 year warranty
- Modular body - The luminaire's heat sink is a standard size spiral LED module which is interchangeable. We always use the same LED module in as many products as possible to make it environmentally friendly.
- Sustainability - The components of the luminaires must be able to be bought later.
LedStore's innovative CCT led family of luminaires has been entered in both the International Architecture & Design Awards 2023 and the A'Design Award 2023!
The results were gold and bronze in the lighting design category!
WINNING INNOVATION IN PARTS
All of the above are features of CCT spots. For example, we still have in stock LED circuits from products manufactured 10 years ago. This way, the customer is assured of a long availability of spare parts. The CCT led luminaire product family was initially launched with 10 luminaires, but since then the family has expanded and evolved. Today, the family consists of 55 products:
- 35 different CCT led spots, the development of which started in 2018 and the family has been launched in 2019
- 10 different CCT Led panels, development started in 2019 and the family has been launched in 2020
- 10 different CCT Led strip lights, which started development in 2019 and will be released in 2020
All-in-one system. Choose your CCT adjustable led luminaire of your choice. All products have high quality: colour rendering CRI 98 and a 5-7 year warranty.
WHAT IS THE REAL INNOVATION HERE?
There have been CCT lights on the market for a few years now, but all of them have used only pre-fixed switches, with a CRI of around 80. These products have also often been made of plastic, or thin sheet metal, with poor colour rendering. It's okay for customers to be free to choose the shade of light during installation, but why stop there?
"I wanted to make sure that when the interior changes, when new art is added to the wall or the carpet changes colour, the luminaires always bring out the best in the objects. So I designed a whole range of down lights that are beautiful, long-lasting, freely usable in any smart lighting system and with the highest possible lighting quality, CRI98. The luminaires are easy to install, and because they are low-voltage and have plug n play connectors, so no compromises!"
- Janne Halttu
TWO INSTALLATION METHODS
Basic:
Standard, where the luminaire comes with a transformer with a 3-position switch. The switch allows you to select a light temperature of 2900K/4000/5500K at the installation stage. The luminaire is TRIAC dimmable. The Led luminaires can be installed in chains.
Customizable:
Freely selectable from 2900-5500K. Selection is done by the desired lighting control system such as ZIgbee, DALI2, Z-Wave, etc. All lights are 24VDC parallel connected. Easy to add/remove Led lights. That is, the luminaire is purchased "Without its own transformer" and the luminaires are connected in parallel to one group transformer. This way all the luminaires behind the transformer are controlled by one single group and the CCT colour temperature of the luminaires can be freely adjusted and dimmed.
ACCESSORIES FOR THE PRODUCT FAMILY
The CCT product family also includes a complete IP54, pull-protected cabling kit with a 3 metre intermediate cable, and a choice of 3-piece or 6-piece splitter.
You can also use your own 3 pole cable for installation.
WHAT IS A COLOUR TEMPERATURE ADJUSTABLE LUMINAIRE?
A CCT-led light is a luminaire that allows you to change the colour temperature of white light. The range depends on the led luminaire, but can be as low as 2500K - 6500K.
The changes in colour temperature, which are clearly visible to the eye, range from yellowish light to bluish light. A temperature-controlled LED light changes the hue of the light so that the luminaire itself always has two LED circuits in parallel; cold and warm.
When the mixing ratio of the two is changed with a control, the colour temperature of the light changes. In addition to the possibility of changing the colour temperature of the light, the luminaires are dimmable.
Different materials and colours react differently to different light spectrums. It is very important to find the right colour temperature to suit your needs.
Read more on this topic:
Adjusting the colour temperature of spotlights, even according to the seasons
CCT adjustable led strip light
Janne Halttu
LedStore.fi entrepreneur who has built 4 detached houses for his family and renovated several properties. With 20 years of experience in construction, I have gained a lot of knowledge about structures and electrical work for several houses. I have been working with Led lighting for over 10 years. I am an expert in Led lighting, I write articles and I am a lighting designer. I often help clients with electrical and structural issues related to lighting and house construction.
