Motion switch for stairs and hallways with motion lights

Sliding lighting, motion sensors for stairs or corridor

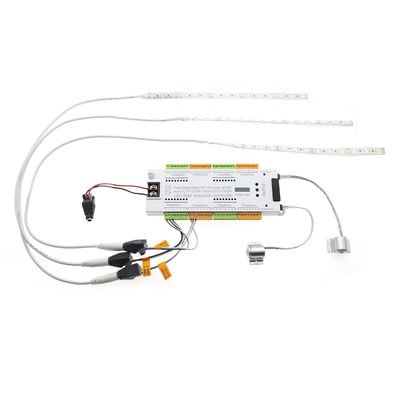

Create elegant step by step, step by step sliding lighting for your home! Can be used with any 12 or 24 V light source. Most commonly LED strip or step lights. Max 15W single/500W total. 1 or 2 sensors can be connected to the controller. The controller is connected to a 12 or 24V DC transformer.

Animate your stairs!

When the sensor detects motion, the sensor turns on the lights. The lights turn on one after the other. And after motion, they turn off in reverse order.

• You can adjust the number of lights (steps) from 1-32 lights.
• You can adjust the speed in 4 steps: 25%, 50%, 75% and 100%

How to install the stair lights?

First you need to know the number of steps and have 12 or 24V lights ready. Then follow these installation steps:

1. Install the LED strips or LED lights in place.
2. Pull the wires to the control unit
3. Connect the negative and positive wires starting from number 1 and upwards.
4. Install the motion sensors at the beginning and end of the stairs/passageway. The package contains 5 m wires for both sensors. You can cut and make the cable longer if necessary. Use the 3-pole cable for extension
5. The control unit has markings on the direction of the light. UP or DOWN depending on the position of the sensor in the controller. You can cross them out if necessary.
6. When all lights are connected to the controller, connect the led transformer 12V or 24V to the control unit.
7. Start programming by pressing and holding the programming key for 5 seconds.
8. If you have 16 steps, now press the programming key 16 times. You will see a blue light at each added step.
9. Press and hold the program key for 5 seconds to save the steps.
10. A short press on the programming key will adjust the speed, in 4 steps: 25%, 50%, 75% and 100%



Change as required

You will need LED strips or wall lights with the controller. Make sure they are both the same 12V or 24V. Then you will also need an led transformer that can handle the load installed.

We are also able to manufacture led strips to led profile dimensions.

Contact our support/sales team to implement a staircase lighting system that suits your needs!
