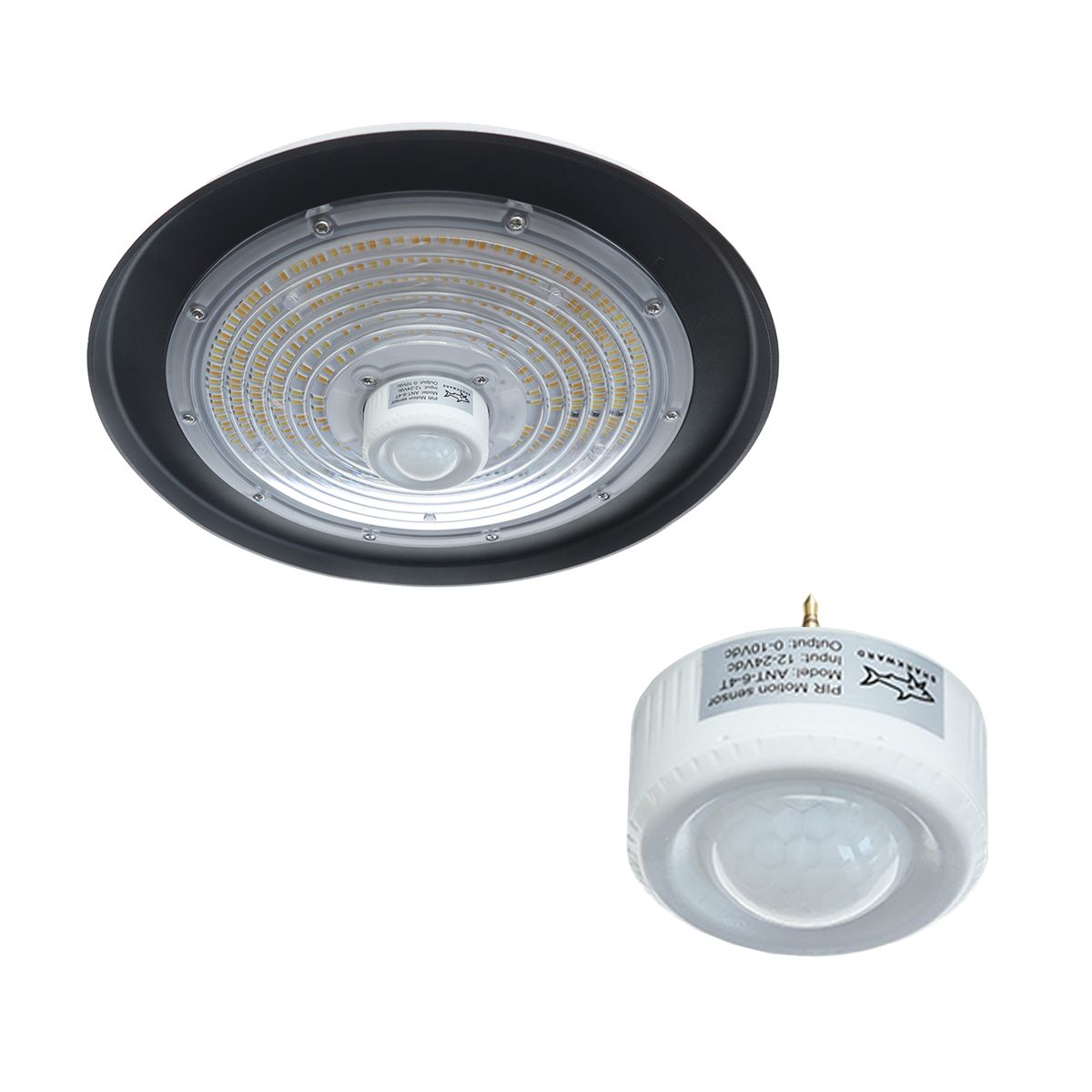

Motion PIR sensor for Led High Bay UFO -light, IP65

This motion sensor (PIR) can be used to automate LED High Bay Ufo lights. The PIR sensor switches the lights on when it detects movement in the beam area and switches the lights off after a certain time after the last detected movement. The on-time is adjustable between 10 seconds and 60 minutes.All control parameters are adjustable via a wireless remote capable of storing information.

Motion detection is done by infrared, which works by turning on the lights when the sensor detects a temperature (heat) in the beam area that is different from that of the wand. We do not recommend this to be near an air conditioner, air source heat pump or radiator, as heat variation against other background conditions will cause the lights to turn on.

The motion sensor also includes a twilight sensor, which makes this a good choice for pathway lights and night lighting, turning on the lights from motion only when the twilight level is at a certain level. So, for example, certain lights will come on when motion is detected, but only at dusk. The light level can be adjusted from a near-dark 3lx level to a full brightness of 2000lx.

• Power: Connected directly to LED High Bay UFO lights (12V-24V DC, >30mA
• Dim control output: 0-10V, max. 25mA sinking current
• Detection distance: 20% / 50% / 75% / 100% (1-8m)
• Installation height: Max 12m
• Operating temperature: -20°to +60°
• Time delay: 10s/1min/5min/10min/15min/20min/30min/60min
• Ambient light level: 24H/10LUX/30LUX/50LUX
• Protection class: IP65
