ModLed frame, directional, matt gold, IP21 + GU10 or MR16 socket without bulb
This is a complete set including a ModLed frame and your choice of GU10 or MR16 socket without bulb.
The frame is matt gold and IP21, has a 40 degree beam and is directional. The ModLed range is modular and in this set you can choose a GU10 or GU5.3 bulb holder to go with the frame. Bulbs must be purchased separately. Our range includes GU10 bulbs in 3000K and 4000K colour temperatures, as well as CCT 2700K-5800K. GU5.3 or MR16 bulbs are available in 3000K and 4000K colour temperatures.
Functional bulb frame
This gold-coloured bulb frame is designed so that its inner ring rotates, allowing the bulb to be oriented from 0 to 30 degrees. The mounting hole is 70 mm. The frame is held in place by two springs which are provided in the frame.
The outer diameter of the frame is 85 mm.
IP21 suitable for dry areas
This frame is IP21 only and does not protect the bulb from water.
Stock options

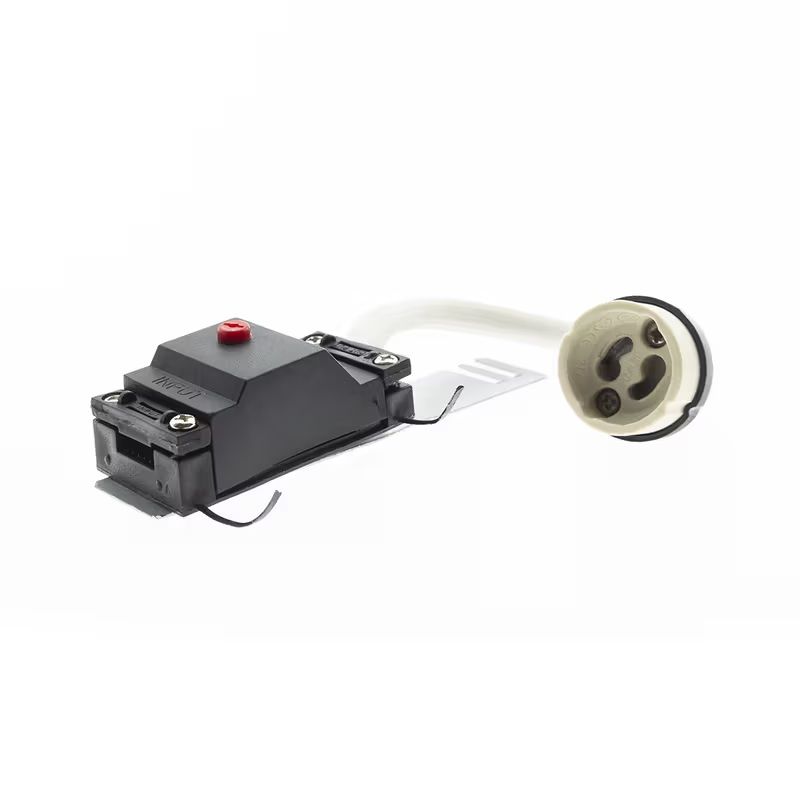

This holder is suitable for GU10 and MR16 (GU5.3) bulbs , as well as for ModLed bulbs, with which you do not need a separate holder.
Led bulb options
GU10 LED bulb
GU10 bulbs use direct mains power We have several GU10 models, including warm 3 000K and neutral 4 000K white, as well as a colour temperature adjustable Zigbee bulb.
The mounting space in the inner cover with GU10 should be at least 90 mm including the frame, GU10 bulb and the holder.
MR16/GU5.3 LED lamp
MR16 (GU5.3) bulbs use 12V DC voltage and therefore require a power supply. We have several MR16 models, including warm 3 000K and neutral 4 000K white. We also offer 12V power supplies for different sizes of luminaires.
The mounting space in the inner cover with MR16 should be at least 70 mm including the frame, the MR16 lamp and the lamp holder.
Safety note for installation
With this product you must take into account all fire regulations made for the installation of halogens, as it is possible at some point to accidentally insert a halogen lamp into this frame and stem. The halogen may reach temperatures in excess of 200 degrees Celsius.
Information from
LEDStore's KEHYS+KANTA package is intended for applications where a standard and interchangeable bulb is desired. We recommend using a high quality LedStore LED bulb in the frame, so that replacement is less frequent and the heat load generated by the light source is minimised.
When choosing a flush-mounted LED luminaire with replaceable bulb, it is important to consider that the luminaire must be surrounded by a fire protection system in the same way as halogen lamps. If no such protection is fitted, the cost should be taken into account when choosing the luminaire. The protection is required for fire safety reasons, as it is possible to inadvertently replace an LED bulb with a halogen bulb that can heat up to over 200 degrees Celsius. Such damage cannot occur with LED spots whose lampholder type/module is not identical to that of previous halogen lights.
ModLed is suitable for any
LedStore.fi did it again! Modular LED is here! The ModLed lamp has all the best features of a loose bulb and a fixed led luminaire. ModLed gives you a lot of choice, you can assemble your downlight in many different ways.
ModLed module
ModLed's proprietary module is available in either 3000K or 4000K white light with near perfect colour rendering, CRI97. The module is dimmable, chainable and has a light output of 8W producing 600 lumens. The module is also compatible with GU10 frames.
ModLed frames
The ModLed name is available in fixed matte black and matte white, and directional gold, matte black and matte white.
Other compatible frames
All GU10 and GU5.3/MR16 frames are compatible with the ModLed module, you can find them HERE.
ModLed frames are also mutually compatible with GU10 and GU5.3/MR16 sockets and bulbs.
