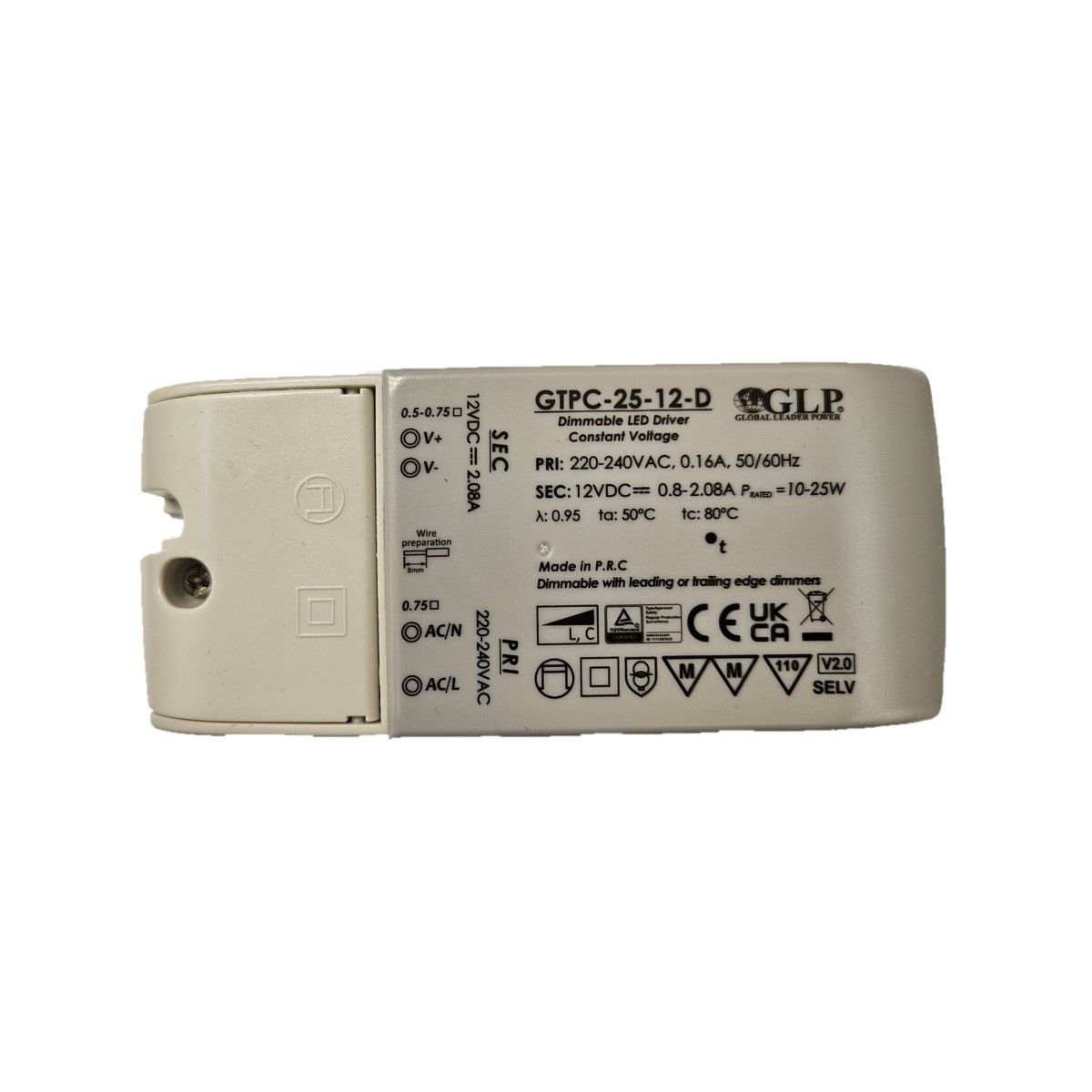

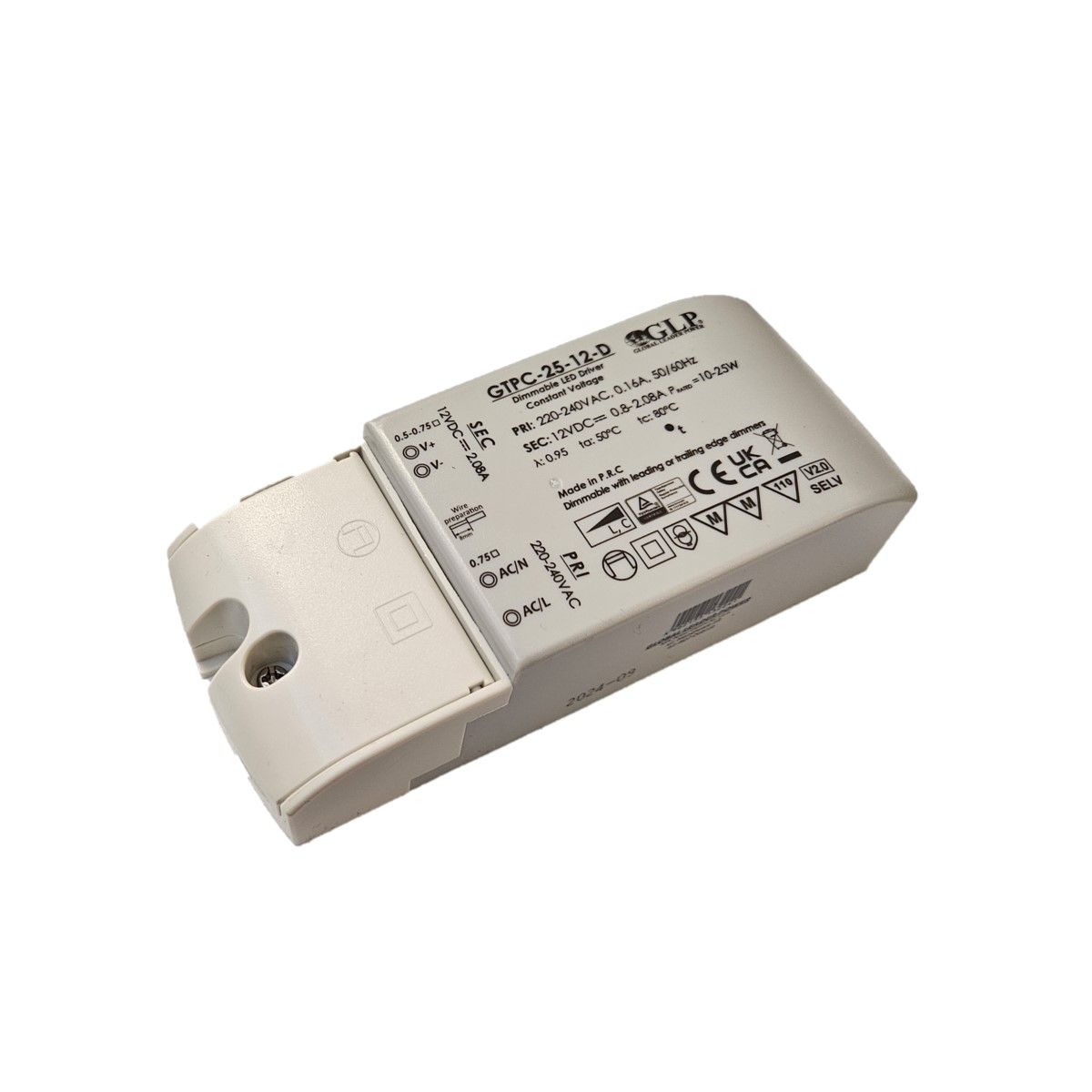

LED TRANSFORMER 12V, 25W, TRIAC DIMMABLE

Dimmable 25W TRIAC transformer 12V

Suitable for LED products such as ribbons or Halogen replacement bulbs (MR16 / GU5.3).

Dimmable transformer on the front side, suitable e.g. for rotary wall dimmers. Suitable for dry areas (IP20). The wires are connected to the transformer with screw connectors.

TRIAC dimming (both leading edge and trailing edge). Minimum load 10W

The transformer is mainly used with 12V led strips. Can be used for example.:

• max. 1,7m 12V 14,4W/m led strip
• 2-3pcs 6-7W MR16 Led bulbs

Output: 12V --- 2.08A 25W

Size:

Length 130 mm
Width 50 mm
Height 30 mm

CE, RoHS, SELV, IP20
