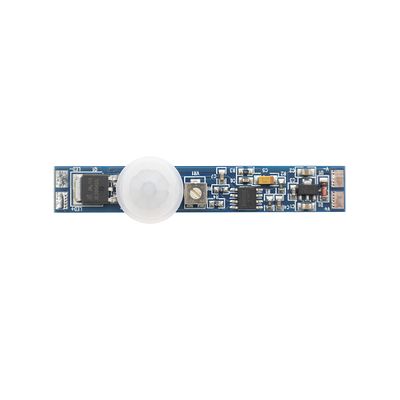

LED strip PIR switch 12-24V, max. 72W
In stock at 94 pcs
SKU#: solder-PIR
0 / 5 (0)
PIR switch for led strip. The perfect solution for lighting your hallway, corridor and wardrobe. The PIR sensor switches on the lights when it detects movement within 2m of the sensor. Delay adjustment from 6 to 70 seconds from last movement.
Read more
€ 25.00
VAT 0% | 24%
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
PIR switch for led strip. The perfect solution for lighting up hallways, corridors, wardrobes and other spaces where you need to be quick. The PIR sensor switches on the lights when it detects movement within a 2m radius of the sensor. The on-time of the lights can be adjusted between 6 and 70 seconds from the last movement.
Fits nicely into our low profile aluminium profiles. Can be used with both 12V and 24V ribbons. Maximum load with 12V strip 30W and with 24V strip 60W (2.5A).
Installation
Tin between the ribbon and the transformer (i.e. output 12-24V and input 12-24V).
- Make sure you use a DC transformer and not a DC transformer. When switching, the power should be off.
- Make sure the plus "+" and minus "-" are connected correctly to the transformer. The plus and minus must not be cross-connected, but the plus must be connected to the plus and the minus to the minus.
- Tin the sensor with the tape into the bush.
- The PIR sensor is mounted through the diffuser, i.e. a 10.5mm hole is drilled in the diffuser.
Use of the PIR switch
- ON/OFF when motion is detected within 2m of the sensor.
- Delay adjustment between 6-70 seconds.
Size

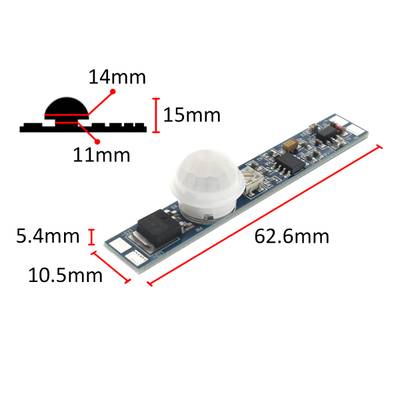

Motion sensor dimensions: 10x63 mm plus connecting wires at both ends.
- Delivery status In Stock
- Brand Ledstore
- Breadcrumbs Home Led Lights LED strip PIR switch 12-24V, max. 72W
- Category Led Lights
- SKU solder-PIR
- 96
- 24
- PIRkytkin
- 10x57mm
- 17
- 1
- 7
- Solder the switch block between strip and driver.
- CE, RoHS
New product review
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
Customer questions
No questions yet.
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
Read more on this topic:
Colour rendering of LEDs - What is the difference between CRI and Ra-value?
