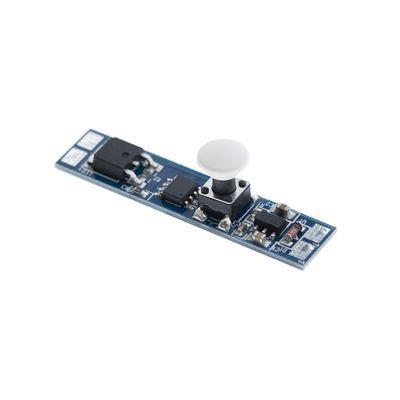

LED strip button DIMMER 12-24V, max. 72W
In stock at 71 pcs
SKU#: solder-button
0 / 5 (0)
Button dimmer for led strip. The perfect solution for the LED strip in kitchen cabinets and other applications where there is no separate wall switch for the luminaire but the luminaire is powered by a continuous current. In addition to kitchen task lighting, it can also be used for wardrobes and various night lights, etc.
Fits beautifully into our 2500mm long aluminium profiles. Can be used with both 12V and 24V ribbons. Maximum load with 12V strip 96W and with 24V strip 192W (8A). With the dimmer you do not need a dimmable transformer.
Read more
€ 25.00
VAT 0% | 24%
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
Button dimmer for led strip. The perfect solution for the LED strip in kitchen cabinets and other applications where there is no separate wall switch for the luminaire but the luminaire is powered by a continuous current. In addition to kitchen task lighting, it can also be used for wardrobes and various night lights, etc.
Fits beautifully into our 2500mm long aluminium profiles. Can be used with both 12V and 24V ribbons. Maximum load with 12V strip 96W and with 24V strip 192W (8A). With the dimmer you do not need a dimmable transformer.
Installation
Tin between the tape and the transformer (i.e. output 12-24V and input 12-24V).
- Make sure you use a DC transformer and not a DC transformer. When switching, the power should be off.
- Make sure the plus "+" and minus "-" are connected correctly to the transformer. The plus and minus must not be cross-connected, but the plus must be connected to the plus and the minus to the minus.
- Drill a 6mm hole in the cover of the mounting flange and remove the white button by pulling it out
- insert the profile cover and replace the white button.
- note that the pin is 2mm high for our low profile (cut or grind the black pin lower) and on 16x18mm profiles you should place a cap less than 8mm high
Dimming
- Short press ON/OFF
- Longer press dims/brightens the strip. So if the tape dims first, releasing the button and pressing and holding it again will make the tape brighter.
Size
Dimensions 10x55mm
- Delivery status In Stock
- Brand Ledstore
- Breadcrumbs Home LED light stripsAccessories for stripsLow voltage dimmers LED strip button DIMMER 12-24V, max. 72W
- Category Low voltage dimmers
- SKU solder-button
- 192
-
Asennus
Tinataan nauhan ja muuntajan väliin (eli output 12-24V ja input 12-24V).
- Varmista että käytät tasajännite muuntajaa etkä tasavirta muuntajaa. Kolvatessa virran tulee olla pois päältä.
- Varmista että plussa "+" ja miinus "-" on kytketty oikein muuntajaan. Plussaa ja miinusta ei saa kytkeä ristiin vaan plussa plussaan ja miinus miinukseen.
- Poraa asennuspfofiiln kanteen 6mm reikä ja irrota valkoinen nappi vetämällä
- aseta profiilin suojakansi paikoilleen ja valkoinen nappi takaisin.
- huomaa, että nappi on 2mm korkea matalaan profiiliimme (leikkaa tai hio mustaa tappia matalammaksi) ja 16x18mm profiilissa tulee asettaa alle 8mm korkea koroke
- 10x10x55mm
- 6
- 1
- 1
- Solder the dimmer block between strip and driver.
- CE, RoHS
New product review
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
Customer questions
No questions yet.
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
