LED strip aluminium profile SUSPENDED 90x80x2000mm

In stock at 8 pcs
SKU#: profile-suspended-90-2m

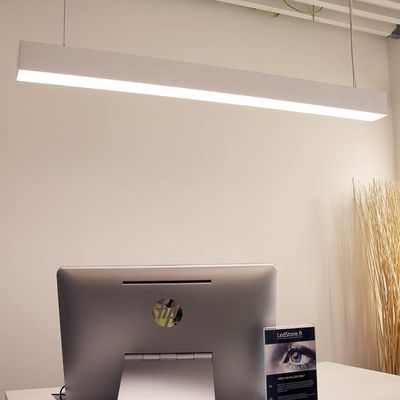

Suspendable aluminium profile for LED strip. Also comes with diffuser, hangers (1.0 m wire) and end pieces. We recommend to install 3-4 led strips in parallel on the profile. The led strip is ordered separately.

  • for up to four 16mm wide led strips
  • hanging white aluminium profile
  • includes hanging ropes, opal plastic cover, brackets and end pieces
  • IP44 splash-proof
  • the body of the LED strip light can be cut to the desired length
€ 100.20
  • Suspendable aluminium profile for LED strip, including diffuser, hangers (1.0 m wire) and end pieces. We recommend to install 3-4 led strips in parallel on the profile. When using a Helmeile 14,4W/m led strip or a Flat 17W led strip in the hanging profile, the light will be flat and spotless.

    The profile allows you to easily build a luminaire of the exact length you want. Please specify when ordering if you need more than one end piece or suspension wire. The profiles are two metres long. We can also build complete units of the desired size according to your wishes. Ask for a quote!

    Different amounts of lighting can be provided at the workstation, for example the effect of the installation height on the amount of light, as follows

    460 lux illuminance when 4 LED strips of 17 W/m are installed at a height of 2 m above the worktop on a 1.2 m long profile

    600 lux illuminance for 4 strips of 17 W/m LED at 1.5 m above the worktop on a 1.2 m long profile

    1 000 lx luminous intensity with 4 strips of 17 W/m LEDs installed at a height of 1 m above the worktop on a profile 1,2 m long.

    The wireless push-button adjustable luminaire is obtained by installing a receiver of our VaLO series inside the frame and by purchasing a push-button control for the receiver. This is also ideal for office lighting, as you can build profiles by combining even longer uniform lighting solutions.

    THE LED STRIP AND POWER SUPPLY ARE ORDERED SEPARATELY. We recommend the use of a 17W/m or 14,4W/m LED strip to create a bright and even light. The strips are sold in 5 m rolls and can be cut to the desired length in 2.5 cm or 5 cm increments. The power supply for the Led strip also fits inside the profile.

    Note! The product does not fit in the SMART BOX, so only home delivery or pick up from the store! If you want custom cut profiles and/or led strips, please contact LedStore's LedPaja for custom-made profiles.

    Suspendable aluminium profile for led strip is on display in our warehouse store.

    Size:

    Width: 90mm
    Height: 80mm
    Length: 2000mm

    Length: adjustable 0 - 1000mm

    Diffuser: opal plastic

    Material:Aluminium

    Colour:Matte white

Suspendable aluminium profile for LED strip, including diffuser, hangers (1.0 m wire) and end pieces. We recommend to install 3-4 led strips in parallel on the profile. When using a Helmeile 14,4W/m led strip or a Flat 17W led strip in the hanging profile, the light will be flat and spotless.

The profile allows you to easily build a luminaire of the exact length you want. Please specify when ordering if you need more than one end piece or suspension wire. The profiles are two metres long. We can also build complete units of the desired size according to your wishes. Ask for a quote!

Different amounts of lighting can be provided at the workstation, for example the effect of the installation height on the amount of light, as follows

460 lux illuminance when 4 LED strips of 17 W/m are installed at a height of 2 m above the worktop on a 1.2 m long profile

600 lux illuminance for 4 strips of 17 W/m LED at 1.5 m above the worktop on a 1.2 m long profile

1 000 lx luminous intensity with 4 strips of 17 W/m LEDs installed at a height of 1 m above the worktop on a profile 1,2 m long.

The wireless push-button adjustable luminaire is obtained by installing a receiver of our VaLO series inside the frame and by purchasing a push-button control for the receiver. This is also ideal for office lighting, as you can build profiles by combining even longer uniform lighting solutions.

THE LED STRIP AND POWER SUPPLY ARE ORDERED SEPARATELY. We recommend the use of a 17W/m or 14,4W/m LED strip to create a bright and even light. The strips are sold in 5 m rolls and can be cut to the desired length in 2.5 cm or 5 cm increments. The power supply for the Led strip also fits inside the profile.

Note! The product does not fit in the SMART BOX, so only home delivery or pick up from the store! If you want custom cut profiles and/or led strips, please contact LedStore's LedPaja for custom-made profiles.

Suspendable aluminium profile for led strip is on display in our warehouse store.

Size:

Width: 90mm
Height: 80mm
Length: 2000mm

Length: adjustable 0 - 1000mm

Diffuser: opal plastic

Material:Aluminium

Colour:Matte white

  • Delivery status In Stock
  • Brand Ledstore
  • Breadcrumbs Home LED light stripsAluminium profileSuspended profiles LED strip aluminium profile SUSPENDED 90x80x2000mm
  • Category Suspended profiles
  • SKU profile-suspended-90-2m
  • Change NOTE! End plugs are IP21. For outdoor use, silicone for end caps.
  • Size 90x80x2000mm
  • IP class IP44
  • Colour White
  • Installation method Hanging
New product review

Be the first to write a review!

By rating you will be entered into a prize draw for a €50 gift voucher.

Customer questions

WHAT IS CRI, THE COLOUR RENDERING INDEX

High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.

CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.


Colour rendering index

The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.

RA value

The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.



The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.

Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.


This measurement is from a 9W CCT Led spot
