LED strip aluminium profile ceiling built-in 3m

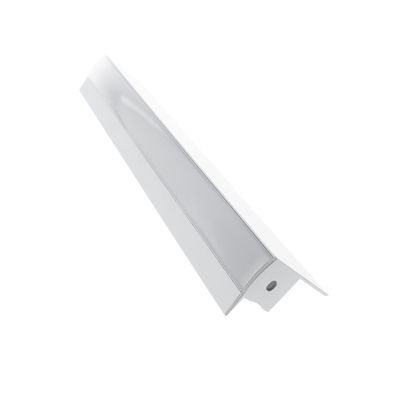

Recessed aluminium profile for LED strip in ceiling/wall, including diffuser and end caps.

Wall mounting, floor to ceiling, etc. 7.2W is sufficient for night lighting and up to 20W when more light is needed. Also works outdoors!

Ceiling/wall mounting. In the ceiling/wall fold to create indirect light in the space.

If you want a custom sized led strip or a custom made profile with your own dimensions try our custom made calculator!
With the calculator you can calculate the price for different needs with wireless control or ON/OFF use. For one or more levels!
https://ledstore.fi/palvelut/mittatilaus

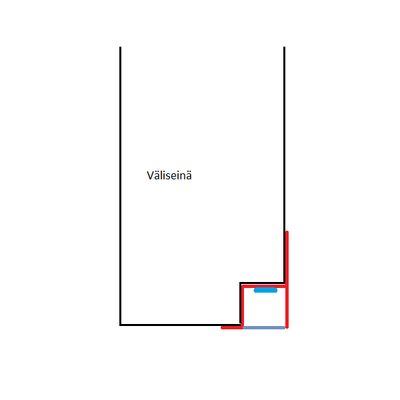

Installation methods:

- Screwed into the wall at the ceiling line and use the wing as a shelf for ceiling tiles/boards. To hide the cut marks of the roofing material.

- finish the roof and leave a 45mm deep, 25mm wide groove in the edge where the profile is installed by screwing it through the bottom. Countersinking of the screws is recommended.

- For stairs/corners, etc, cut a 25x25mm piece off the corner and fit the profile to the outside corner

From the profile you can conveniently build a luminaire of exactly the length you want. Please mention in your order if you need more than one end piece. Profiles are 2500mm long. We can also build complete units of the desired size according to your wishes. Ask for a quote!

LED RIBBON AND POWER SUPPLY ORDERED SEPARATELY. We recommend to use a 17W/m or 14,4W/m LED strip with the profile to create a bright and even light. The strips are sold in 5 m rolls and can be cut to the desired length in 2.5 cm or 5 cm increments. Led strip power supply also available.

Note! Product does not fit in SMART BOX, so only home delivery or pick up from the store! If you want custom cut profiles and/or led strips, please contact LedStore's LedPaja for a custom made order.

The aluminium profile for the led strip is on display in our warehouse shop.

Size:

Width: 35 ( recess/ if the wing is cut off 23mm)
Height: 45 ( insertion/ if the wing is cut off 23mm )
Length: 3000mm

Diffuser: opal plastic

Material: aluminium

Colour: anodised aluminium
