LED strip aluminium profile ceiling built-in 2,5m
In stock at 15 pcs
SKU#: profile-inceiling
0 / 5 (0)

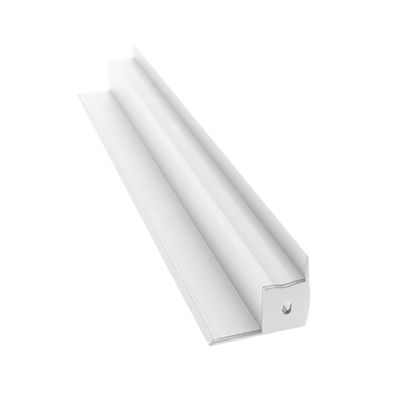

Recessed ceiling/wall aluminium edge profile for LED strip, including diffuser and end caps.
Wall, floor or ceiling installation. The profile has an internal dimension of 18x19 mm, so it can hold two 8 mm LED strips side by side, or even two side by side. With the edge trims the profile size is 45x35 mm.
There is plenty of material in the profile, so there is enough cooling surface for a 22W/m LED strip when you need a lot of light. When using a 7.2W/ LED strip, the profile provides enough light for an atmospheric evening/night light. Also works outdoors, as the plastic cover of the profile makes it splash-proof!
Ceiling/wall mounting. In the folds of the ceiling and wall to create indirect light in the space.
If you want a custom made LED strip or a custom made profile with your own dimensions, try our custom made calculator!
With the calculator you can calculate the price for different needs with wireless control or ON/OFF use. For one or more levels!
https://ledstore.fi/mittatilaus
Installation methods:
- Screwed into the wall at the ceiling line and use the wing as a shelf for ceiling tiles/boards. The profile batten thus hides the cut marks of the roof material.
- to make the ceiling ready, leave a 45mm deep, 25mm wide groove in the edge where the profile is installed by screwing it through from the bottom. Countersinking of the screws is recommended.
- For stairs/corner, etc cut a 25x25mm piece off the corner and fit the profile to the outside corner.
Read more
€ 70.00
VAT 0% | 24%
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
Recessed aluminium profile for LED strip in ceiling/wall, including diffuser and end caps.
Wall mounting, floor to ceiling, etc. 7.2W is sufficient for night lighting and up to 20W when more light is needed. Also works outdoors!
Ceiling/wall mounting. In the ceiling/wall fold to create indirect light in the space.
If you want a custom sized led strip or a custom made profile with your own dimensions try our custom made calculator!
With the calculator you can calculate the price for different needs with wireless control or ON/OFF use. For one or more levels!
https://ledstore.fi/mittatilaus
Installation methods:
- Screwed into the wall at the ceiling line and use the wing as a shelf for ceiling tiles/boards. To hide the cut marks of the roofing material.
- finish the roof and leave a 45mm deep, 25mm wide groove in the edge where the profile is installed by screwing it through the bottom. Countersinking of the screws is recommended.
- For stairs/corners, etc, cut a 25x25mm piece off the corner and fit the profile to the outside corner
From the profile you can conveniently build a luminaire of exactly the length you want. Please mention in your order if you need more than one end piece. Profiles are 2500mm long. We can also build complete units of the desired size according to your wishes. Ask for a quote!
LED RIBBON AND POWER SUPPLY ORDERED SEPARATELY. We recommend to use a 17W/m or 14,4W/m LED strip with the profile to create a bright and even light. The strips are sold in 5 m rolls and can be cut to the desired length in 2.5 cm or 5 cm increments. Led strip power supply also available.
Note! Product does not fit in SMART BOX, so only home delivery or pick up from the store! If you want custom cut profiles and/or led strips, please contact LedStore's LedPaja for a custom made order.
The aluminium profile for the led strip is on display in our warehouse shop.
Size:
Width: 35 ( recess/ if the wing is cut off 23mm)
Height: 45 ( insertion/ if the wing is cut off 23mm )
Length: 2500mm
Diffuser: opal plastic
Material: aluminium
Colour: anodised aluminium
- Delivery status In Stock
- Brand Ledstore
- Breadcrumbs Home Led AreasLED interior lights LED strip aluminium profile ceiling built-in 2,5m
- Category LED interior lights
- SKU profile-inceiling
- Installation
Kattoon/seinään asennus. Katon ja seinän taitteeseen luomaan epäsuoraa valoa tilaan.
Asennustapoja:
- Ruuvataan seinään katon rajaan kiinni ja käytetään siipeä hyllynä tuleville kattolevyille/laudoille. Piilotetaan siis katon materiaalin leikkausjäljet.
- tehdään katto valmiiksi ja jätetään 45mm syvä, 25mm leveä ura reunaan johon profiili asennetaan ruuvaamalla se pohjasta läpi. Suositellaan ruuvien senkkausta.
- Portaaseen / kulmaan, jne leikataan 25x25mm pala nurkasta pois ja asennetaan profiili ulkokulmaan
- Size 45/23x37/25x2500mm
- Length of the package 250
- Height of the package 4.5
- Width of the package 9.5
New product review
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
Customer questions
No questions yet.
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
Read more on this topic:
Colour rendering of LEDs - What is the difference between CRI and Ra-value?
