LED PANEL 120x120 - 6kpl SET, CCT, dimmable, 6W, CRI98, IP54

LED PANEL 120x120 - 6pcs SETTI, colour temperature adjustable, dimmable, 6W, CRI98, IP54

LED PANEL offering high colour rendering (CRI98) and adjustable colour temperature, making it the perfect choice for a wide range of spaces.

Set contents

• six LED PANEL 120X120 (mandatory)
• Driver
• Choose DALI2, Zigbee or RF driver for infinitely variable colour temperature control of the luminaire
• Select TRIAC driver for dimming only. In this case, the colour temperature of the light can be selected at the installation stage
• Control button (NOTE: must be the same series as the driver to work)
• Wiring harness

Luminaire features

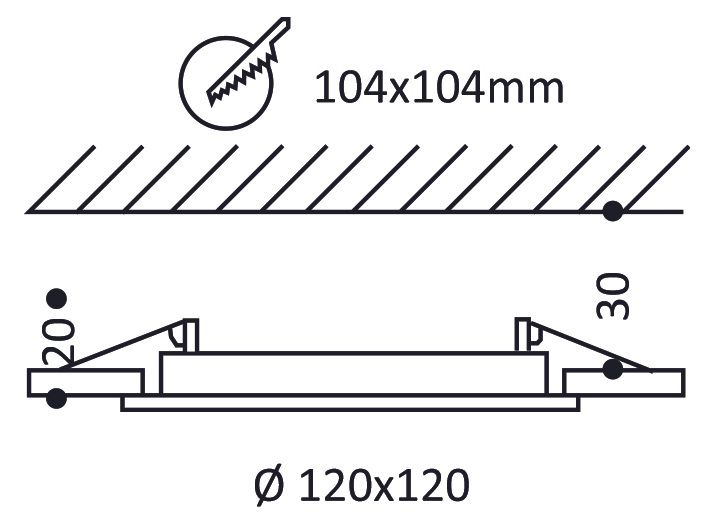

Suitable for smaller spaces, this ultra-low, flush-mounted 12 cm x 12 cm LED PANEL is ideal for plaster ceilings where it is minimalist and unobtrusive. The LED PANEL 120x120 provides 540 lumens of light output with high quality and excellent adjustability.

Can be used with on/off switch, wireless or wired dimmer, or integrated into a smart home.

We offer a 5-year warranty.

Choose driver

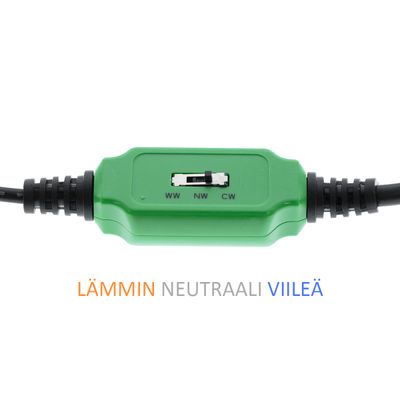

The basic driver of the luminaire is TRIAC dimmable, quick-connect and chainable, which makes installation quick and easy. The driver fits through the mounting hole in the lowering slot. The base driver has a fixed switch to select warm - neutral - cool colour temperature.

You can also choose the CCT adjustable driver for stepless colour temperature control or order without driver. If you want a luminaire with infinitely variable colour temperature control mode, your system will include a Zigbee, RF or DALI-2 driver.

Please note that a three-pole cable must run from the driver to the luminaire in order to achieve the colour temperature control.

Excellent colour rendering

The CRI is a measure of how well an LED light reproduces colours as they should be. A high CRI value indicates that the luminaire reproduces a wide range of colours. The closer you get to 100, the more naturally colours are reproduced. This LED PANEEL has a CRI of up to 98, which ensures excellent colour rendering.

Water and dust resistance

The IP rating is a standard that defines the level of protection of the luminaire against various environmental conditions. The standard uses two numbers, the first indicating protection against dust (0, no protection - 6, dustproof) and the second against moisture (0, no protection - 8, resistant to continuous immersion in water). This LED PANEL has an IP54 rating, providing protection against dust and splashing water. This luminaire is suitable for use in damp areas and outdoors, such as bathrooms or covered terraces.

Materials of the luminaire

The body of the luminaire is made of high quality aluminium, powder coated in matt white. The diffuser of the luminaire is made of matt white acrylic, which provides a uniform and pleasant light.

Ready for home automation

By choosing Zigbee, for example, you can connect the luminaires in groups via a group driver directly to your home automation system. Some of the lights that are already supported by Zigbee include.

• Philips HUE
• IKEA
• Azoula
• Home assistant (e.g. Conbee2)
• other Zibgee 3.0 systems

The luminaires can also be connected to a DALI-2 system with DALI-2 drivers. Please contact us and we will be happy to help you with your product selection.

Applications

Small size, versatile adjustment possibilities and high IP rating make this luminaire suitable for a wide range of applications. The versatile adjustment possibilities give you the freedom to create different atmospheres. This luminaire is also ideal for bathrooms or covered terraces due to its IP54 rating. You can view reference photos in our photo gallery or if you need expert help with your lighting design, you can order a lighting design from us.

Kitchens

In kitchens, this led light will create a uniform and good working light. Its small size makes it more atmospheric than large panels. Often used in place of spotlights due to its larger opening angle and less glare than spotlights. In addition to this luminaire, we recommend lighting kitchen worktops with LED strip.

Bathrooms

Light adjustability is also a recommended feature for bathrooms. Adjustability is particularly beneficial if non-white tiles are chosen for the room. Depending on the colour temperature of the light, green, for example, can be tinted either in water tones or in olive tones. By adjusting the colour temperature of the light, you can get the exact shade you want from your tiles. The small size of this panel makes it ideal for bathrooms where the placement is affected, for example, by possible rain showers.

Corridors

With this LED PANEL, you can create a uniform corridor illumination. For corridors, we recommend ordering this luminaire with a basic driver, so that the colour temperature of the light is selected with a lever during the installation phase. In bypass areas, colour temperature control of the light is often not necessary.

Why choose this product?

• Low profile body, fits in most downlights
• Uniform and pleasant light thanks to the matt diffuser
• Perfect colour rendering, CRI98
• TRIAC dimmable (with basic driver)
• Colour temperature adjustable and dimmable with Zigbee / DALI-2 / RF group drivers
• Quick and easy installation with chained base driver
• 5 year warranty
• Cost-effective

If you have any questions, please visit our store or contact us by phone or email. We are happy to help!
