Corner power supply 24V CCT 100W with Led dimmer

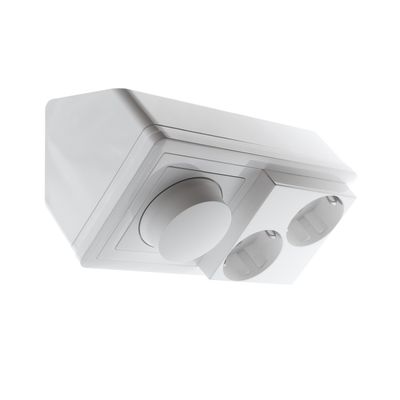

24V CCT Corner Socket with Dimmer 100W – Surface-Mounted, White

A stylish and practical surface-mounted corner socket that combines a power outlet and a 24V CCT LED dimmer in one unit. Designed especially for kitchen backsplash lighting when replacing old socket-mounted luminaires with a modern, efficient, and adjustable LED solution.

The product is built into a standard corner socket frame with space for two modules. One outlet position is replaced with a 24V CCT 100W LED dimmer with integrated power supply.

Includes:

• 1 x 230V double angled power outlet (Schneider Exxact type)

• 1 x 24V CCT LED dimmer + integrated transformer

• All in one clean corner housing – no separate drivers under or above cabinets

Perfect for Kitchen Backsplash Lighting

A popular solution in kitchen renovations where old fluorescent socket lights are replaced with modern LED strip lighting.

The dimmer supports up to:

• approx. 5 meters of powerful 30W/m CCT LED strip (approx. 1100 lm/m – ideal for task lighting)

• up to 12 meters of 14.4W/m CCT LED strip (approx. 600 lm/m)

Because the transformer is integrated inside the corner socket, there is no need to hide a separate power supply inside cabinets or plinths. The result is clean, serviceable, and professional.

Dimming & Color Temperature Control from One Knob

The integrated 24V CCT dimmer works like a traditional wall dimmer:

• Rotate to adjust brightness

• Double-click to switch to color temperature adjustment (warm ↔ cool)

Wired control ensures reliable operation without apps, wireless connections, or batteries.

Structure & Connections

• Surface-mounted corner unit

• Color: White

• 1 x 230V double angled outlet

• 1 x 24V CCT dimmer (100W)

• 230V input

• 24V output: +, WW, CW

Designed using a standard corner socket body where one outlet module is replaced with the dimmer.

Ideal Replacement for Old Socket Lights

Many kitchens still have old fluorescent socket lights (e.g. JANA type fixtures). This solution enables upgrading to:

• LED strip lighting

• Adjustable color temperature

• Smooth dimming

• No external transformer

For multi-zone kitchens or more complex layouts, a Zigbee-based wireless system is recommended.

Installation

Connect to 230V supply like a standard surface-mounted outlet.
The dimmer converts voltage to 24V DC and feeds the CCT LED lighting directly.

LED output terminals:

• • (24V)

• WW (warm white)

• CW (cool white)

Recommended: 3-core CCT cable.
Installation must be performed by a licensed electrician.

Technical Specifications

Dimmer

• Input: 230V AC

• Output: 24V DC

• Max load: 100W

• Output type: +, WW, CW (3-wire CCT)

Socket Components (Schneider Electric Exxact series, white):

• Angled outlet

• 2-gang surface corner mounting box

• 2-gang combi cover plate with adapter

Limitations

• Maximum load 100W – calculate total LED strip wattage carefully

• Compatible only with 24V CCT LED products (not single-color strips)

• Not wireless / not smart-home controllable

A Clean & Modern Kitchen Lighting Solution

• Outlet and LED dimmer in one frame

• No external transformer

• Adjustable task and ambient lighting

• Minimal and professional installation

LedStores customer service is happy to help with the correct LED strip solution for your kitchen.
