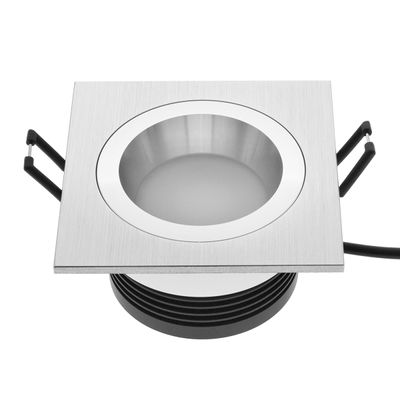

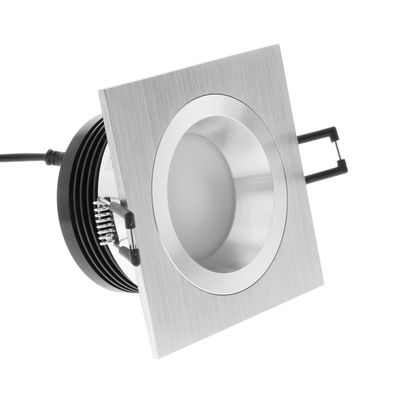

LED downlight — SQUARE SQ023, IP54, dimmable 9W, brushed aluminum, high CRI97, 3000K

Superior technology

LED HIGH LEVEL (IP54), brushed aluminium. The luminaire is dimmable and moisture-proof (IP54). The LED circuitry is made of high quality Cree LED circuits with a colour rendering index (CRI) of over 97, which reproduce the colours of the interior naturally. The light comes beautifully from a single point in the luminaire. The luminaire is available in both 3000K (warm white) and 4000K (neutral white).

The LED CHINTEE KANTTI is a flush mount luminaire in cast aluminium with the LED circuitry mounted directly on the body. The solution achieves maximum thermal conductivity and safe operating temperature (below 50 degrees Celsius). The low operating temperature guarantees a long lifetime of 50,000h and we grant a 5 year warranty on our manufactured luminaire! The light source is slightly recessed (comfort), so the amount of side glare is minimised! The luminaire is also available in a round version. The LED module of the luminaire is removable and replaceable.

<img src="{{media url="wysiwyg/Led_Spots.png"}}" alt="Led Spots" />

Click here for installation examples and photos

Installation

The luminaire is very low, only 60mm high! This means that the luminaire will fit into a typical roof structure with only 48x48mm insulation and 13mm plasterboard under the vapour barrier. We recommend installing a piece of board or plasterboard above the luminaire to prevent the insulation from sagging. The mounting hole is circular, which makes it easy to make mounting holes. The diameter of the mounting hole is 76-80mm.

Each luminaire is supplied with its own chained power supply, which fits through the mounting hole into the mounting space. By moving the power supply away from the luminaire, we prevent the power supply from heating up the luminaire, and we can keep the size of the luminaire small. The power supplies are long-lived and this also allows us to avoid the typical problem with halogen lamps, where one power supply is subjected to a heavy load and gets hot, and breaks the luminaire. There is a quick connector between the luminaire and the power supply to facilitate installation.

Dimming

The luminaire can be dimmed with a wireless dimmer or TRIAC dimmers, from the ENSIO side, and they also work with home automation systems such as KNX, Talomatti, etc. You can also order suitable dimmers from us, "Led dimmers"

They work very well for example:

• ABB (former Ensto) Jussi 6523U
• Schneider (ex strömfors) transistor controller 315W/VA EXXACT

Led spot applications

LED spotlights are suitable for general lighting from private homes to public spaces. In terms of luminous intensity, the LED HIGH LEVEL (IP54) is equivalent to 50W halogen, i.e. 600 lumens. The luminaire is moisture-proof and suitable for use in bathrooms and outdoor spaces (terraces), but it can also be used in dry areas, as the light source is slightly recessed and there is little side glare.

All our luminaires are CE and RoHS approved.
