LED downlight — SQUARE SQ023, IP54, CCT 2700-4000-5300K,dimmable 15W, BRUSHED, high CRI98

LED KANTTI 023 (brushed) 15W is dimmable and moisture-proof (IP54), also from behind. This is a more efficient version of our popular luminaire for demanding applications. As LED circuit we use high quality Citizen LED circuits with a colour rendering index (CRI) of 98 (full spectrum!) and the colours are reproduced as they should be. In the luminaire, the light comes beautifully from a single point. The luminaire is also available in black and white.

LED KANTTI 023 is suitable for general lighting applications from private homes to public spaces. The LED KANTTI 023 has a light output equivalent to at least 75W halogen, +1000 Lumen. The luminaire has an extra lens with light equalisation, which when removed, provides 1250 Lumen.

A 9W version of the luminaire is also available for basic use.

The luminaire has an adjustable light temperature of 2700-4000-5300K with a switch, so you can choose the right colour for your interior. Even change according to the seasons! If you want to adjust the light wirelessly without a ladder, you need a VaLO transformer and a wireless button.

The luminaire is IP54, which means it is splash-proof, even from behind. The transformer of the luminaire is not splash-proof, but can withstand outdoor eaves.

LED KANTTI 023 is a flush mounted luminaire in cast aluminium, with the LED circuitry mounted directly on the body. The solution achieves maximum thermal conductivity and safe operating temperature (below 50 degrees Celsius). The low operating temperature and the high quality LED circuit guarantees a long lifetime of 50,000h and we grant a 7 year warranty on our manufactured luminaire!

The LED module of the luminaire is removable and replaceable.

<img src="{{media url="wysiwyg/Led_Spotit.png"}}" alt="Led Spotlights" />

Click here for installation examples and photos

Installation

The luminaire has a solid body. The luminaire is very low, only 50mm high! The luminaire will therefore fit into a typical roof structure with only 48x48mm of insulation and 13mm plasterboard under the vapour barrier. We recommend installing a piece of board or plasterboard above the luminaire to prevent the insulation from sagging. The diameter of the mounting hole is 78mm.

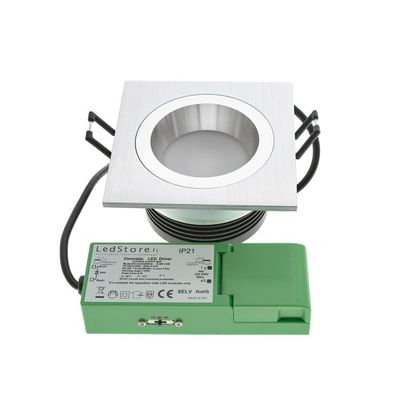

Each luminaire is supplied with its own chained power supply which fits through the mounting hole into the mounting space. By moving the power supply away from the luminaire, we prevent the power supply from heating up the luminaire, as well as being able to keep the size of the luminaire small. The power supplies are long-lived and this also allows us to avoid the typical problem with halogen lamps, where one power supply is subjected to a heavy load and gets hot, and breaks the luminaire. There is a quick connector between the luminaire and the power supply to facilitate installation. The light colour change is made by the switch on the power supply.

Dimming

The luminaire can be dimmed with a wireless dimmer or TRIAC dimmers, from the ENSIO side, and they also work with home automation such as KNX. Suitable dimmers can also be ordered from us, "Led dimmers"

They work well for example:

• ABB (former Ensto) Jussi 6523U
• Schneider (ex strömfors) transistor controller 315W/VA (EXXACT)!
• VaLO Triac dimmer with remote control option

All our luminaires are CE and RoHS approved.
