Two round LED lights in a stylish silver frame and white power converter, elegant design with black background for modern lighting solutions.

LED downlight — SQUARE DOUBLE, adjustable & dimmable 2x9W, brushed aluminium, high CRI97, 3000K

Name: LED downlight — SQUARE DOUBLE, adjustable & dimmable 2x9W, brushed aluminium, high CRI97, 3000K
Brand: Ledstore
SKU: SQ233BR-3000
Price: 140.70 EUR
Availability: InStock

In stock at 34 pcs

SKU#: SQ233BR-3000

★

0 / 5 (0)

The LED FIRE CANTLE (brushed aluminium) luminaire is dimmable and moisture-proof (IP44). The luminaire is equivalent to 2x50W halogen, consuming only 2x9W. It has a colour rendering index (CRI) of 97 and reproduces colours in a natural way.

This is a discontinued product.

2x600 lumens
Brushed aluminium
Perfect colour rendering CRI 97
To be directed to
Warm white light 3000K

€ 140.70

Add a comment to the order

Delivery methods

Free shipping for orders over to %s

Payment Methods

Pay safely with Credit/Debit Cards, Paypal and others.

Easy returns

Right of return for 14 days

Product description
Superior technology

The LED TUPLA KANTTI (brushed aluminium) luminaire is dimmable and moisture-proof (IP44). With a colour rendering index (CRI) of 97, the colours in your interior will look natural. The luminaire is equivalent to 2x50W halogen (2x600 lumens) and is available in both 3000K (warm white) and 4000K (neutral white).

LED TUPLA KANTTI is a flush mount luminaire in cast aluminium with LED circuitry directly mounted on the body. The solution achieves maximum thermal conductivity and safe operating temperature (below 50 degrees Celsius). The low operating temperature guarantees a long lifetime, 50,000 and we grant a 5 year warranty on our manufactured luminaire! The luminaire is also available in matt white.

NOTE: This is a discontinued product and these are the last pieces.

Led luminaire installation

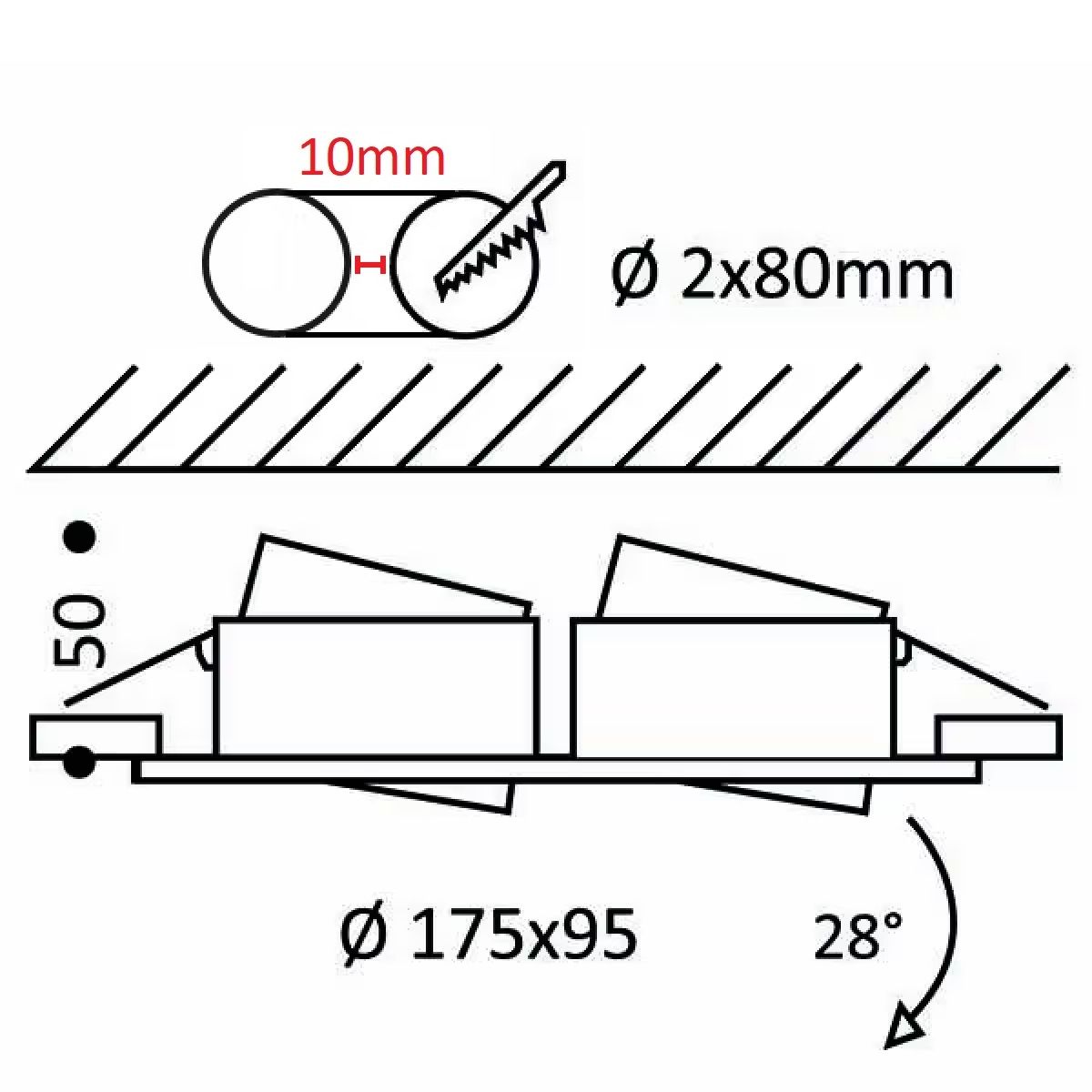

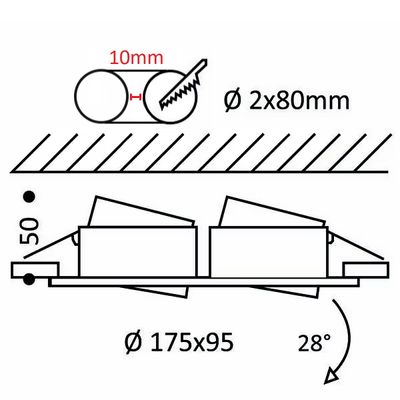

The luminaire is directional, 0-28 degrees. The luminaire is very low, only 45-50mm high (6mm more when oriented)! The luminaire will therefore fit into a typical roof structure with just 48x48mm of coloured board and 13mm plasterboard under the vapour barrier. We recommend installing a piece of board or plasterboard above the luminaire to prevent the insulation from sagging. The mounting hole is an ellipse, 2x80mm holes are drilled 1cm apart and any excess pieces are removed between the holes.

Each luminaire is supplied with its own chained power supply which fits through the mounting hole into the mounting space. By moving the power supply away from the luminaire, we prevent the power supply from heating up the luminaire, and we can keep the size of the luminaire small. The power supplies are long-lived and this also allows us to avoid the typical problem with halogen lamps, where one power supply is subjected to a heavy load and gets hot, and breaks the luminaire. There is a quick connector between the luminaire and the power supply for easy installation.

Dimming

The luminaire can be dimmed with a wireless dimmer or TRIAC dimmers, from the ENSIO side, and they also work with home automation systems such as KNX, Talomatti, etc. You can also order suitable dimmers from us, "Led dimmers"

They work very well for example:
- ABB (former Ensto) Jussi 6523U
- Schneider (ex strömfors) transistor controller 315W/VA EXXACT
All our lamps are CE and RoHS approved..
Further information
Reviews
FAQ
Installation
CRI

Superior technology

The LED TUPLA KANTTI (brushed aluminium) luminaire is dimmable and moisture-proof (IP44). With a colour rendering index (CRI) of 97, the colours in your interior will look natural. The luminaire is equivalent to 2x50W halogen (2x600 lumens) and is available in both 3000K (warm white) and 4000K (neutral white).

LED TUPLA KANTTI is a flush mount luminaire in cast aluminium with LED circuitry directly mounted on the body. The solution achieves maximum thermal conductivity and safe operating temperature (below 50 degrees Celsius). The low operating temperature guarantees a long lifetime, 50,000 and we grant a 5 year warranty on our manufactured luminaire! The luminaire is also available in matt white.

NOTE: This is a discontinued product and these are the last pieces.

Led luminaire installation

The luminaire is directional, 0-28 degrees. The luminaire is very low, only 45-50mm high (6mm more when oriented)! The luminaire will therefore fit into a typical roof structure with just 48x48mm of coloured board and 13mm plasterboard under the vapour barrier. We recommend installing a piece of board or plasterboard above the luminaire to prevent the insulation from sagging. The mounting hole is an ellipse, 2x80mm holes are drilled 1cm apart and any excess pieces are removed between the holes.

Each luminaire is supplied with its own chained power supply which fits through the mounting hole into the mounting space. By moving the power supply away from the luminaire, we prevent the power supply from heating up the luminaire, and we can keep the size of the luminaire small. The power supplies are long-lived and this also allows us to avoid the typical problem with halogen lamps, where one power supply is subjected to a heavy load and gets hot, and breaks the luminaire. There is a quick connector between the luminaire and the power supply for easy installation.

Dimming

The luminaire can be dimmed with a wireless dimmer or TRIAC dimmers, from the ENSIO side, and they also work with home automation systems such as KNX, Talomatti, etc. You can also order suitable dimmers from us, "Led dimmers"

They work very well for example:

ABB (former Ensto) Jussi 6523U
Schneider (ex strömfors) transistor controller 315W/VA EXXACT

All our lamps are CE and RoHS approved..

Delivery status In Stock
Brand Ledstore
Breadcrumbs Home Led Lights LED downlights Square spots LED downlight — SQUARE DOUBLE, adjustable & dimmable 2x9W, brushed aluminium, high CRI97, 3000K
Category Square spots
SKU SQ233BR-3000
Lumen 1200
Change Dimmable, chainable transformer. Tilt 0-28 degrees.
Size Height 45-50mm, cutout 2x80mm, 1 cm apart
Mounting hole (mm) 170
Wattage 18
Colour temperature (K) 3000
Light control One colour
Colour rendering (CRI ±3) 97
IP class IP44
Colour Brushed
Immennys Dimmable
Adjustability Adjustable
Chainable Yes
Guarantee (year) 5 years
Life span 50000
Installation method Recessed
Format Square
Approval CE, RoHS, IP54
Designed in Finland Yes

New product review

Be the first to write a review!

By rating you will be entered into a prize draw for a €50 gift voucher.

Customer questions

No questions yet.

WHAT IS CRI, THE COLOUR RENDERING INDEX

High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.

CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.

Colour rendering index

The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.

RA value

The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.

The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.

Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.

This measurement is from a 9W CCT Led spot
