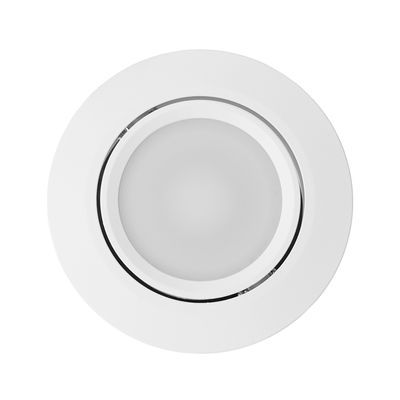

LED downlight — ROUND, IP44, CCT 2700-4000-5300K adjustable & dimmable 15W, WHITE, high CRI98 24V/230V

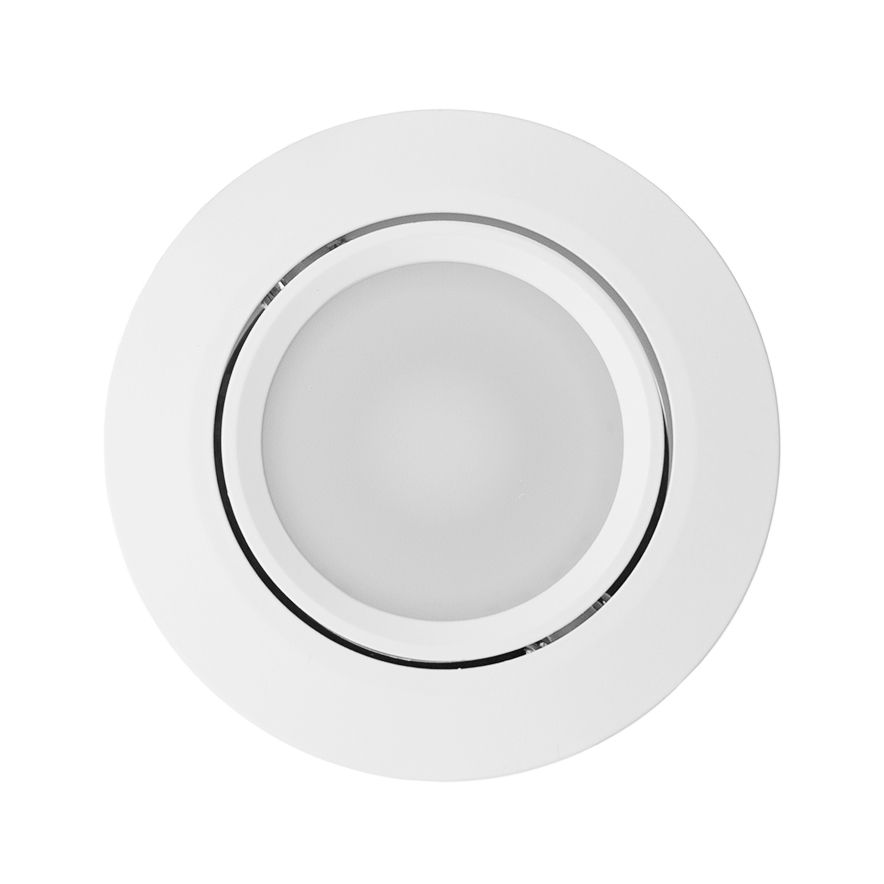

LED PYRERE 033 (white) is dimmable and moisture-proof (IP44). We use high quality Citizen LED circuits with a colour rendering index (CRI) of 98 (full spectrum!) and the colours are reproduced as they should be. The light in the luminaire comes beautifully from a single point. The lamp is also available in silver and black.

LED PYRE GREEN 033 is suitable for general lighting applications from private homes to public spaces. The LED PYÖREÄ 033 has a luminous intensity equivalent to at least 75W halogen, +1000 Lumen. The luminaire is equipped with an auxiliary lens which, when removed, increases the light output to 1250 Lumen. The directionality of the luminaire makes it suitable for sloping ceilings.

A 9W version is also available for basic use.

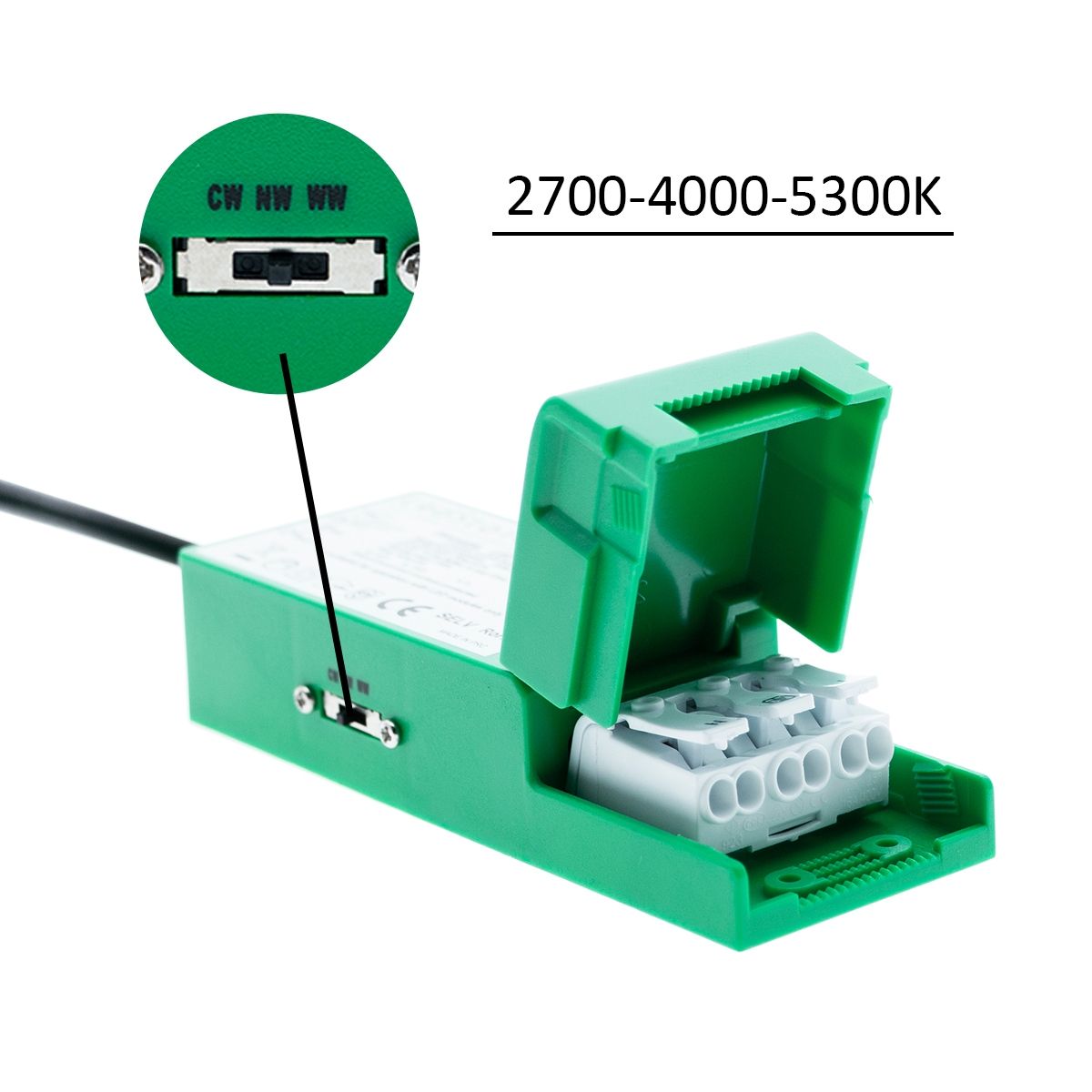

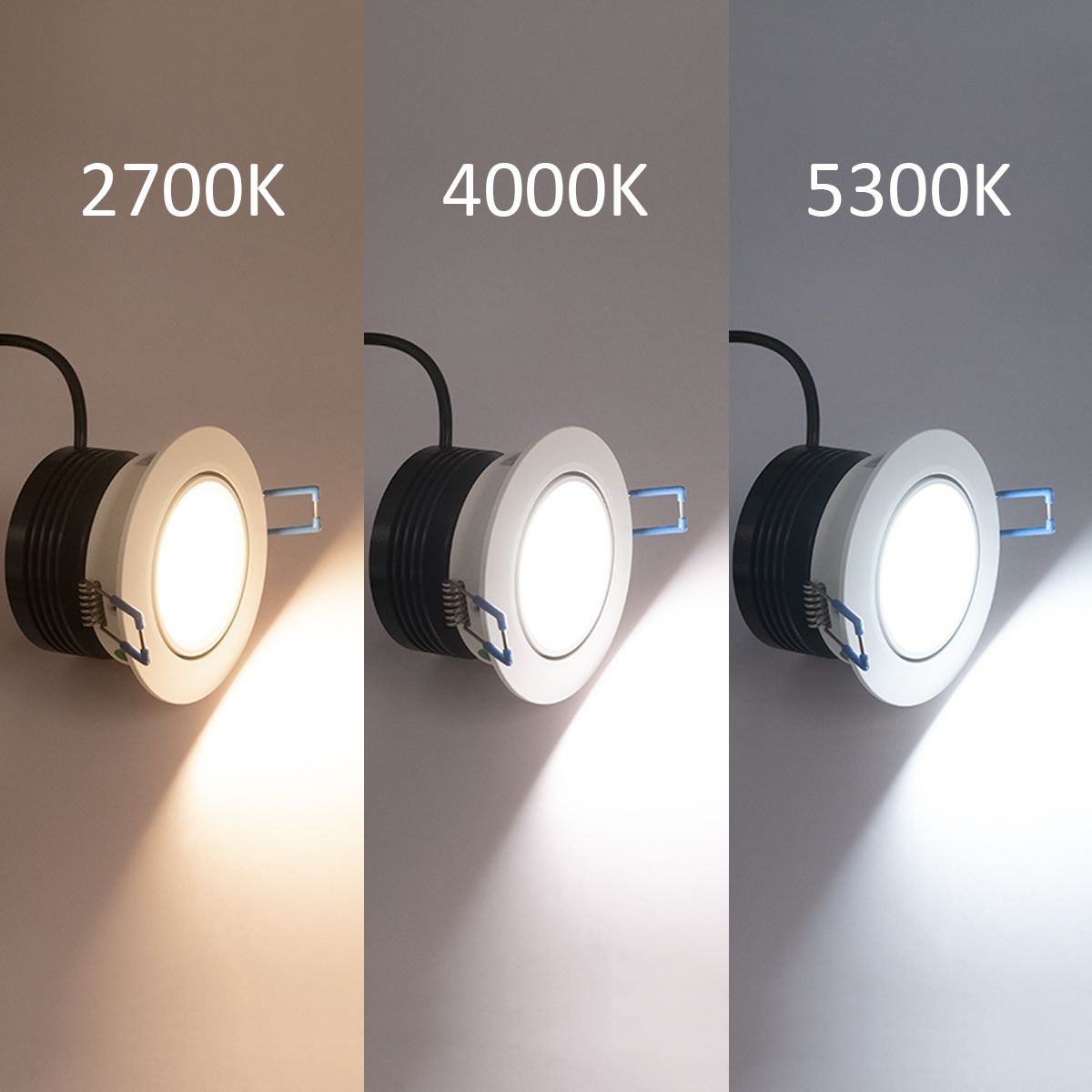

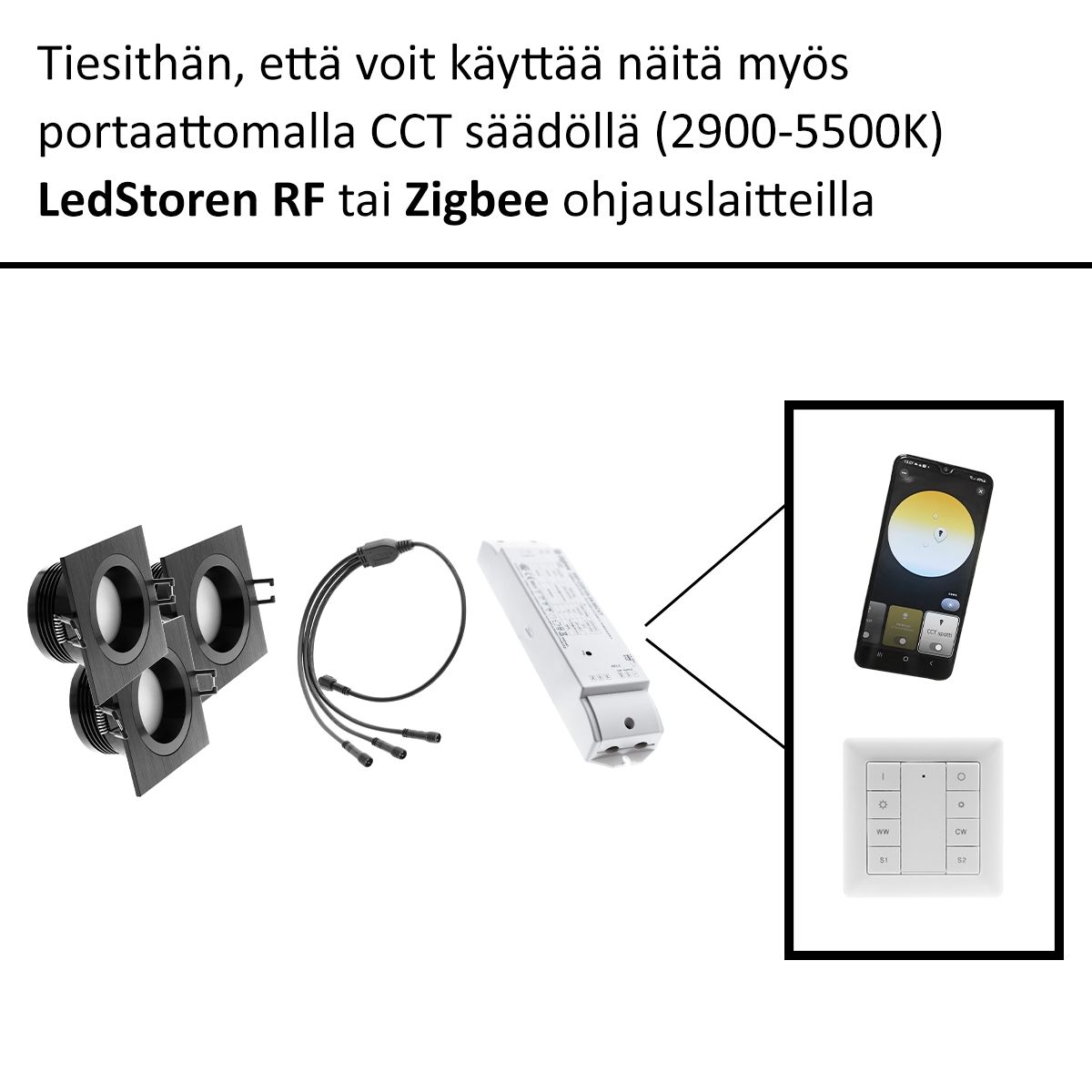

The luminaire has an adjustable light temperature of 2700-4000-5300K with a switch, so you can choose the right colour for your interior. To connect the light to the infinitely variable light colour temperature control, omit the basic transformer and get a suitable 24V Zigbee/DALI/RF transformer for the luminaire group.

The luminaire is IP44, meaning the luminaire is splashproof. If you want to be sure that the luminaire will last the promised 50,000 hours, then due to its directionality we do not recommend for bathroom ceilings connected to saunas, where water vapour can enter the mounting space between the luminaire frame. The transformer of the luminaire is not damp-proof, but will withstand outdoor use in eaves.

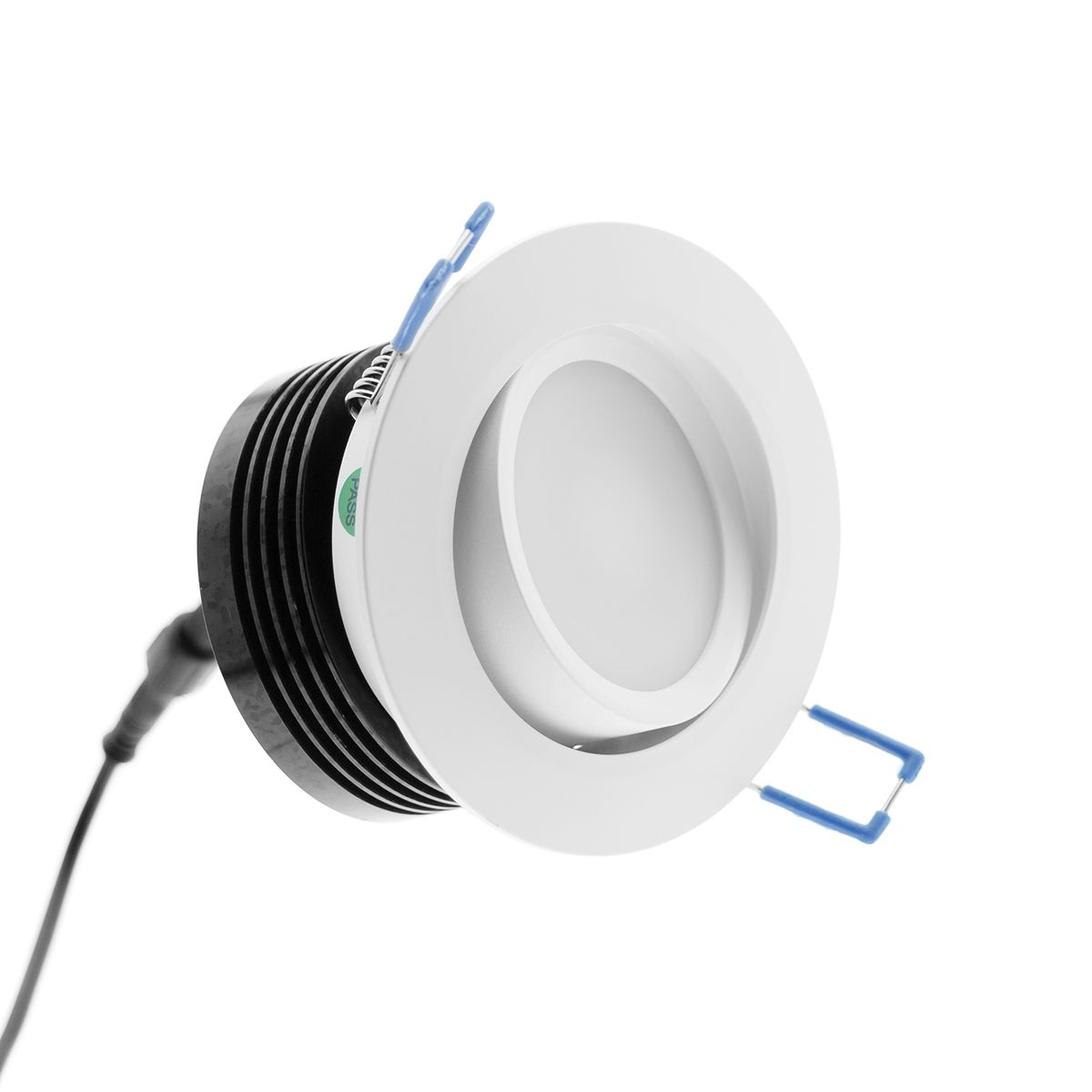

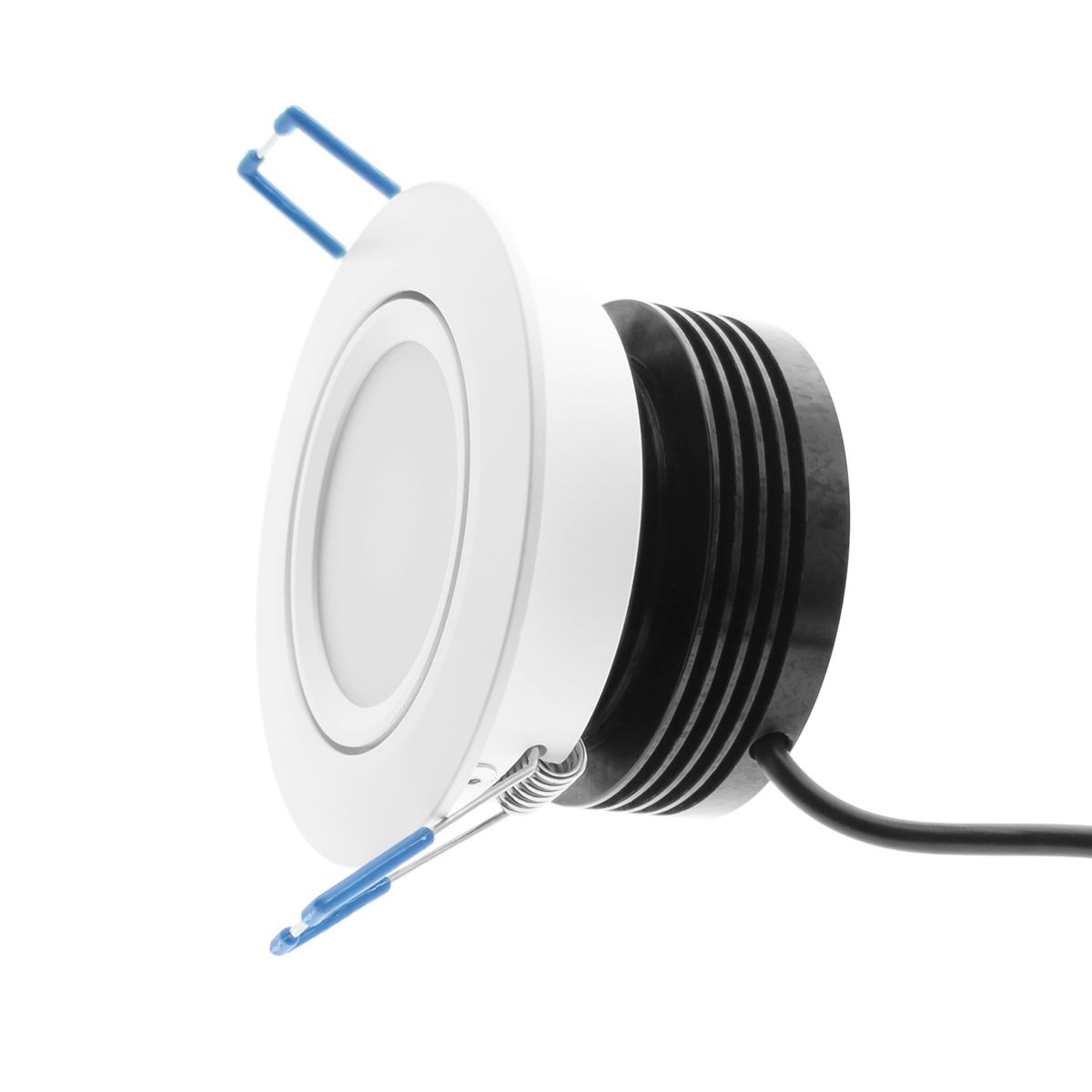

LED PYRERE 033 is a recessed luminaire in cast aluminium, with the LED circuit directly fixed to the frame. The solution achieves maximum thermal conductivity and safe operating temperature (below 50 degrees Celsius). The low operating temperature and the high quality LED circuit guarantees a long lifetime of 50,000h and we grant a 7 year warranty on our manufactured luminaire!

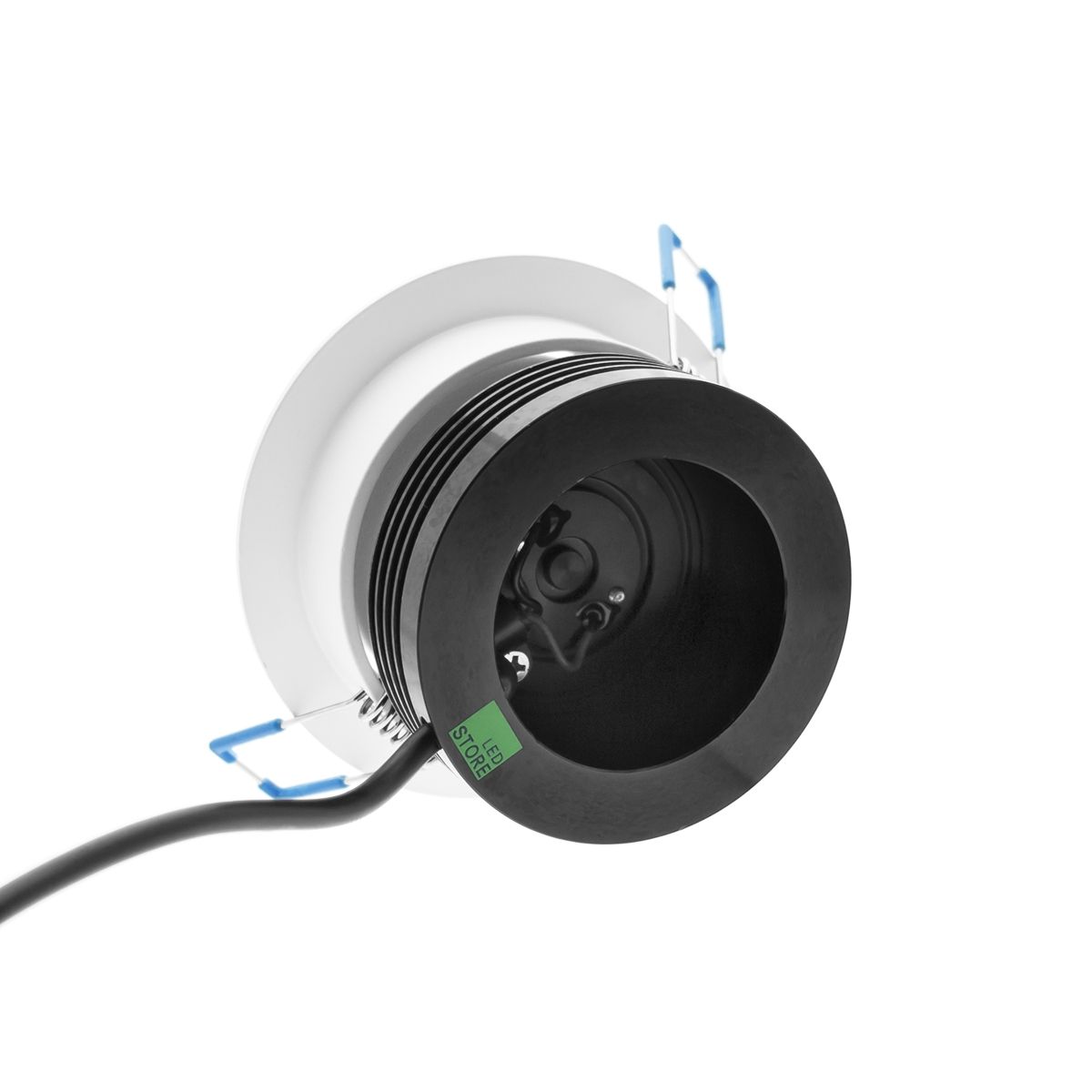

The LED module of the luminaire is removable and replaceable.

See here for installation examples and ideas

Installation

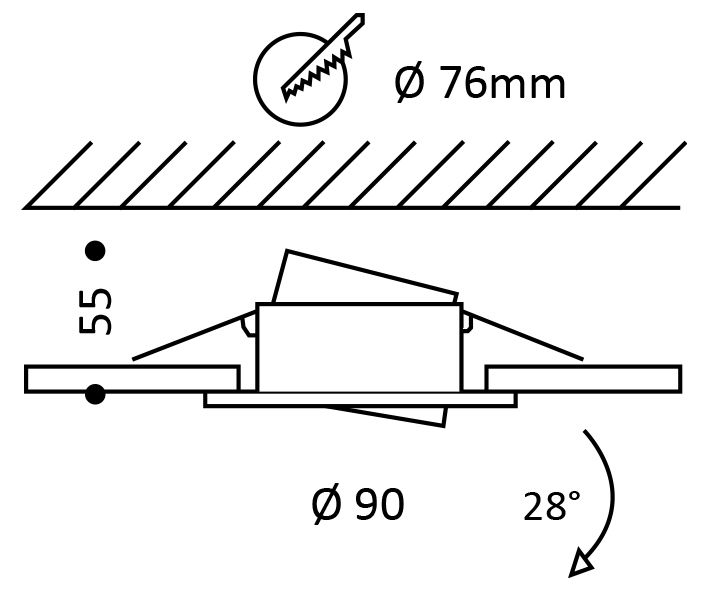

The luminaire is directional, 0-28 degrees. The luminaire is very low, only 50-60mm high! The luminaire will therefore fit into a typical roof structure with only 48x48mm of collimation and 13mm plasterboard under the vapour barrier. We recommend installing a piece of board or plasterboard above the luminaire to prevent the insulation from sagging. The diameter of the mounting hole is 76-80mm.

Each luminaire is supplied with its own chained power supply which fits through the mounting hole into the mounting space. By moving the power supply away from the luminaire, we prevent the power supply from heating up the luminaire, and we can keep the size of the luminaire small. The power supplies are long-lived and this also allows us to avoid the typical problem with halogen lamps, where one power supply is subjected to a heavy load and gets hot, and breaks the luminaire. There is a quick connector between the luminaire and the power supply to facilitate installation.

Dimming

The luminaire can be dimmed with a wireless dimmer or TRIAC dimmers, from the ENSIO side, and they also work with home automation such as KNX. Suitable dimmers can also be ordered from us, "Led dimmers"

They work well for example:

• ABB (former Ensto) Jussi 6523U
• Schneider (ex strömfors) transistor controller 315W/VA (EXXACT)!
• VaLO Triac dimmer with remote control option

All our luminaires are CE and RoHS approved.
