LED downlight — ROUND, IP44, CCT 2700-4000-5300K adjustable & dimmable 15W, WHITE, high CRI98

In stock at
SKU#: 033W-CCT-15W

LED PYRERE 033 (white) 15W is dimmable and moisture-proof (IP44). The luminaire has a colour rendering index (CRI) of 98 (full spectrum) and an adjustable light temperature of 2700-4000-5300K. The luminous intensity is equivalent to +75W halogen.

Read more
from € 89.00
VAT 0% | 24%
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
  • Product description

    LED PYRERE 033 (white) is dimmable and moisture-proof (IP44). We use high quality Citizen LED circuits with a colour rendering index (CRI) of 98 (full spectrum!) and the colours are reproduced as they should be. The light in the luminaire comes beautifully from a single point. The lamp is also available in silver and black.

    LED PYRE GREEN 033 is suitable for general lighting applications from private homes to public spaces. The LED PYÖREÄ 033 has a luminous intensity equivalent to at least 75W halogen, +1000 Lumen. The luminaire is equipped with an auxiliary lens which, when removed, increases the light output to 1250 Lumen. The directionality of the luminaire makes it suitable for sloping ceilings.

    A 9W version is also available for basic use.

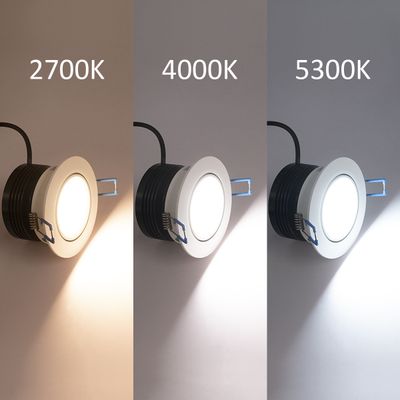

    The luminaire has an adjustable light temperature of 2700-4000-5300K with a switch, so you can choose the right colour for your interior. Even change according to the seasons! If you want to adjust the light wirelessly without a ladder, you need a VaLO transformer and a wireless button.

    The luminaire is IP44, which means it is splash-proof. If you want to be sure that the luminaire will last the promised 50,000 hours, then due to its directionality we do not recommend for bathroom ceilings connected to saunas, where water vapour can enter the installation space between the luminaire frame. The transformer of the luminaire is not damp-proof, but will withstand outdoor use in eaves.

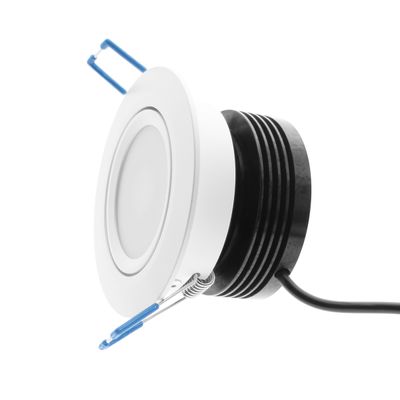

    LED PYRERE 033 is a recessed luminaire in cast aluminium, with the LED circuit directly fixed to the frame. The solution achieves maximum thermal conductivity and safe operating temperature (below 50 degrees Celsius). The low operating temperature and the high quality LED circuit guarantees a long lifetime of 50,000h and we grant a 7 year warranty on our manufactured luminaire!

    The LED module of the luminaire is removable and replaceable.

    <img src="{{media url="wysiwyg/Led_Spotit.png"}}" alt="Led Spotlights" />

    Click here for installation examples and photos

    Installation

    The luminaire is directional, 0-28 degrees. The luminaire is very low, only 50-60mm high! The luminaire will therefore fit into a typical roof structure with only 48x48mm of insulation and 13mm plasterboard under the vapour barrier. We recommend installing a piece of board or plasterboard above the luminaire to prevent the insulation from sagging. The mounting hole diameter is 76-80mm.

    Each luminaire is supplied with its own chained power supply which fits through the mounting hole into the mounting space. By moving the power supply away from the luminaire, we prevent the power supply from heating up the luminaire, and we can keep the size of the luminaire small. The power supplies are long-lived and this also allows us to avoid the typical problem with halogen lamps, where one power supply is subjected to a heavy load and gets hot, and breaks the luminaire. There is a quick connector between the luminaire and the power supply to facilitate installation.

    Dimming

    The luminaire can be dimmed with a wireless dimmer or TRIAC dimmers, from the ENSIO side, and they also work with home automation such as KNX. Suitable dimmers can also be ordered from us, "Led dimmers"

    They work well for example:

    • ABB (former Ensto) Jussi 6523U
    • Schneider (ex strömfors) transistor controller 315W/VA (EXXACT)!
    • VaLO Triac dimmer with remote control option

    All our luminaires are CE and RoHS approved.

  • Further information
  • Reviews
  • FAQ
  • Mounting dimensions
  • Zigbee CCT
  • RF CCT
  • DALI2 CCT
  • CCT Cables
  • CRI
  • ADesignAward

LED PYRERE 033 (white) is dimmable and moisture-proof (IP44). We use high quality Citizen LED circuits with a colour rendering index (CRI) of 98 (full spectrum!) and the colours are reproduced as they should be. The light in the luminaire comes beautifully from a single point. The lamp is also available in silver and black.

LED PYRE GREEN 033 is suitable for general lighting applications from private homes to public spaces. The LED PYÖREÄ 033 has a luminous intensity equivalent to at least 75W halogen, +1000 Lumen. The luminaire is equipped with an auxiliary lens which, when removed, increases the light output to 1250 Lumen. The directionality of the luminaire makes it suitable for sloping ceilings.

A 9W version is also available for basic use.

The luminaire has an adjustable light temperature of 2700-4000-5300K with a switch, so you can choose the right colour for your interior. Even change according to the seasons! If you want to adjust the light wirelessly without a ladder, you need a VaLO transformer and a wireless button.

The luminaire is IP44, which means it is splash-proof. If you want to be sure that the luminaire will last the promised 50,000 hours, then due to its directionality we do not recommend for bathroom ceilings connected to saunas, where water vapour can enter the installation space between the luminaire frame. The transformer of the luminaire is not damp-proof, but will withstand outdoor use in eaves.

LED PYRERE 033 is a recessed luminaire in cast aluminium, with the LED circuit directly fixed to the frame. The solution achieves maximum thermal conductivity and safe operating temperature (below 50 degrees Celsius). The low operating temperature and the high quality LED circuit guarantees a long lifetime of 50,000h and we grant a 7 year warranty on our manufactured luminaire!

The LED module of the luminaire is removable and replaceable.

<img src="{{media url="wysiwyg/Led_Spotit.png"}}" alt="Led Spotlights" />

Click here for installation examples and photos

Installation

The luminaire is directional, 0-28 degrees. The luminaire is very low, only 50-60mm high! The luminaire will therefore fit into a typical roof structure with only 48x48mm of insulation and 13mm plasterboard under the vapour barrier. We recommend installing a piece of board or plasterboard above the luminaire to prevent the insulation from sagging. The mounting hole diameter is 76-80mm.

Each luminaire is supplied with its own chained power supply which fits through the mounting hole into the mounting space. By moving the power supply away from the luminaire, we prevent the power supply from heating up the luminaire, and we can keep the size of the luminaire small. The power supplies are long-lived and this also allows us to avoid the typical problem with halogen lamps, where one power supply is subjected to a heavy load and gets hot, and breaks the luminaire. There is a quick connector between the luminaire and the power supply to facilitate installation.

Dimming

The luminaire can be dimmed with a wireless dimmer or TRIAC dimmers, from the ENSIO side, and they also work with home automation such as KNX. Suitable dimmers can also be ordered from us, "Led dimmers"

They work well for example:

  • ABB (former Ensto) Jussi 6523U
  • Schneider (ex strömfors) transistor controller 315W/VA (EXXACT)!
  • VaLO Triac dimmer with remote control option

All our luminaires are CE and RoHS approved.

  • Delivery status In stock at
  • Brand Ledstore
  • Breadcrumbs Home By featuresLED for wet spacesLED IP44 - IP65 LED downlight — ROUND, IP44, CCT 2700-4000-5300K adjustable & dimmable 15W, WHITE, high CRI98
  • Category LED IP44 - IP65
  • SKU 033W-CCT-15W
  • Wattage 15
  • Mounting hole 76
  • Lumen 1250
  • Designed in Finland Yes
  • Colour White
  • Installation

    Led ROUND 033 is adjustable and can be tilted 0-28 degrees. This light is very low, only 50-60mm in height. Fits to typical ceiling structure where there is 48x48 ceiling frame and 13mm plaster board. We recommend you to install a piece of plaster board on top of the light to stop the insulation from pressing on to the light. Installation hole is 76-80mm in diameter.

    All led spots come with driver that fits in from the installation hole. By having a seperate driver, we have reduced the temperature of the light, making it last longer. There is a quick connector on the cord between the lamp and the driver to make installation easy.

    This light has adjustable white colour temperature with 3 steps: 2700-4000-5300K. Always turn power off before changing colour, otherwise you will damage light.

  • Light control 176
  • Life span 50000
  • Model Led-033W-CCT-15W
  • Size Lenght 50-60mm, installation hole 76-80mm
  • Length of the package 12
  • Height of the package 10
  • Width of the package 12
  • Diameter of the product 9
  • Change Dimmable, driver included, 3 Colour temperatures in one!
  • Approval CE, RoHS, IP44
  • PDF led03315wspotti.pdf
  • PDF led03315wspotti.pdf
New product review

Be the first to write a review!

By rating you will be entered into a prize draw for a €50 gift voucher.

Customer questions
  • What is CCT?
  • What is the difference between stepwise or freely adjustable CCT lighting?
  • How do CCT adjustable luminaires work?
  • How to connect continuously variable CCT lighting?
  • Can I use the VaLO-INWALL-CCT-400W hardwired controller at the same time as an RF wireless controller?
  • Can I control CCT lights from multiple locations?
  • I want to time the startup for bright daylight in the morning and warm and slightly dimmed light in the evening. Is it possible to control the light according to the season or time of day?
  • What are the brands of CCT LED lamps sold on LedStore?
  • What is the lifetime of LedStore's led spotlights?
  • Are your led spots adjustable/dimmable?
  • Are the bulbs in LED spotlights replaceable?
  • What brand are your LED spots?
  • What if I buy an LED spot now and it breaks in 8 years, what will replace it?
  • Do led spots require a service hatch?
  • How much depth do led spots require?
  • Are spots chainable?
  • Led spots can be selected with 12-24V or 230V transformer, what?

Zigbee CCT transformers

Zigbee CCT Products that you can use when you want stepless CCT control.

The luminaire is ordered without its own transformer and a group transformer is selected for CCT spots or CCT panels, as well as for CCT led strip lighting.

The transformer size for spots and panels is calculated by adding up the Watts + 25%.

For the CCT led strip, a 15% margin is sufficient.

e.g. 4x 9W CCT spot = 45W, so the closest is 50W

RF CCT transformers

RF CCT Products that you can use when you want stepless CCT control. The luminaire is ordered without its own transformer and a group transformer is selected for CCT spotlights or CCT panels, as well as for CCT led strip lighting.

The transformer size for spots and panels is calculated by adding up the Watts + 25%.

For the CCT led strip, a 15% margin is sufficient.

DALI2 (DT8) CCT transformers

DALI2 CCT Products you can use when you want stepless CCT control.

The luminaire is ordered without its own transformer and a group transformer is selected for CCT spots or CCT panels, as well as for CCT led strip lighting.

The transformer size for spots and panels is calculated by adding up the Watts + 25%.

For the CCT led strip, a 15% margin is sufficient.

e.g. 4x 9W CCT spot = 45W, so the closest is 50W

CCT wire harnesses

With our wiring harnesses you can quickly and reliably install CCT spots and CCT panels directly on one transformer. All luminaires are installed in parallel on the same transformer.

The spots come standard with a 15cm connecting cable with a connector, so you can easily create your own set with these wires.

with 3m spacer cables you can put even 2 in a row. All connection points have IP54 tight draught proofing.

In the distribution boxes (3 and 6) it is not mandatory to install a lamp on each connector.

WHAT IS CRI, THE COLOUR RENDERING INDEX

High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.

CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.

Mikä on CRI, eli Värintoisto indeksi

Colour rendering index

The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.

RA value

The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.



The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.

Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.

Tämä mittaustulos on 9W CCT Led spotista

This measurement is from a 9W CCT Led spot

Read more on this topic:

Colour rendering of LEDs - What is the difference between CRI and Ra-value?

CCT CONTROLLABLE PRODUCT has won gold and bronze medals in two international design competitions in 2023!

Janne Halttu has been developing his own product family since the beginning of the company. Throughout the product development process, his own experience in building houses and installing lighting has been at the top of the list of requirements. The requirement list for CCT spotlights with colour temperature control included the following features:

  1. High quality - All parts of the luminaire are finished down to the connectors.
  2. High light quality - The LED circuitry of the luminaires has a very high colour rendering, CRI98!
  3. Smart home capability - Connectable to smart lighting management systems such as Zigbee, DALI2 without the need for a dedicated base transformer
  4. Quick to install - The luminaire has a quick connector for a Basic transformer, a pre-terminated connecting cable or a harness
  5. Minimum 600 Lumens - The luminaire has a removable opal which has the function of reducing the glare of the luminaire. By removing the lens, the light output can be increased by 10-15%
  6. Up to 55 mm high luminaire - The luminaire must fit into a standard Finnish ceiling structure consisting of 49x49 mm batten + 13 mm plasterboard.
  7. Small size transformer - The standard transformer of the luminaire can fit through the mounting hole of the luminaire.
  8. TRIAC dimmable - The basic transformer of the luminaire is TRIAC dimmable.
  9. Chainable - The standard transformer of the luminaire is chainable
  10. Long life - The luminaire has a burn time of +50,000 hours and a 7 year warranty
  11. Modular body - The luminaire's heat sink is a standard size spiral LED module which is interchangeable. We always use the same LED module in as many products as possible to make it environmentally friendly.
  12. Sustainability - The components of the luminaires must be able to be bought later.

LedStore's innovative CCT led family of luminaires has been entered in both the International Architecture & Design Awards 2023 and the A'Design Award 2023!

The results were gold and bronze in the lighting design category!

WINNING INNOVATION IN PARTS

CCT led valasimen räjäytyskuva

All of the above are features of CCT spots. For example, we still have in stock LED circuits from products manufactured 10 years ago. This way, the customer is assured of a long availability of spare parts. The CCT led luminaire product family was initially launched with 10 luminaires, but since then the family has expanded and evolved. Today, the family consists of 55 products:

  • 35 different CCT led spots, the development of which started in 2018 and the family has been launched in 2019
  • 10 different CCT Led panels, development started in 2019 and the family has been launched in 2020
  • 10 different CCT Led strip lights, which started development in 2019 and will be released in 2020

All-in-one system. Choose your CCT adjustable led luminaire of your choice. All products have high quality: colour rendering CRI 98 and a 5-7 year warranty.

WHAT IS THE REAL INNOVATION HERE?

There have been CCT lights on the market for a few years now, but all of them have used only pre-fixed switches, with a CRI of around 80. These products have also often been made of plastic, or thin sheet metal, with poor colour rendering. It's okay for customers to be free to choose the shade of light during installation, but why stop there?

"I wanted to make sure that when the interior changes, when new art is added to the wall or the carpet changes colour, the luminaires always bring out the best in the objects. So I designed a whole range of down lights that are beautiful, long-lasting, freely usable in any smart lighting system and with the highest possible lighting quality, CRI98. The luminaires are easy to install, and because they are low-voltage and have plug n play connectors, so no compromises!"

- Janne Halttu

TWO INSTALLATION METHODS

Basic:

Standard, where the luminaire comes with a transformer with a 3-position switch. The switch allows you to select a light temperature of 2900K/4000/5500K at the installation stage. The luminaire is TRIAC dimmable. The Led luminaires can be installed in chains.

Customizable:

Freely selectable from 2900-5500K. Selection is done by the desired lighting control system such as ZIgbee, DALI2, Z-Wave, etc. All lights are 24VDC parallel connected. Easy to add/remove Led lights. That is, the luminaire is purchased "Without its own transformer" and the luminaires are connected in parallel to one group transformer. This way all the luminaires behind the transformer are controlled by one single group and the CCT colour temperature of the luminaires can be freely adjusted and dimmed.

ACCESSORIES FOR THE PRODUCT FAMILY

The CCT product family also includes a complete IP54, pull-protected cabling kit with a 3 metre intermediate cable, and a choice of 3-piece or 6-piece splitter.

You can also use your own 3 pole cable for installation.

WHAT IS A COLOUR TEMPERATURE ADJUSTABLE LUMINAIRE?

A CCT-led light is a luminaire that allows you to change the colour temperature of white light. The range depends on the led luminaire, but can be as low as 2500K - 6500K.

The changes in colour temperature, which are clearly visible to the eye, range from yellowish light to bluish light. A temperature-controlled LED light changes the hue of the light so that the luminaire itself always has two LED circuits in parallel; cold and warm.

When the mixing ratio of the two is changed with a control, the colour temperature of the light changes. In addition to the possibility of changing the colour temperature of the light, the luminaires are dimmable.

Different materials and colours react differently to different light spectrums. It is very important to find the right colour temperature to suit your needs.

Read more on this topic:

Adjusting the colour temperature of spotlights, even according to the seasons

CCT adjustable led strip light

Janne Halttu

LedStore.fi entrepreneur who has built 4 detached houses for his family and renovated several properties. With 20 years of experience in construction, I have gained a lot of knowledge about structures and electrical work for several houses. I have been working with Led lighting for over 10 years. I am an expert in Led lighting, I write articles and I am a lighting designer. I often help clients with electrical and structural issues related to lighting and house construction.
