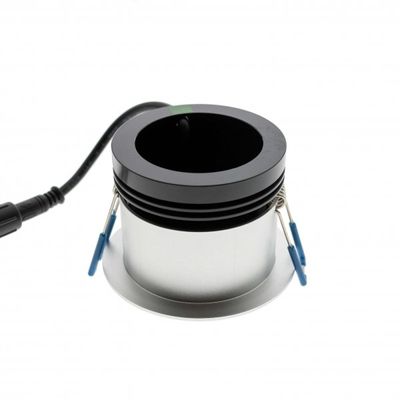

LED downlight — ROUND 023, IP54, CCT 2700-4000-5300K adjustable & dimmable 15W, SILVER, high CRI98

LED PYÖREÄ 023 (silver) is dimmable and moisture-proof, also from the back (IP54). As LED circuit we use high quality Citizen LED circuits with a colour rendering index (CRI) of 98 (full spectrum!) and the colours are reproduced as they should be. In the luminaire, the light comes beautifully from a single point. The luminaire is also available in black and white.

The LED PYRERE 023 is suitable for general lighting applications from private homes to public spaces. The LED PYÖREÄ 023 has a light output equivalent to at least 75W halogen, +1000 Lumen. The luminaire is equipped with a light-balancing glass lens.

A 9W version is also available for basic use.

The luminaire has an adjustable light temperature of 2700-4000-5300K with a switch on the side of the transformer, so you can choose the right colour for your interior. Even change according to the seasons! If you want to adjust the light wirelessly without a ladder, you need a VaLO transformer and a wireless button.

The luminaire is IP54, which means it is splash-proof. The transformer of the luminaire is not moisture-proof, but can withstand outdoor use in eaves.

LED PYRE GREEN 023 is a flush mount luminaire in cast aluminium with the LED circuitry mounted directly on the body. The solution achieves maximum thermal conductivity and safe operating temperature (below 50 degrees Celsius). The low operating temperature and the high quality LED circuit guarantees a long lifetime of 50,000h and we grant a 7 year warranty on our manufactured luminaire!

The LED module of the luminaire is removable and replaceable.

<img src="{{media url="wysiwyg/Led_Spotit.png"}}" alt="Led Spotlights" />

Click here for installation examples and photos

Installation

The luminaire is fixed, i.e. it is not directional. The luminaire is very low, only 50mm high! The luminaire will therefore fit into a typical roof structure with only 48x48mm of insulation and 13mm plasterboard under the vapour barrier. We recommend installing a piece of board or plasterboard above the luminaire to prevent the insulation from sagging. The diameter of the mounting hole is 66mm.

Each luminaire is supplied with its own chained power supply which fits through the mounting hole into the mounting space. By moving the power supply away from the luminaire, we prevent the power supply from heating up the luminaire, as well as being able to keep the size of the luminaire small. The power supplies are long-lived and this also allows us to avoid the typical problem with halogen lamps, where one power supply is subjected to a heavy load and gets hot, and breaks the luminaire. There is a quick connector between the luminaire and the power supply to facilitate installation. The colour temperature of the light is changed by a switch on the transformer

Dimming

The luminaire can be dimmed with a wireless dimmer or TRIAC dimmers, from the ENSIO side, and they also work with home automation such as KNX. Suitable dimmers can also be ordered from us, "Led dimmers"

They work well for example:

• ABB (former Ensto) Jussi 6523U
• Schneider (ex strömfors) transistor controller 315W/VA (EXXACT)!
• VaLO Triac dimmer with remote control option

All our luminaires are CE and RoHS approved.
