LED downlight — LINJA 5 CCT, color temperature adjustable, IP44, dimmable 5x2W, matte white/black, high CRI94

Superior technology

LED LINJA 5 (matt white, black interior) is color temperature adjustable, dimmable and moisture-proof (IP44). With a colour rendering index (CRI) of more than 94, the colours in your interior will look natural. The luminous intensity is equivalent to 5x20W halogen, with a consumption of only 5x2W!

The LED LINJA 5 has a very narrow opening angle of only 20 degrees and is therefore typically used in high spaces and to create decorative light, e.g. in front of wardrobes or in corridors. Linja 5 is perfect for narrow-angle lighting indoors, for example as accent lighting for wall surfaces and paintings, in corridors and for those looking for narrow-angle general lighting. Outside, it can be used for outdoor lighting such as patio ceilings and eaves.

The white edge of the frame is 7mm wide and the light sources are 10mm deep in square black light holes.

LED LINJA 5 is a recessed luminaire in cast aluminium, with the LED circuitry mounted directly on the frame. The solution achieves maximum thermal conductivity and safe operating temperature (below 50 degrees Celsius). The low operating temperature guarantees a long lifetime, 50,000 and we grant a 5 year warranty on our manufactured luminaire! The luminaire is also available in 2x2W and 10x2W models.

Led luminaire installation

The luminaire is very low, only 50mm high! The luminaire will therefore fit into a typical roof structure with only 48x48mm of insulation and 13mm plasterboard under the vapour barrier. We recommend installing a board or piece of plasterboard above the luminaire to prevent the insulation from sagging. The mounting hole is 34x136mm.

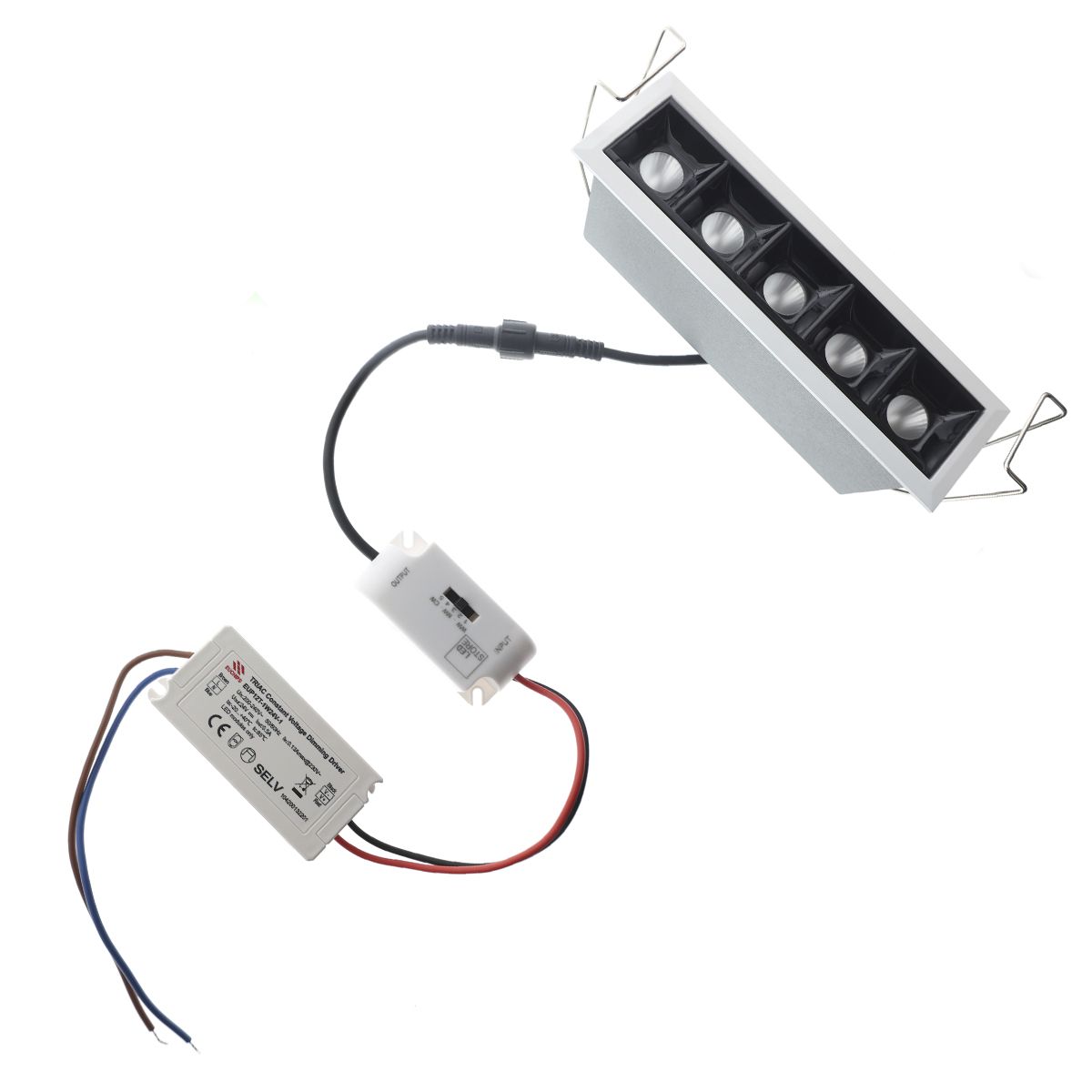

Each luminaire is supplied with its own power supply to fit through the mounting hole into the mounting space. By moving the power supply away from the luminaire, we prevent the power supply from heating up the luminaire, and we are able to keep the size of the luminaire small. The power supplies are long-lived and this also allows us to avoid the typical problem with halogen lamps, where one power supply is subjected to a heavy load and gets hot, and breaks the luminaire. There is a quick connector between the luminaire and the power supply to facilitate installation.

Dimming

The luminaire can be dimmed with a wireless dimmer or TRIAC dimmers, from the ENSIO side, and they also work with home automation systems such as KNX, Talomatti, etc. You can also order suitable dimmers from us, "Led dimmers"

They work very well for example:

• ABB (former Ensto) Jussi 6523U
• Schneider (ex strömfors) transistor controller 315W/VA EXXACT

All our lamps are CE and RoHS approved.
